PRODUCT NAME :
MODEL NAME
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
LG Innotek Co., Ltd.
26, Hanamsandan 5beon-ro, Gwangsan-gu, Gwangju, 506-731, Korea
User Manual
RF Module
:
ETWFAEWC01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETWFAEWC01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG Innotek ETWFAEWC01

Summary of Contents for LG Innotek ETWFAEWC01

  • Page 1 RF Module MODEL NAME ETWFAEWC01 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. LG Innotek Co., Ltd.

  • Page 2: Table Of Contents

    DOCUMENT No. : WC40154 User Manual REG. DATE : 2020.04.09 REV. NO : v1.0 MODEL NAME : ETWFAEWC01 REV. DATE : 2020.04.09 1 / 7 PAGE : Table of Contents Description Page Features Picture of Product Block Diagram Absolute Maximum Ratings...

  • Page 3: Features

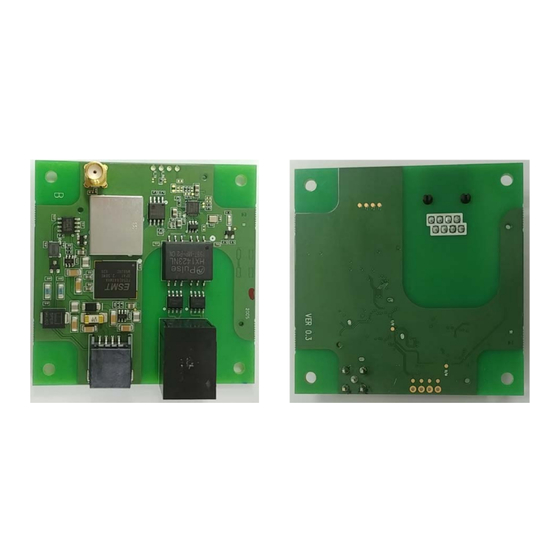

    REV. DATE : 2020.04.09 2 / 7 PAGE : 1. Features ETWFAEWC01 is the module for IEEE 802.11b/g/n wireless LAN. ETWFAEWC01 is based on ESP32-D0WDQ6 solution.  IEEE 802.11 b/g/n single band WLAN infrastructure  Size : 70mm x 70mm x 15mm ...

  • Page 4: Block Diagram

    DOCUMENT No. : WC40154 User Manual REG. DATE : 2020.04.09 REV. NO : v1.0 MODEL NAME : ETWFAEWC01 REV. DATE : 2020.04.09 3 / 7 PAGE : 3. Block Diagram 4. Absolute Maximum Ratings Parameter Unit ℃ Storage Temperature Storage Humidity (@ 40℃)

  • Page 5: Operating Test Conditions

    DOCUMENT No. : WC40154 User Manual REG. DATE : 2020.04.09 REV. NO : v1.0 MODEL NAME : ETWFAEWC01 REV. DATE : 2020.04.09 4 / 7 PAGE : 5. Operating Test Conditions Parameter Unit ℃ Operating Temperature Operating Humidity (40℃) Supply Voltage 10.8...

  • Page 6: Pin Description

    DOCUMENT No. : WC40154 User Manual REG. DATE : 2020.04.09 REV. NO : v1.0 MODEL NAME : ETWFAEWC01 REV. DATE : 2020.04.09 5 / 7 PAGE : 7. Pin Description Connector Pin No. Pin Name Pin Description Ground Power Supply...

  • Page 7: Outline Drawing

    DOCUMENT No. : WC40154 User Manual REG. DATE : 2020.04.09 REV. NO : v1.0 MODEL NAME : ETWFAEWC01 REV. DATE : 2020.04.09 6 / 7 PAGE : 8. Outline Drawing ©2020 LGIT. All rights reserved.

  • Page 8: Packing Information

    DOCUMENT No. : WC40154 User Manual REG. DATE : 2020.04.09 REV. NO : v1.0 MODEL NAME : ETWFAEWC01 REV. DATE : 2020.04.09 7 / 7 PAGE : 9. Packing Information FIFO Label BARCODE Label NOT FULL Label '20. 03. 06 Kap Soul.
  • Page 9 DOCUMENT No. : WC40154 User Manual REG. DATE : 2020.04.09 REV. NO : v1.0 MODEL NAME : ETWFAEWC01 REV. DATE : 2020.04.09 8 / 7 PAGE : 10. FCC/IC Statement FCC Part 15.19 Statements: This device complies with Part 15 of the FCC Rules. Operation...
