Summary of Contents for AQUATONE Blast

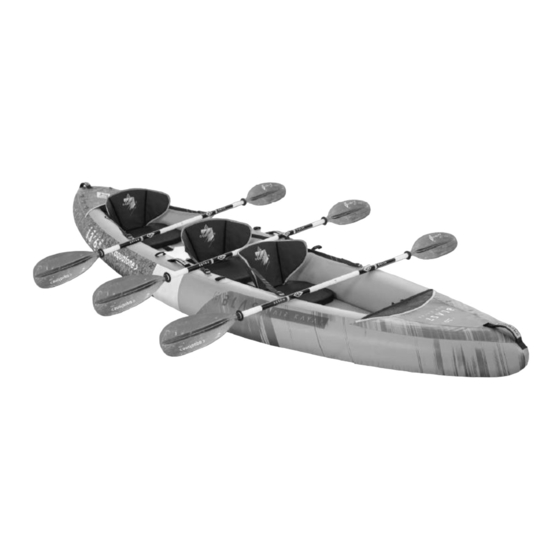

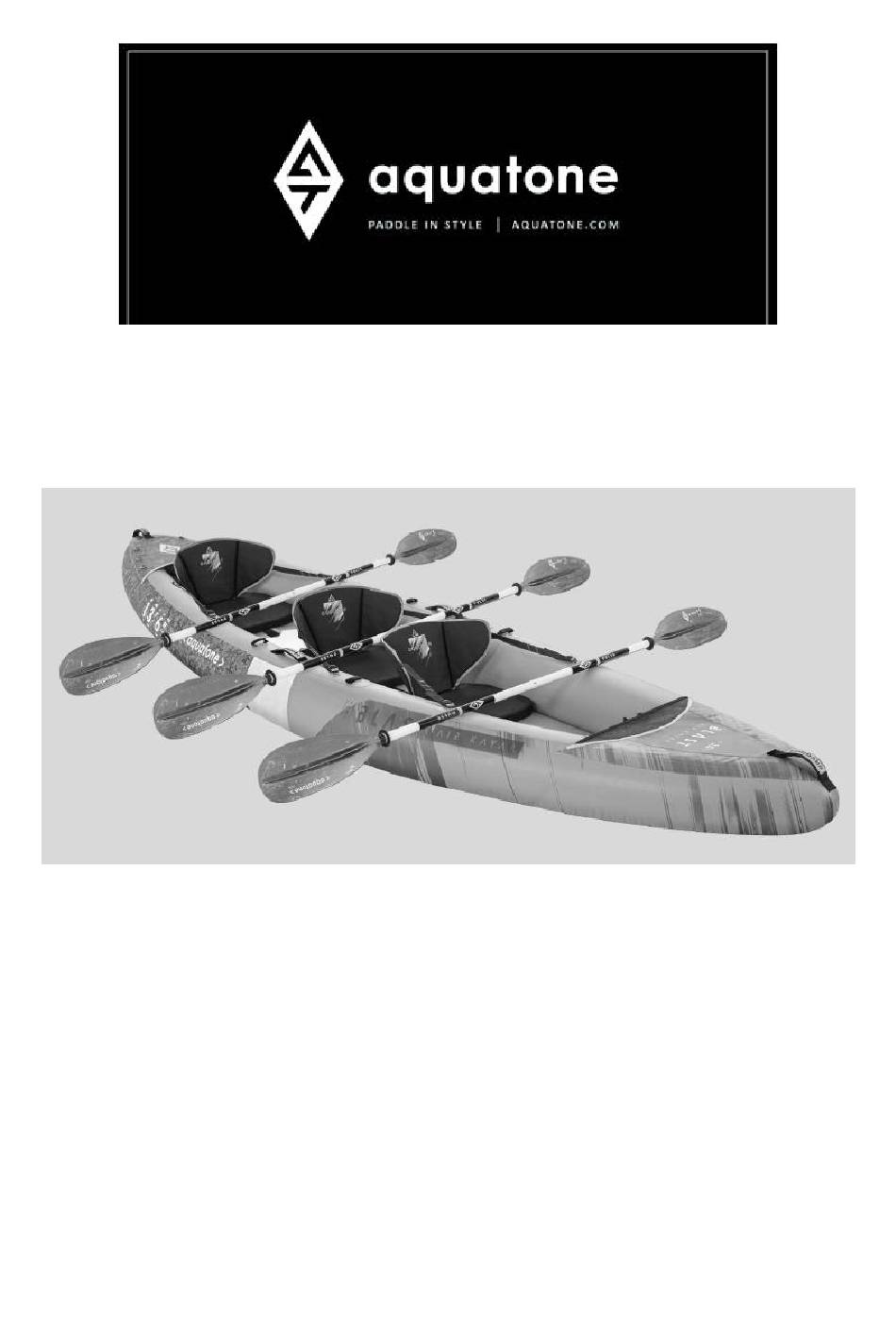

- Page 1 USER MANUAL – EN TK-200, TK-201 Inflatable kayak Aquatone Blast 12'0" / 13'6"...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT INFORMATION ......................... 3 IDENTIFIACTION CARD ......................... 3 PARTS LIST ............................4 SAFETY INSTRUCTIONS ........................5 BEFORE INFLATION ..........................5 PUMP USE .............................. 6 DECK INFLATION ........................... 6 INFLATION OF THE SIDES ........................7 SEAT ATTACHMENT .......................... 7 FINS ATTACHEMENT ..........................8 PADDLE ASSEMBLY .......................... -
Page 3: Important Information
Thank you for purchasing the product. Our kayaks are made to the highest safety requirements. We believe that you will be satisfied with the purchased product. Read the manual before use to use the product as efficiently as possible. We wish you many years of enjoyment and good experience with our kayaks. -
Page 4: Parts List
PARTS LIST Handles Water splash guard Saddle attachment Velcro paddle holders Velcro deck saddle holder High pressure deck surface High pressure valves, max. Side pressure 3 Psi / 0.2 Bar, max. Deck pressure 5 Psi / 0.33 Bar 6-point cargo bungee cord system Bailing valves 4-piece aluminum paddle PULSE Double-acting hand pump... -
Page 5: Safety Instructions
You should use your best judgement as to when and where to use your board. All users of an Aquatone board agree to assume all responsibilities for any damage or injury, including death, which may result from using or handling a SUP. -
Page 6: Pump Use
Air out PUMP USE Attach the hose to the pump and kayak. Aquatone pump is equipped with two inflation modes: • Double action mode: initial inflation of the kayak, air flows into the kayak during pumping when moving up and down - the air valve is closed •... -
Page 7: Inflation Of The Sides
INFLATION OF THE SIDES After inserting the deck, inflate the sides to a maximum of 3 Psi / 0.2 Bar. SEAT ATTACHMENT Attach the seats to the deck. Align the Velcro strap seats with the Velcro straps on the kayak deck. Then secure the seats with nylon straps to the sides of the kayak. -
Page 8: Fins Attachement
FINS ATTACHEMENT Turn the kayak to the side. Slide the lock plate from left to right. The tip of the fin must point towards the end of the kayak. Make sure that the fin is properly secured, you should hear a click when the lock plate is inserted. -
Page 9: Kayak Deflation
KAYAK DEFLATION Slowly press the pin, the initial air burst out then the air flow slows down. Once the airflow has Before deflation, clean the valve of dirt. slowed down, you can push the pin all the way in and turn it counterclockwise to the OPEN position. -
Page 10: Care, Maintenance And Storage
CARE, MAINTENANCE AND STORAGE • Open the drain valves in the middle and on the back of the kayak. Tilt the kayak so that there is no excess water in it. • Clean the kayak, clean the bottom and seats with water or soap and water after each use so that it is not damaged by sand, sun, and salt water. -
Page 11: Valve Leak Through The Middle Part
VALVE LEAK THROUGH THE MIDDLE PART Contact your supplier, possibly damaged valve. PUNCURE ON THE KAYAK SURFACE OR AIR CHAMBERS Locate the puncture. Deflate the kayak completely. Clean and dry the punctured area. Select the same patch material. Cut out the required part of the patch. Apply glue for soft PVC materials. -
Page 12: Terms And Conditions Of Warranty, Warranty Claims
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated here under determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 89/2012 Coll. Civil Code, and Act No. - Page 13 If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller is eligible to require a compensation for all the costs arising from the repair. The cost shall be calculated according to the valid price list of services and transport costs.
