EX-GERAETE

Technical Documentation

TT-107IU

15.05.2012

Table of Contents

Need help?

Do you have a question about the TT-107IU and is the answer not in the manual?

Questions and answers

Summary of Contents for E.L.B. TT-107IU

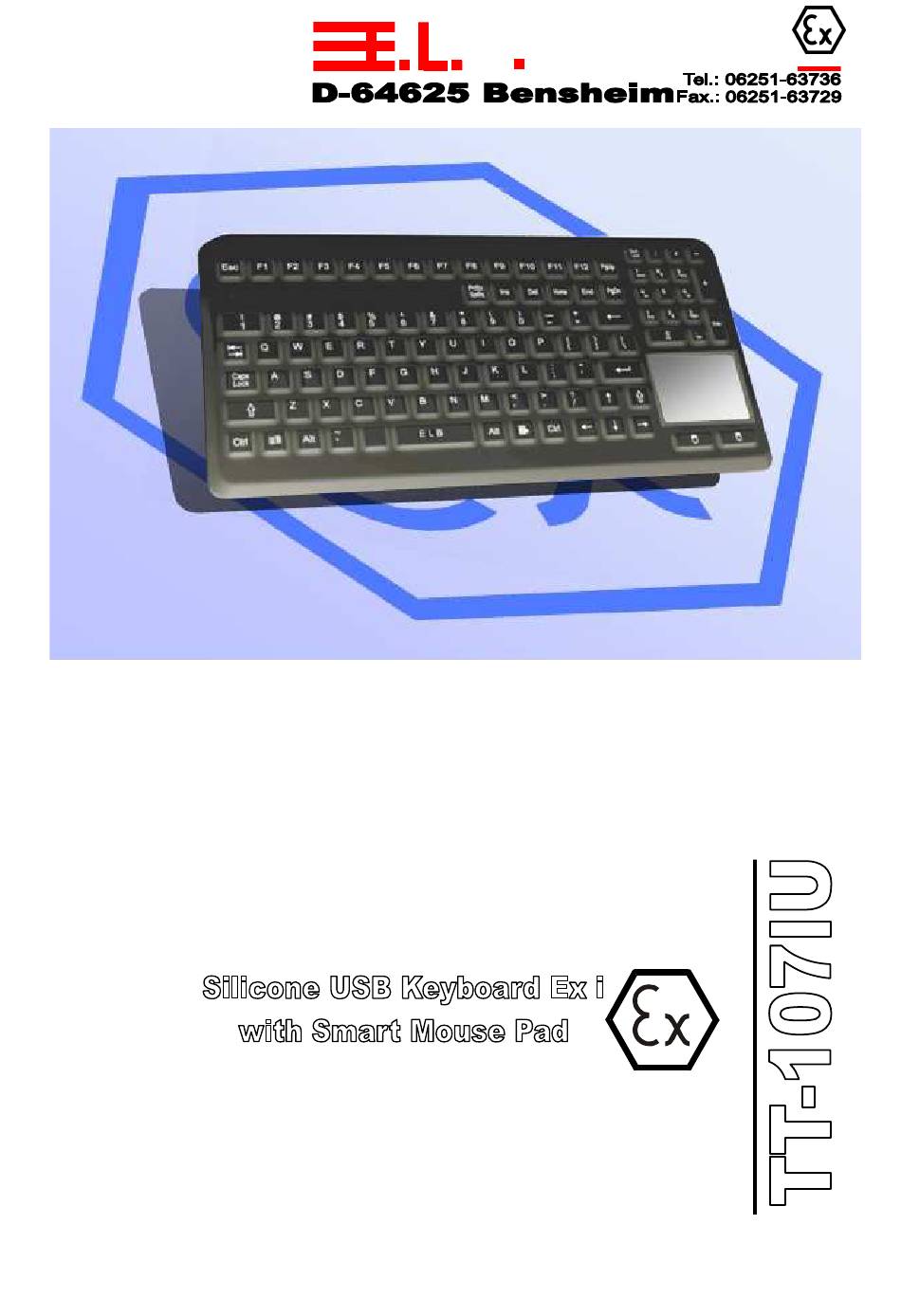

Page 1 EX-GERAETE Technical Documentation TT-107IU 15.05.2012...
Page 2: Table Of Contents
TT-107IU Silicone Keyboard Technical Documentation Operating Instructions Contents Page In Short ..................... 3 Delivery Components ................3 Handling Hints ................... 3 Marking for Hazardous areas ..............6 Intrinsic Safe Supply and Data Transmission ..........7 Order examples ..................7 - 8 General Data 6.1 Current Consumption ..............
Page 3: In Short
• Dust and water proof, e.g. IP 68 (immersion) • Suitable intrinsically safe interface and supply available (W...-Q) Delivery components Delivery includes: Keyboard TT-107IU (available in black only) Manual Handling hints Installation Keyboard and mouse pad install themselves automatically on your PC as “HIDs”...
Page 4 TT-107IU Silicone Keyboard Technical Documentation Handling of the mouse pad The mouse pad detects the position of a finger by capacitance scanning. This works even with rubber-gloves for single use, but not with usual working gloves. If you cannot do without working gloves, please help yourself with a metal tool with a big and flat bottom, covered by a sticking tape to protect the mouse pad from being scratched.
Page 5 TT-107IU Silicone Keyboard Technical Documentation 3. Sliding over the mouse pad - with one finger a) Inside of the pad area Sliding of one finger over the mouse pad moves the mouse pointer like moving of a usual mouse does.
Page 6: Marking For Hazardous Areas
ΣL ≤ 1 µH TT-107IU must be supplied by an ATEX certified intrinsically safe supply, which fits to the electrical data listed above. This is valid for the dust atmosphere models too. We recommend the USB-supply series W...-Q, which is meant for operating inside of gas hazardous areas.
Page 7: Intrinsic Safe Supply And Data Transmission
TT-107IU Silicone Keyboard Technical Documentation Connection examples for supply by W...-Q 1. Gas areas Hazardous area Safe area Intrins. safe Keyboard TT-107IU supply W...-Q More information in the separate W...-Q manual. Plugging and unplugging inside of hazardous gas areas is allowed because of sufficiently low inner capacities.
Page 8: General Data
TT-107IU Silicone Keyboard Technical Documentation WR-Q 005 U Intrinsically safe supply with 50 cm cable and USB plug moulded with the cable USock1 Lockable built-in metal socket for WR-Q 005; must be isolated from metal enclosure walls USock2 Lockable built-in plastic socket for WR-Q 005;...
Page 9: Extension Cables
Tall seas / strong water beam IP...8: Total immersion TT-107IU: 1 hour at 1 m below water surface Wall thickness is generally more than 5 mm, but much less around the keys and above of the lamps (under the keys “Num” and “ “and between the keys “Esc”...
Page 10: Appendix 7 Safety Advices
TT-107IU Silicone Keyboard Technical Documentation Appendix Safety Advices Keyboard surface The silicone case wall is generally thicker than 5 mm, but much less around the keys and above of the lamps (under the keys “Num” and “ “and between the keys “Esc” and “1”). Even hardly visible damages may decrease the IP protection here and make the dust protection become invalid.
Page 11: Liability
We hereby confirm the conformity of the equipment listed below with the directives of the Council of the European Community. The safety and installation instructions of the product documentation must be observed. Model: Silicone USB keyboard with mouse pad TT-107IU Directive: EMC Directive 2004/108/EG European Standards:...
Page 12: Certificate
TT-107IU Silicone Keyboard Technical Documentation certificates 15.05.2012 © E.L.B. Ex-Geraete Bachmann GmbH Page 12...
