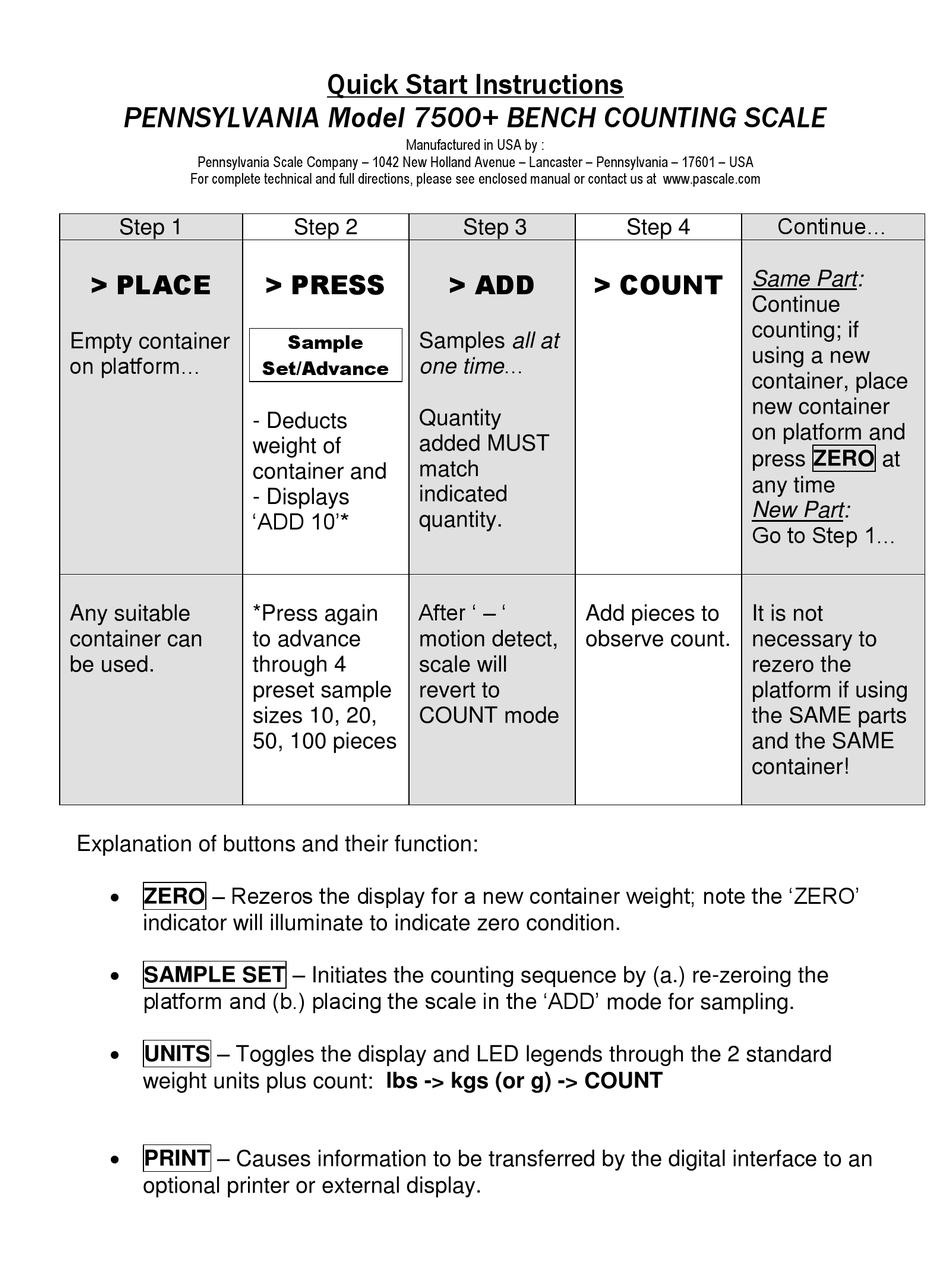

Pennsylvania 7500 Plus Quick Start Instructions

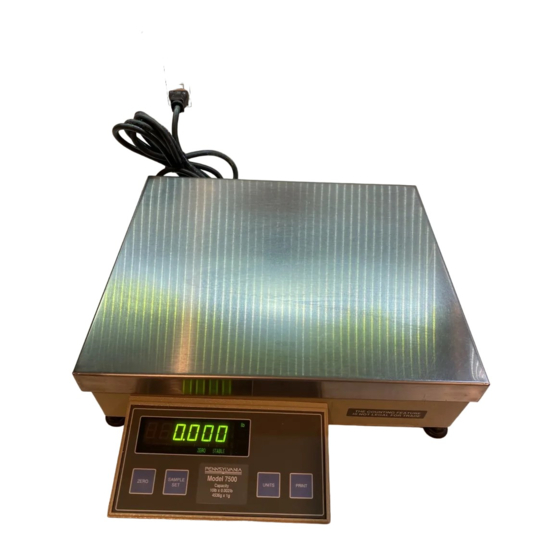

PENNSYLVANIA Model 7500+ BENCH COUNTING SCALE
Pennsylvania Scale Company – 1042 New Holland Avenue – Lancaster – Pennsylvania – 17601 – USA
For complete technical and full directions, please see enclosed manual or contact us at www.pascale.com
Step 1
> PLACE
Empty container
on platform...
Any suitable
container can
be used.
Explanation of buttons and their function:

ZERO – Rezeros the display for a new container weight; note the 'ZERO'
indicator will illuminate to indicate zero condition.

SAMPLE SET – Initiates the counting sequence by (a.) re-zeroing the
platform and (b.) placing the scale in the 'ADD' mode for sampling.

UNITS – Toggles the display and LED legends through the 2 standard
weight units plus count: lbs -> kgs (or g) -> COUNT

PRINT – Causes information to be transferred by the digital interface to an
optional printer or external display.
Quick Start Instructions
Manufactured in USA by :
Step 2
> PRESS
Sample
Samples all at
Set/Advance
one time...
Quantity
- Deducts
added MUST
weight of
match
container and
indicated
- Displays
'ADD 10'*
quantity.
After ' – '
*Press again
to advance motion detect,
through 4 scale will
preset sample revert to
sizes 10, 20, COUNT mode
50, 100 pieces
Step 3 Step 4
> ADD > COUNT
Add pieces to
observe count.
Continue...
Same Part:
Continue
counting; if
using a new
container, place
new container
on platform and
press ZERO at
any time
New Part:
Go to Step 1...
It is not
necessary to
rezero the
platform if using
the SAME parts
and the SAME
container!
