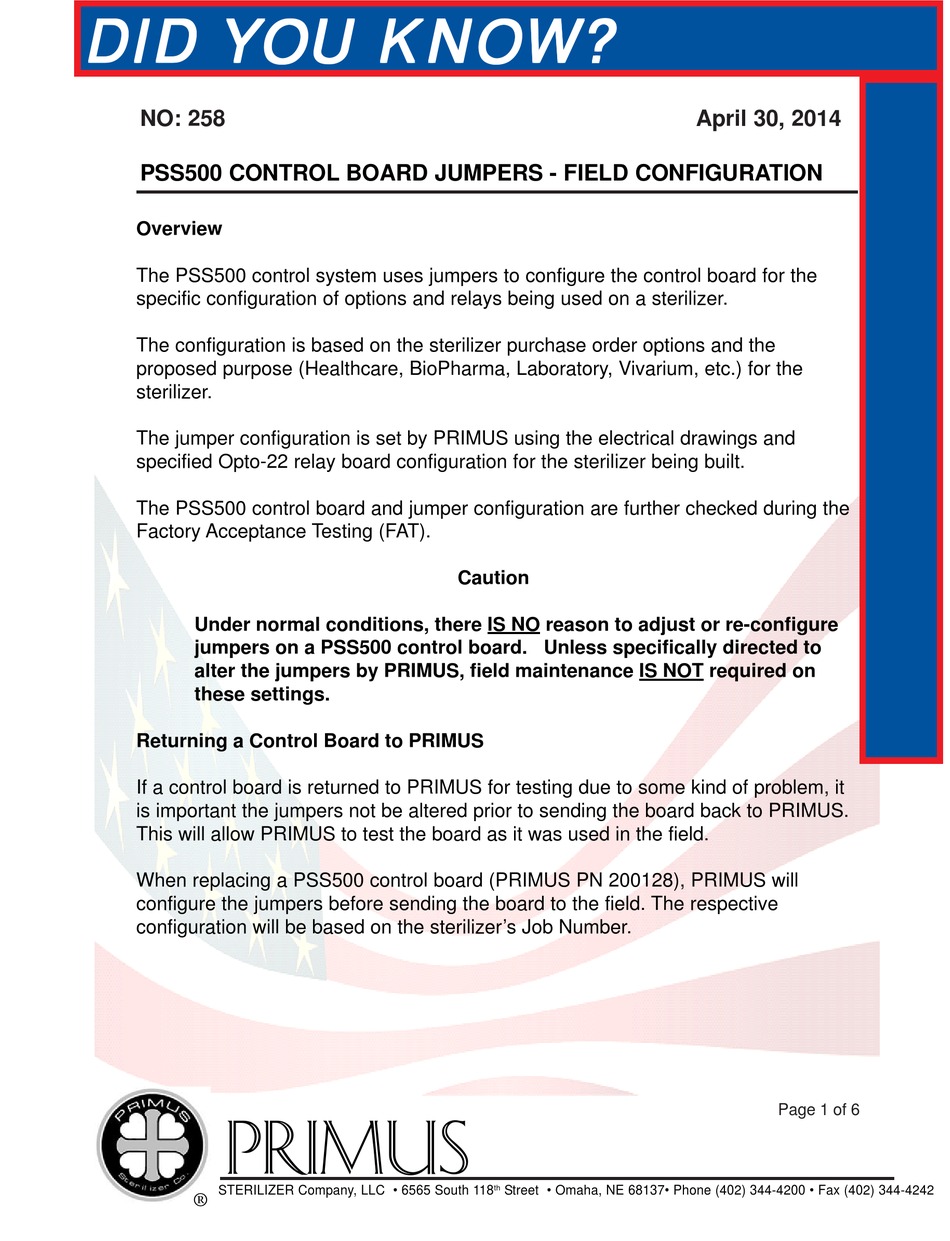

PSS500 CONTROL BOARD JUMPERS - FIELD CONFIGURATION

Overview

The PSS500 control system uses jumpers to configure the control board for the
specific configuration of options and relays being used on a sterilizer.
The configuration is based on the sterilizer purchase order options and the
proposed purpose (Healthcare, BioPharma, Laboratory, Vivarium, etc.) for the
sterilizer.
The jumper configuration is set by PRIMUS using the electrical drawings and
specified Opto-22 relay board configuration for the sterilizer being built.
The PSS500 control board and jumper configuration are further checked during the
Factory Acceptance Testing (FAT).
Under normal conditions, there IS NO reason to adjust or re-configure
jumpers on a PSS500 control board. Unless specifically directed to
alter the jumpers by PRIMUS, field maintenance IS NOT required on
these settings.

Returning a Control Board to PRIMUS

If a control board is returned to PRIMUS for testing due to some kind of problem, it
is important the jumpers not be altered prior to sending the board back to PRIMUS.
This will allow PRIMUS to test the board as it was used in the field.
When replacing a PSS500 control board (PRIMUS PN 200128), PRIMUS will
configure the jumpers before sending the board to the field. The respective
configuration will be based on the sterilizer's Job Number.
PRIMUS
