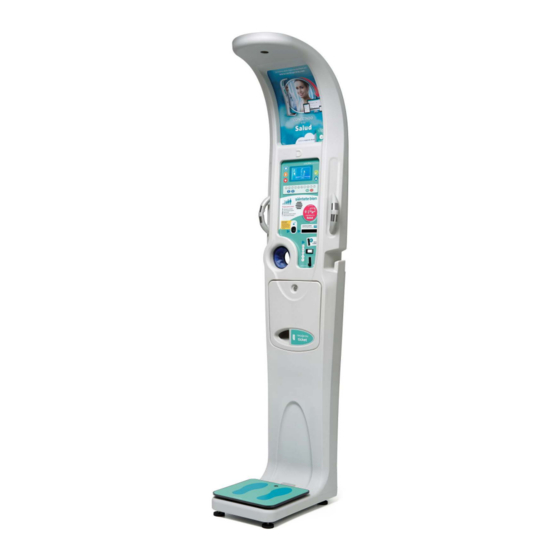

davicia cardio prime LCD Distributor Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

LCD

DISTRIBUTOR MANUAL

MA35-51/E

22/06/2016

0120

www.davicia.com

Table of Contents

Need help?

Do you have a question about the cardio prime LCD and is the answer not in the manual?

Questions and answers

Summary of Contents for davicia cardio prime LCD

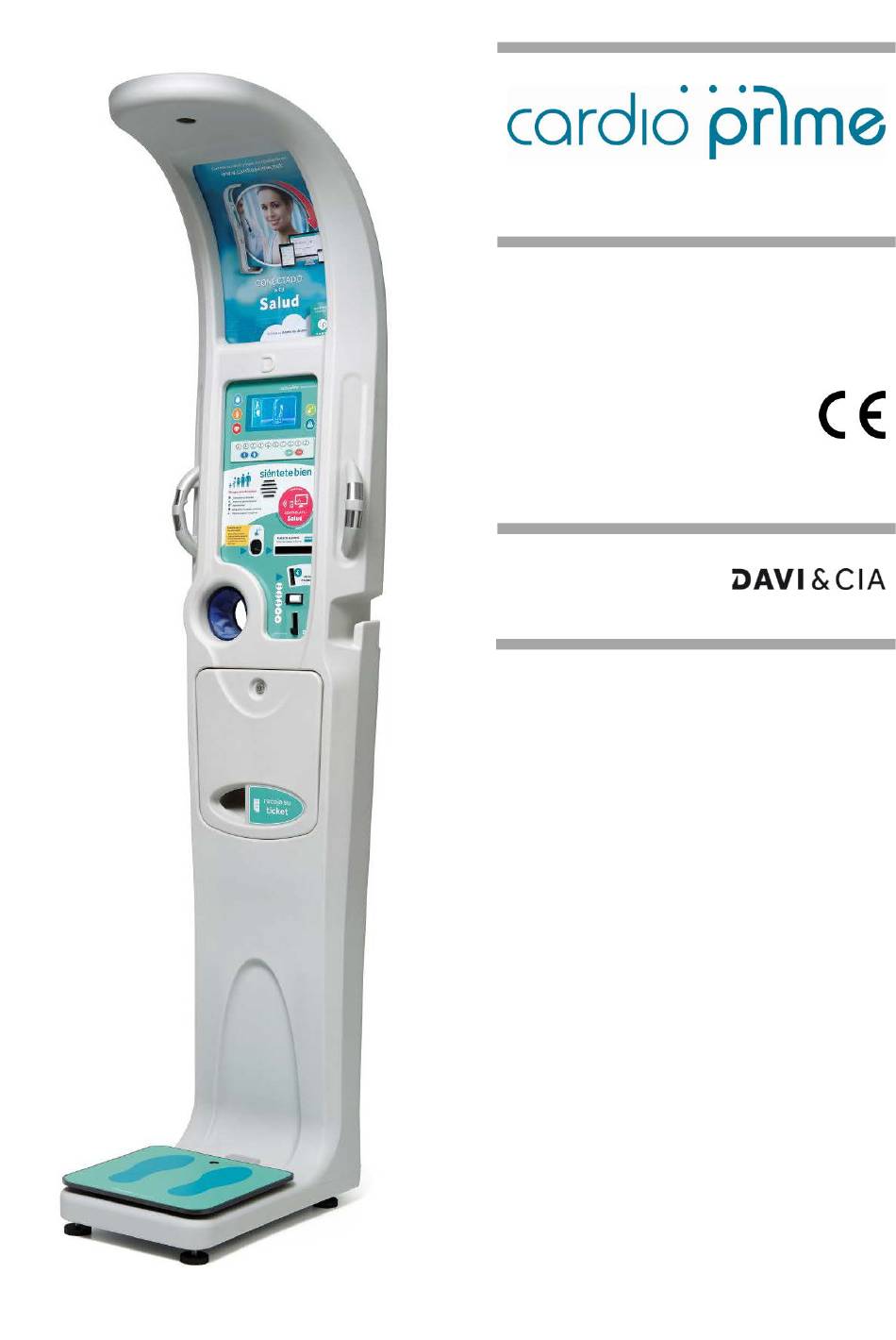

Page 1 DISTRIBUTOR MANUAL MA35-51/E 22/06/2016 0120 www.davicia.com...
Page 2: Table Of Contents
DISTRIBUTOR MANUAL MA35-51/E INDICE DESCRIPTION ........................... 4 INSTALLATION ......................... 5 2.1. LOCATION AND ENVIROMENT ....................... 5 2.2. STARTING UP THE APPLIANCE ........................ 5 OPERATION ..........................6 1.1. START ............................... 6 1.1.1. Warnings ............................... 6 1.1.2. Sex and age ............................6 1.2.
Page 3 DISTRIBUTOR MANUAL MA35-51/E 5.1.5. Vascular health test ..........................22 5.1.6. RS232 test ............................22 5.1.7. Audio test ............................22 5.1.8. Memories test ............................. 22 5.1.9. Printer test ............................22 5.1.10. Coin test ............................. 23 5.1.11. LEDs test ............................23 5.1.12. Power test............................23 5.1.13.
Page 4 DISTRIBUTOR MANUAL MA35-51/E...
Page 5: Description
DISTRIBUTOR MANUAL MA35-51/E 1. DESCRIPTION (1) Height sensor (9) Wrist bracelet (2) Advertising poster (10) Acess to the printer and coin drawer (3) LCD screen (11) Ticket exit (4) Loudspeaker (12) Baby scale atachment (option) (5) Body fat sensors (13) Technical service access (6) Vascular sensor (14) Switch and power (7) Barcode reader...
Page 6: Installation
DISTRIBUTOR MANUAL MA35-51/E 2. INSTALLATION The CARDIOPRIME multifunction appliance comes from the factory configured according to the voltage of each country and is ready to work as soon as it is unwrapped. 2.1. LOCATION AND ENVIROMENT Stand the appliance on a flat, level surface where it is firmly supported. This is essential for it to function correctly.
Page 7: Operation
DISTRIBUTOR MANUAL MA35-51/E 1. OPERATION After the appliance is turned on, the stand-by screen appears. This means that the scale has calibrated itself correctly and is ready to be used. 1.1. START While the scale is not in use (stand-by), the screen shows the watch (and a logotype according to the flags configuration).
Page 8: Weighing Children And Teenagers
DISTRIBUTOR MANUAL MA35-51/E NOTE: If the appliance detects an error in the height measurement or the HEIGHT flag is OFF, a screen appears to enter the height manually. 1.2.1. Weighing children and teenagers When users enter an age between 2 and 19 years old, the obtained results of WEIGHT and HEIGHT are shown on a chart of percentiles.
Page 9: Body Fat Index
DISTRIBUTOR MANUAL MA35-51/E 1.3. BODY FAT INDEX Limitations of use People affected by the following situations may present a degree of water retention and lower-than-average bone density, which may cause an imprecise calculation of the percentage of body fat. In these cases the appliance can’t offer a true indication of the percentage of body fat.
Page 10: Body Composition
DISTRIBUTOR MANUAL MA35-51/E Electrodes VERY IMPORTANT: The palms of the hands must make the best possible contact with the device’s electrodes. Press the electrodes firmly with the palm of your hands. The appliance will measure the RESISTANCE of the body using the 4 electrodes. If the contact with the electrodes isn’t right or you place your hands on the sensors incorrectly, the RESISTANCE value will not be correct, which may cause an imprecise calculation of the percentage of body fat.
Page 11: Vascular Health
DISTRIBUTOR MANUAL MA35-51/E 1.5. VASCULAR HEALTH Limitations of use The measurement of Vascular Health is not recommended for people affected by the following situations. In these cases the appliance can’t offer a true status indication of the Vascular Health. People with arrhythmia or other cardiac diseases People wearing artificial nails or manicure In addition, the following situations may cause an imprecise measurement of Vascular Health.
Page 12: Setting Up The Machine
DISTRIBUTOR MANUAL MA35-51/E 2. SETTING UP THE MACHINE 2.1. ACCESS TO THE SETTING MENU Keypad access IMPORTANT: Through the Switch number 4 we can enable or lock the external access by keypad. If the acces is blocked (OFF) we can only access to the distributor menu through the internal push-button. (1) Switch on the device CARDIOPRIME LCD (2) The autotest will start and after 5 seconds the machine will emit 4 ‘beeps’.
Page 13: Body Fat Adjustment
DISTRIBUTOR MANUAL MA35-51/E Offset Due to mechanical tolerances of the appliance, there may be deviations in the height adjustment. To correct these deviations, if there are any, the Offset must be configured. (1) Press OFFSET (2) Press the <1> and <5> buttons until you reach the value that corrects the deviation detected. (3) You can select an Offset value from -5 cm to 5 cm.
Page 14: Pressure Adjustment
DISTRIBUTOR MANUAL MA35-51/E 2.2.4. Pressure adjustment To adjust the pressure, follow these steps: (1) Disconnect the sensor tube to make sure there is no pressure and press any key (2) Insert the tube of the manometer into the sensor (3) Apply a pressure slightly greater than 200 mmHg (4) When the pressure starts to stabilize, press any key (5) Enter the applied pressure value.
Page 15: Programming The Machine
DISTRIBUTOR MANUAL MA35-51/E (2) Through the keyboard, enter the desired value option and verify it gets highlighted. The highlighted option corresponds to the function the communications port will do: NO COMMS Port without connection Port connected to a PC DAVI SERIAL Data sending through RS232 Port connected to an external printer (3) Press <STOP>...
Page 16: Programming The Language
DISTRIBUTOR MANUAL MA35-51/E Programming the time (1) Select <2> to adjust the time. (2) Enter the time in the order established (hours, minutes), with two digits for each date. IMPORTANT: The format for programming the time is a 24-hour clock. If you want to enter 4:26 pm, you must enter 1626.
Page 17: Programming The Audio
DISTRIBUTOR MANUAL MA35-51/E During the entering of the price, it is not necessary to enter decimal or currency symbols. The type of coin, as well as the number of decimals of the price, is established according to the settings. Press <STOP> if you want to modify the introduced amount. (3) Press <START>...
Page 18: Programming The Logos
DISTRIBUTOR MANUAL MA35-51/E WORK WITHOUT PAPER ON: When there is no paper in the printer, the appliance still works and shows a warning on the starting screen. OFF: The appliance shows an ERROR when there isn’t enough paper in the printer and this prevents the appliance from working.
Page 19: Programming The Advertising
DISTRIBUTOR MANUAL MA35-51/E (6) Enter the data that will appear in the selected line, with the alphanumeric keyboard. While writing, you can see in the screen the information of: Line number, column and the character type corresponding to the pressed key. To create a blank line, enter the character “white space”...
Page 20: Programming The Accounting
DISTRIBUTOR MANUAL MA35-51/E 2.3.10. Programming the accounting The shop number and location are used to identify the accounting tickets of different pieces of appliances. Shop number (1) Select the option SHOP NUMBER. (2) Select option <1> (3) Enter the shop number (4 digits maximmum). (4) Press <START>...
Page 21: Programming The Wi-Fi
DISTRIBUTOR MANUAL MA35-51/E (5) Press <START> to confirm the information. Programming the notifications It is possible to send SMS warnings by the appliance when it reaches the settled values for the different states:: COLLECTION Warning for the coins collection. From 0 to 9999 collected coins. PAPER LENGHT Warning for number of printed tickets.
Page 22: Ram Erasing
DISTRIBUTOR MANUAL MA35-51/E 2.3.15. RAM erasing This option resets all of the total and partial counters and sets all of the programmable fields at their default values (time, date, publicity, ticket, prices, etc.). (1) Press DELETE RAM (2) Enter the code 0000 (3) Press <START>...
Page 23: Height Test
DISTRIBUTOR MANUAL MA35-51/E 4. Press WEIGHT 5. Place different mass values on the platform and check that the mass value matches the appliance’s reading. On one side, the screen shows the weight value in divisions of 1 g. On the other side, it shows the value as it appears on the screen, in divisions of 100 g.
Page 24: Coin Test
DISTRIBUTOR MANUAL MA35-51/E Paper / Lever This test does a continuous check of the state of the paper sensor and the printer lever. 5.1.10. Coin test To verify that the coin checker works, insert a coin and check that the channel number and value of the coin match the reading on the appliance.
Page 25: Display Test
DISTRIBUTOR MANUAL MA35-51/E 5.1.19. Display test (1) Select option <1> (2) Make sure the screen is filled from left to right with a dots pattern (3) Press <START> to finish the test. (4) Press <STOP> to exit. 5.1.20. Status state The display shows the EPROM information: EPROM type, checksum, version date and appliance serial number.
Page 26 DISTRIBUTOR MANUAL MA35-51/E AD converter failure Wiring and/or crimping cell failure HEIGHT Height sensor failure Height measurement circuit failure Failure in the wiring between the BASE_14 and the measurement circuit +12V power supply failure HEIGHT: COMMUNICATIONS Height measurement circuit failure Failure in the wiring between the BASE_14 and the measurement circuit +12V power supply failure...
Page 27: Preventive Activities
DISTRIBUTOR MANUAL MA35-51/E 6. MAINTENANCE AND CLEANING 6.1. PREVENTIVE ACTIVITIES The only maintenance that can be performed by unqualified personnel is the change of paper roll. Do not make repairs on your own. In case of damage contact the Technical Assistance Service. If the power cord is damaged it must be replaced by the Technical Assistance Service or qualified in order to avoid incorrect and dangerous operations staff.
Page 28: Appliance Removal
DISTRIBUTOR MANUAL MA35-51/E (6) Make sure that the paper has been introduced (8) The printer is ready. Close the front door. thought the cutter, if not take off the paper and repeat process from point (4). (7) Press once the feed paper button located top right position as shown in the figure to cut the remaining paper.
Page 29: Recording Base_14D
DISTRIBUTOR MANUAL MA35-51/E 7. RECORDING BASE_14D To record the BASE_14D you must have a PC and the DAVIFlash program. This program doesn’t require installation. This is a folder provided by DAVI & CIA and contains the following files: IMPORTANT: the DAVIFlash program requires NET Framework 7.1.
Page 30 DISTRIBUTOR MANUAL MA35-51/E (4) Turn on the scale (5) On your PC, run the DAVIFlash.exe program (6) In DAVIFlash, select the serial port where the scale is connected (7) On the scale, choose the option 1> FLASH (8) On the next screen, choose the option 1> TEST COMMS (9) Check that the word RESET appears in the window of the DaviFlash program a) If it appears, press START b) If it doesn’t appear, press STOP and select the option 1>...
Page 31: Technical Review
DISTRIBUTOR MANUAL MA35-51/E 8. TECHNICAL REVIEW This equipment complies with EN 60601-1-2 (2007) / AC (2010) on electromagnetic interference emission and immunity. The medium used to isolate the equipment from the main supply is a bipolar switch located on the rear of the unit (see (14) Switch and power in the appliance description)
Page 32: Symbols Included In The Packaging
DISTRIBUTOR MANUAL MA35-51/E 7.2.2 Symbols included in the packaging Graphic symbol Description Storage position Fragile Keep out of reach of the rain 7.2.3 Software symbols Graphic symbol Description Do not use if you are pregnant Do not use if you have a pacemaker Do not use the clock since MOVING THE DEVICE WARNING: Slide the device from the back...
Page 33: Normal Use
DISTRIBUTOR MANUAL MA35-51/E NORMAL USE For all measurements, the patient is the operator of the equipment provided. WARNING: The wheels of equipment should not touch the ground during normal use. Raise and level using the four adjustable legs. 7.4.1 Weight and height The patient onto the platform and the device measures your weight and height.
Page 34: Vascular Health
DISTRIBUTOR MANUAL MA35-51/E 7.4.4 Vascular health The patient introduces completely, the index of the left hand in the finger sensor vascular and then pressing [START], wait to complete the measurement. During this process you should not speak or move. MATERIALS Component Material Risk...
Page 35: Technical Specifications
DISTRIBUTOR MANUAL MA35-51/E 9. TECHNICAL SPECIFICATIONS Model: CARDIOPRIME LCD Manufacturer: DAVI & CIA C/Murcia 35 nave G E08830 Sant Boi de Llobregat Barcelona – SPAIN Display: LCD DISPLAY. 240 x 128 pixels Weight: 60 kg (aprox.) Maximum outer dimensions: 70 x 45 x 230 cm Measurement ranges: Weight: 2.5 to 225 kg in 100 g divisions...
Page 36 DISTRIBUTOR MANUAL MA35-51/E 100 g / 0.2 lb 100 g / 0.2 lb Min: 2.5 kg / 5.5 lb Max. 225 kg / 500 lb Class: Fuses: 230V power: 2 x 0,400 A 5 x 20 mm, Delayed Type T 115V power: 2 x 0,800 A 5 x 20 mm, Delayed Type T.
Page 37 DISTRIBUTOR MANUAL MA35-51/E Applicable Standards: ELECTRICAL SECURITY: Medical Electrical Equipment – Part 1: General requirements for basic safety and essential performance. IEC 60601-1: 2005 + Corr.1: 2006 + A1:2012 EN 60601-1: 2006 + A11: 2011 + A1:2013 UNE-EN 60601-1: 2008 + Erratum 2008 + Corr.: 2010 + A11: 2012 ELECTROMAGNETIC COMPATIBILITY: EN 60601-1-2 (2007) / AC (2010): Medical electrical equipment.
Page 38: Certificate Of Guarantee
DISTRIBUTOR MANUAL MA35-51/E 10. CERTIFICATE OF GUARANTEE We guarantee a one-year warranty starting from the date of purchase. The warranty covers damage that may occur as a consequence of normal operation or due to manufacturing defects. Mobile pieces such as wires, power appliance, etc. are excluded. Faults falling within the guarantee period shall be rectified free of charge upon presentation of the purchase receipt for the appliance.
Page 39 DISTRIBUTOR MANUAL MA35-51/E Other supporting documents are available on the website www.davicia.com C/ Murcia, 35 Nave G Pol.industrial Can Calderón. Tel. +34 93 654 32 32 info@davicia.com E 08830 Sant Boi de Llobregat. Barcelona. Spain Fax. +34 93 654 16 62...
