mecanair THERMO SPHERE PH-9100WTXN Owner's Manual

10,000w ceiling/wall mounted garage heater with thermostat
Hide thumbs

Advertisement

Table of Contents

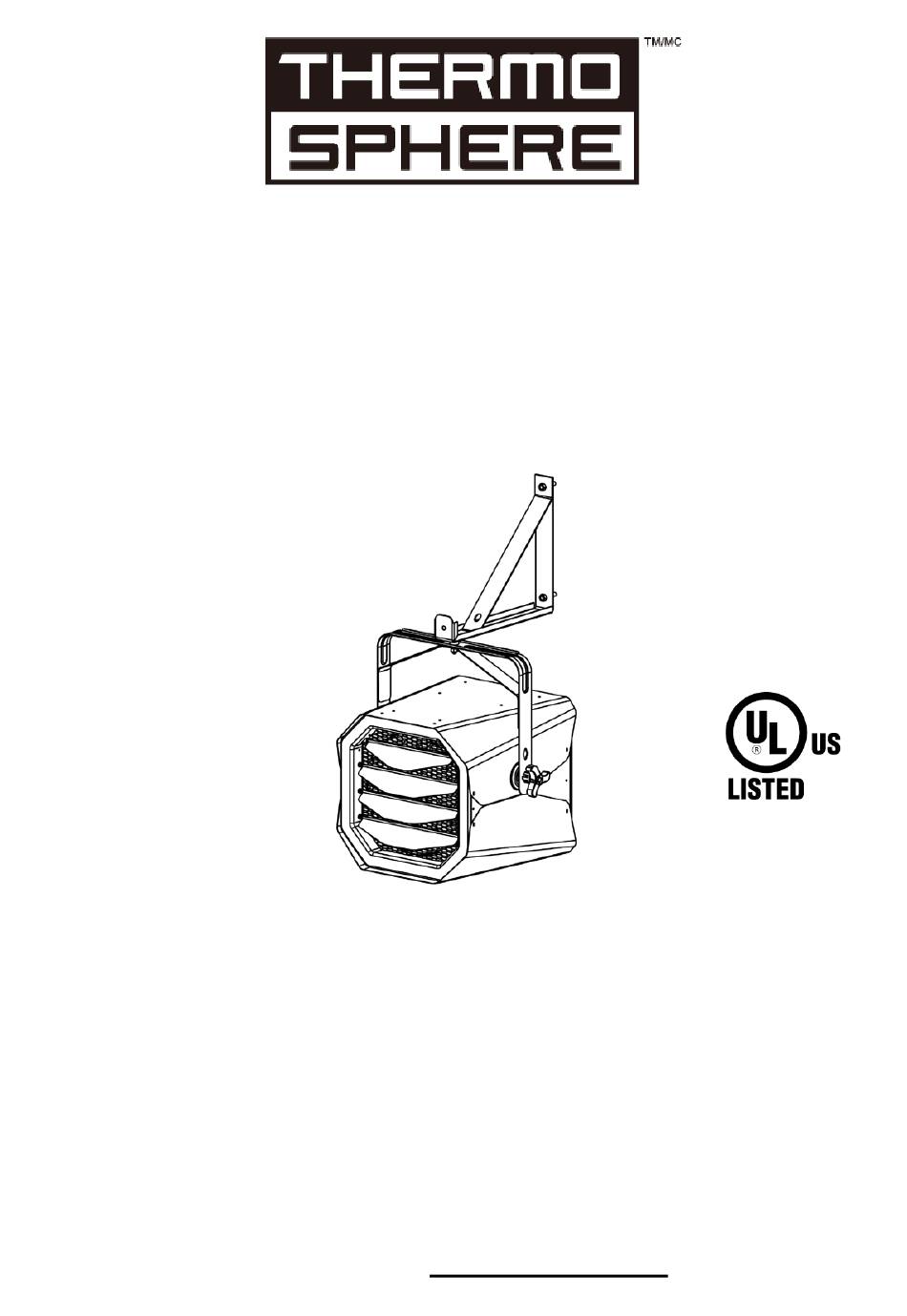

10,000W CEILING/WALL MOUNTED
GARAGE HEATER WITH THERMOSTAT
OWNER'S MANUAL
Model: PH-9100WTXN
IMPORTANT INSTRUCTIONS
READ & SAVE
PET OWNERS WARNING:
The health of some small pets including birds are extremely sensitive to the fumes
produced during the first-time use of many appliances. These fumes are not harmful to
humans but we recommended that you do not use your heater around birds and small
pets during its initial use until the manufacturing corrosion coatings burn off.
Technical support: 1-866-206-0888
Service email: info@mecanair.net
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THERMO SPHERE PH-9100WTXN and is the answer not in the manual?

Questions and answers

Related Manuals for mecanair THERMO SPHERE PH-9100WTXN

Summary of Contents for mecanair THERMO SPHERE PH-9100WTXN

  • Page 1 These fumes are not harmful to humans but we recommended that you do not use your heater around birds and small pets during its initial use until the manufacturing corrosion coatings burn off. Technical support: 1-866-206-0888 Service email: info@mecanair.net...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Instructions……………………………………… Specifications and Wiring Diagram………………………. 4 Parts of the heater ……………………….………………… 5 Installing Instructions……………………….……………… 5-8 Operating Instructions……………………….…………..Maintenance and Cleaning………………………………. Troubleshooting…………………………………………….

  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate and should not re-occur.

  • Page 4: Specifications And Wiring Diagram

    SPECIFICATIONS AND WIRING DIAGRAM 10,000W Ceiling-Mounted Garage Heater With Thermostat Model : PH-9100WTXN Voltage : 1 or 3 Phase ; 208 / 240 V Watts: 7500 / 10000 W Frequency: 60 Hz Recommended Heating Capacity: 1.25 watts / ft³ (0.03m³) Wiring diagram: NOTE: To connect an external temperature controller (a wall thermostat), insert the lead wires from wall...

  • Page 5: Parts Of The Heater

    PARTS OF THE HEATER Wall Mount Bracket Ceiling Bracket C. Upper Housing D. Louver for air direction Tilt adjustable knob Lower Housing G. Front Exhaust Grill H. Select switch for Build In Thermostat or Wall Thermostat Inspection window (Inspection cover) ON/OFF Switch Thermostat adjustment knob Wiring access window (wire connection cover)
  • Page 6 free space of 2524.67 cm CAUTION : High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear. WARNING: To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater.
  • Page 7 13. Loosen the screw to remove the inspection window cover in the rear of the heater. 14. Run the electrical power supply cable in conduit. 15. Secure the conduit to the back plate via the knock-out hole. Knock-out hole 16. Make the connections properly with connectors which are suitable for the conductor size, in cluding grounding wirings.
  • Page 8 How to connect an external temperature controller (a wall thermostat): 1. Open the access window (wire connection cover), at the corner is the terminal block. This is Terminal A. Terminal A 2. Insert the lead wires from the external temperature controller into the terminal and secured. 3.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS WARNING - The heater must be properly installed before it is used. HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH :  Apply appropriate personal protective equipment (PPE) and follow safe electrical workpractices. See NFPA 70.  A circuit breaker must be installed and serviced only by qualified electrical personnel. ...

  • Page 10: Maintenance And Cleaning

    MAINTENCE AND CLEANING There is no user maintenance part except regular cleaning as following description. All other servicing or maintenance should be performed by qualified service personnel. Before any cleaning, make sure that: 1. Disconnect power supply at source. Switch off the circuit breaker. 2.
