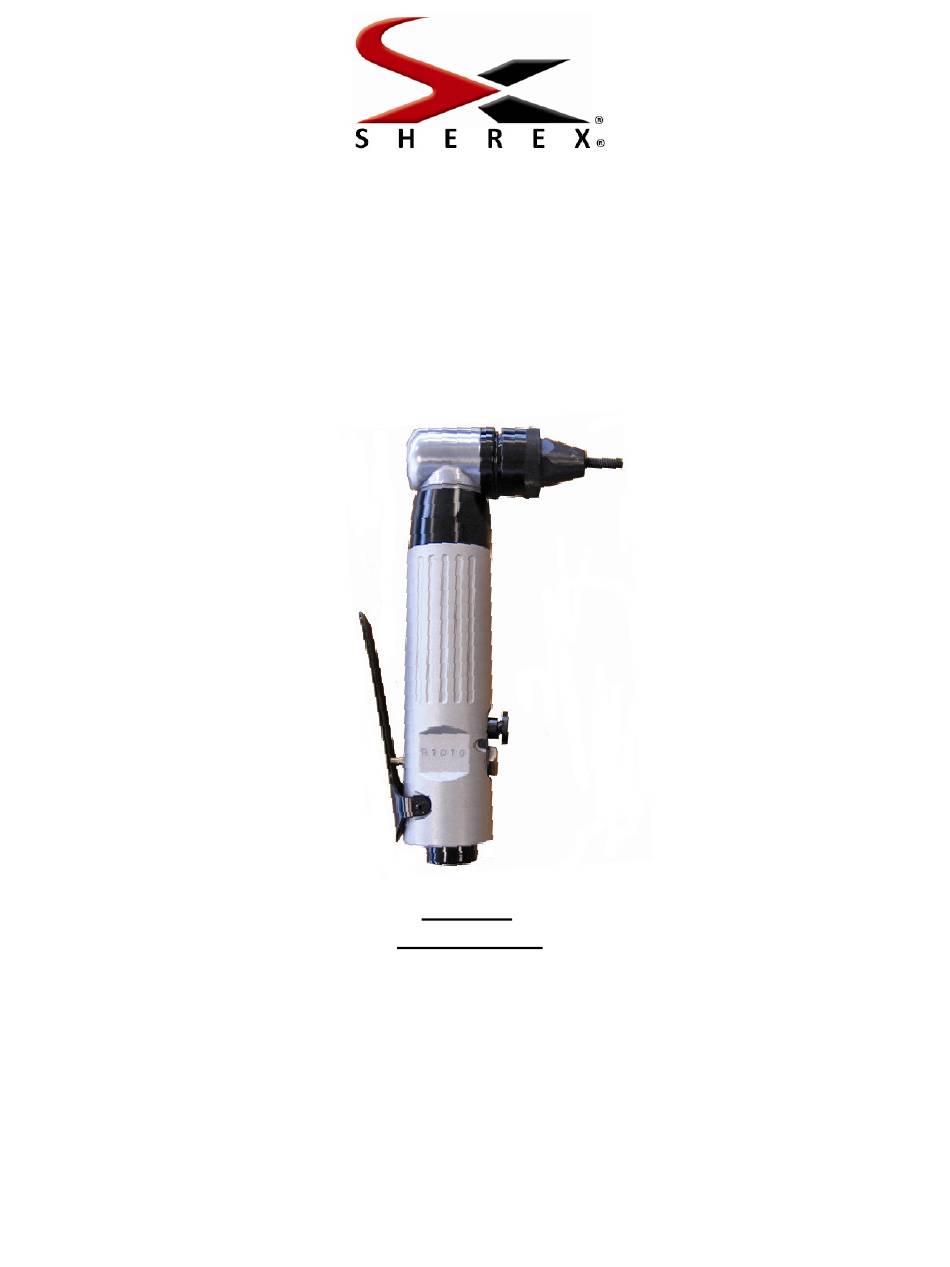

SHEREX FASTENING SOLUTIONS

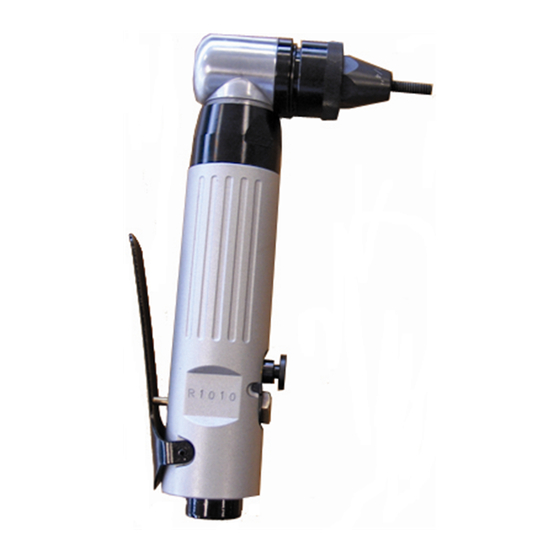

PNEUMATIC SPIN-SPIN RIGHT ANGLE INLINE STYLE
RIVET NUT INSTALLATION TOOL
SSG-911
MANUAL
SSG-911
Specifications
R.P.M. - 2200
*Air Pressure - 35-90 psi (oiled)
Weight - 2.3 lbs. (1.0 kg)
Air Inlet - 1/4"
Air Consumption - 5 CFM
Hose Diameter - 3/8"
Thread Size - Unified: 4-40, 6-32, & 8-32
Metric: M3 & M4
* Must be adjusted to suit thread size/application
Sherex Fastening Solutions, LLC ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150
866-4SHEREX ~ www.sherex.com
Advertisement
Related Manuals for Sherex SSG-911-M4
Summary of Contents for Sherex SSG-911-M4
- Page 1 Hose Diameter - 3/8” Thread Size - Unified: 4-40, 6-32, & 8-32 Metric: M3 & M4 * Must be adjusted to suit thread size/application Sherex Fastening Solutions, LLC ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 866-4SHEREX ~ www.sherex.com...
- Page 2 (5.) Push Gun Body’s quick releasing ring backward and push part 6 into the Gun Body. Completely release the quick releasing ring to complete the tool assembly. Sherex Fastening Solutions, LLC ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 866-4SHEREX ~ www.sherex.com...
- Page 3 If necessary, minor adjustments can be made by increasing or decreasing air pressure. This tool is recommended for use with Sherex CAL, CAK, CAH, CAO, CPB, CFT/CAT, and CFW/CAW rivet nuts. Feel free to contact Sherex about special applications, or use with other rivet nut styles not listed above.
- Page 4 SSG TOOL MAINTENANCE BEARING ASSEMBLY – It is important that the thrust bearing be lubricated with SSG-LUBE available thru Sherex. The bearing assembly and mandrel (socket head cap screws) are located in the nose piece of the tool. Lubricate as needed, bearing should not run dry.
- Page 5 Replace defective parts as may be required to assure proper installation. CALL SHEREX CUSTOMER SERVICE IF THESE PROCEEDURES FAIL TO PROPERLY SET THE RIVET NUT. Sherex Fastening Solutions, LLC ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150...
- Page 6 BS-M3 to BS-M10 SSG-913-31 WASHER (61) NOSE PIECE SOLD W/ HEAD SETS *Use only high Quality Socket Sherex Fastening Solutions, LLC ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 Head Cap Screws such as Unbrako®, or Holokrome® 866-4SHEREX ~ www.sherex.com...
- Page 7 Authorized Sherex Fastening Solutions, LLC Tool Repair Facility: Alcorn Industrial, Inc. 5412 Rock Hampton Court ~ Indianapolis, IN 46268 sales@alcornindustrial.com 1-800-317-4775 For All Your Rivet Nut Tool Repairs! Sherex Fastening Solutions, LLC ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 866-4SHEREX ~ www.sherex.com...
