HT Mini Lights Series
Installation AND MAINTENANCE MANUAL
Please read this operation manual carefully and keep it for future reference.
Advertisement
Table of Contents
Related Manuals for Hidrotermal Mini Series
Summary of Contents for Hidrotermal Mini Series

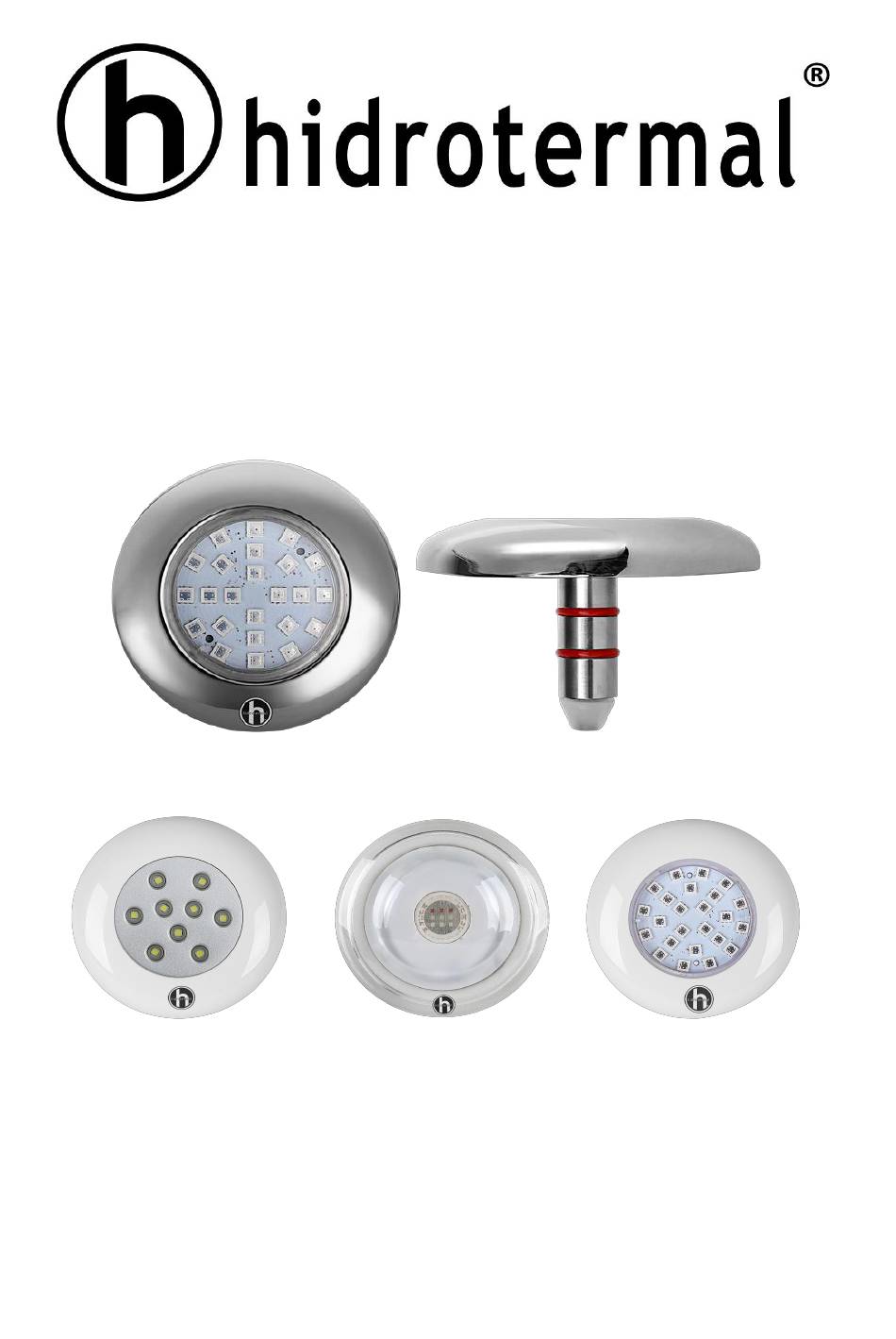

- Page 1 HT Mini Lights Series INSTALLATION AND MAINTENANCE MANUAL Please read this operation manual carefully and keep it for future reference.
- Page 2 1.Technical Parameters Model Description Power Option Color Option Mini-LSS62 Mini Stainless Steel AISI-316 Light Single Mini-LPC62 Mini Plastic Light Single Mini-LPC94 Mini Plastic Light Single Mini-LSS95 Mini Stainless Steel AISI-316 Light Single Mini-LPC95 Mini Plastic Light Single Mini-LSS105 Mini Stainless Steel AISI-304 Light Single Mini-LSS105 Mini Stainless Steel AISI-316 Light...
- Page 3 3. Installation 3.1 Suggestions of Installation Height for Underwater Light 1) The circuit system of the underwater light needs to be equipped with GFCI (Ground Fault Circuit Interrupter) and a suitable rated current circuit breaker; 2) The length of the cable connecting the underwater light and the transformer should not exceed 30m, otherwise it may affect the normal operation of the underwater light;...
- Page 4 3.3 Instructions for Installation in Concrete Pool (PVC Pipe Ø25mm) 1) First, the ring (A) must be inserted into the underwater light, and then the underwater light is inserted into the pipe (B) by pressure to fix it; 2) After inserting the casing (B), the ring on the back of the casing (B) will be fixed on the Ø25mm pipe by pressure.
