C&C TECHNIC AVlink VAX-8404F User Manual

VIDEO/AUDIO
MATRIX
(VAX-8404F)
4 In 4 Out
USER MANUAL
VAX-8404F
Package Contents-
▪
1 AVLINK VAX-8404F video/audio matrix
▪
1 user manual
▪
1 power adapter DC 12V 1.25A
▪
2 rack rails, 8 screws
Any thing missed, please contact with your vendor.

Introduction

Through the video/audio matrix VAX-8404F, you can display /
play different images / audio signals to 4 screens / speakers (or
earphones) through 4 PC. And you can also control the source of
image / audio by selecting PC signal source 1 ~ 4 or turning off
source input.

Video/Audio matrix is ideal for:

▪ Test bench facilities
▪ Data center
▪ Help desks
▪ Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities

Features

▪ Intelligent functionality.
▪ With 350 MHz pixel frequency.
▪ Support VGA, SVGA, UXGA, QXGA resolutions.
▪ Support Multi-Sync video type include RGBHV, RGsB, RGBS.
▪ Support synchronous Include positive, negative; TTL or 1Vpp
level.
▪ Supports the DDC, DDC2, DDC2B.
▪ Four sets of 7-Segment LED can indicate the input setting
status of input port quickly.
▪ Can be cascaded.
▪ The output is compatible with standard VGA card.
▪ Extends the video signal up to 65 meter (213 feet).
▪ The switches on panel can select PC signal source 1 ~ 4 as
OUT 1 ~ 4 or turning off any signal I/O port / all I/O ports.

Specifications

Function
Video Input Connector
Video Output Connector
V1.0
Audio Input Connector
Audio Output Connector
Select Switch
7-Segment LED
Max. Resolution
Pixel Frequency
Cable Distance
(Device to Monitor)
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)

Technical Specifications

Input/Output Signal
Pin #

Installation

1. Turn off the power switches of PC, screens, and speakers.
VAX-8404F
2. Use HD-15 image / 3.5φ earphone extension cable to
4x HD-15 Female
4x HD-15 Female
4x 3.5φ Stereo Jack
3. Use HD-15 image / 3.5φ earphone extension cable to
4x 3.5φ Stereo Jack
10
4
4. Connect video/audio matrix to power supply.
1920x1440 @ 85 Hz 5. Turn on the power switches of PC, screens, and speakers.
6. Control switches, which includes "Out1", "Out2", "Out3",
350 MHz
65m (213 feet) Max.
DC 12V 1.25A
Metal
1065 g
269x108x42 mm
-1-
Signal Pin #
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 NC
4 NC 12 ID1
5 Ground 13 Horizontal sync
6 Analog ground 14 Vertical sync
7 Analog ground 15 ID3
8 Analog ground

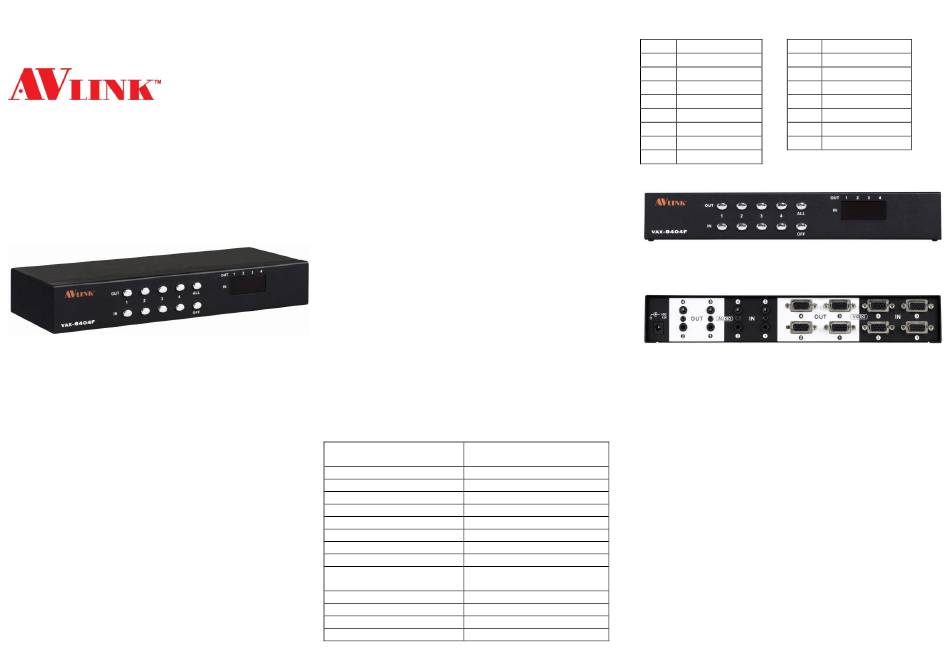

FRONT VIEW
1. Select Switch
2.
7-Segment LED
REAR VIEW
1. Input Power Jack
2. " Out" Port
Audio
3. " In" Port
Audio
4. "Video Out" Port
5. "Video In" Port
connect VGA interface / audio card in PC and the "Video
In" & "Audio In" jack of video/audio matrix.
connect screen, speaker, or earphone and the "Video Out" &
"Audio Out" jack of video/audio matrix.
"Out4", "All", "In1", "In2", "In3", "In4", and "OFF", on panel can
get image / audio signals or turn off input signal through
output jack.
-2-
Signal
