User Manual
UH-AUD1
HDMI2.0 Audio Inserter & Extractor,
4K@60HZ YUV4:4:4
All Rights Reserved
Version: UH-AUD1_2021V1.0
www.ute.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UH-AUD1 and is the answer not in the manual?

Questions and answers

Summary of Contents for UTE UH-AUD1

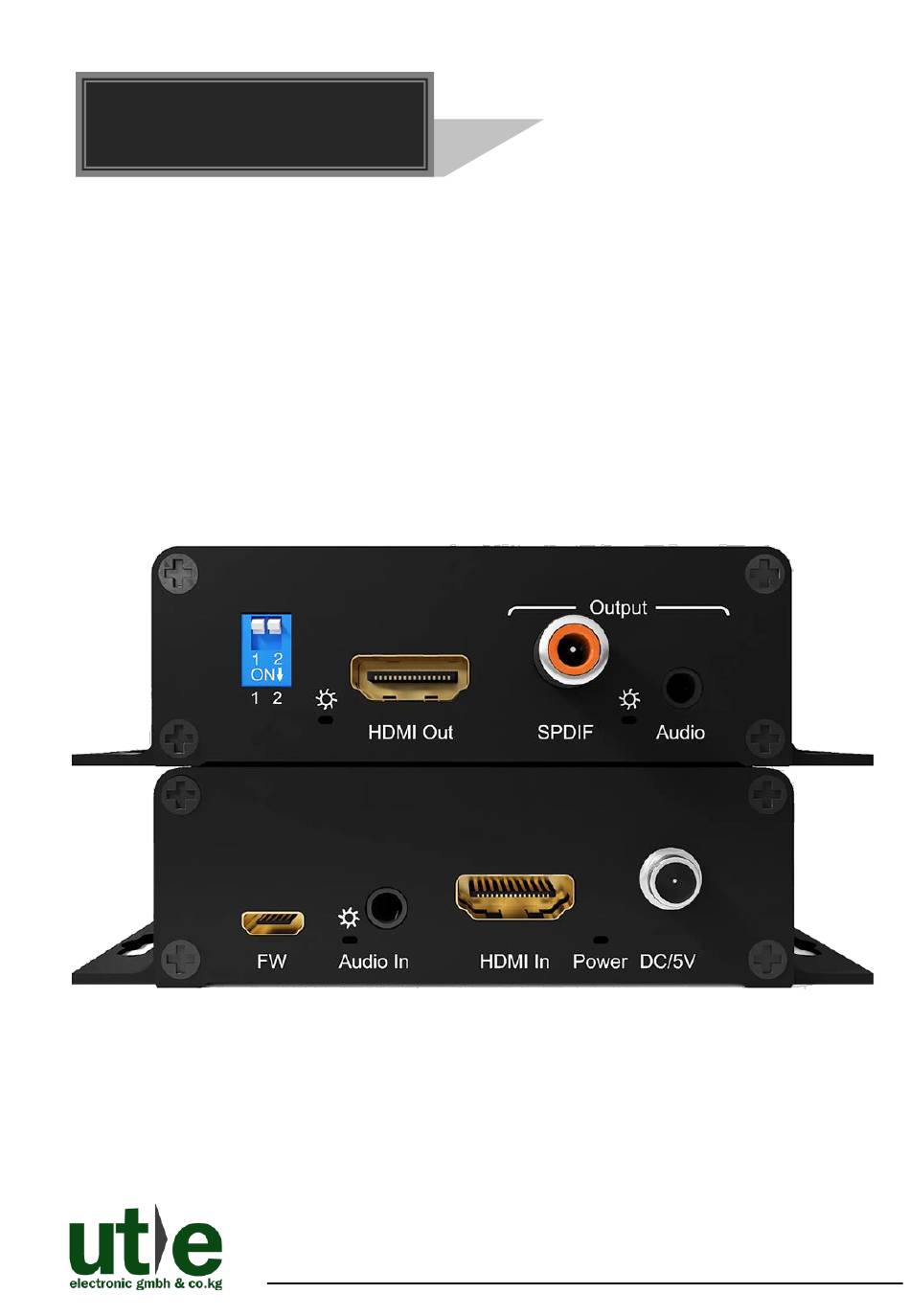

  • Page 1 User Manual UH-AUD1 HDMI2.0 Audio Inserter & Extractor, 4K@60HZ YUV4:4:4 All Rights Reserved Version: UH-AUD1_2021V1.0 www.ute.de...
  • Page 2 UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till October, 2021.
  • Page 3 UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. ⚫ Unpack the equipment carefully and save the original box and packing material for possible future shipment ⚫...

  • Page 4: Table Of Contents

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 Table of Contents 1. Product Introduction ....................1 1.1 Introduction to 4K60 18G HDMI 2.0 Audio Embedder & De-Embedder ..... 1 1.2 Features ......................1 1.3 Package Contents ..................... 2 2. Panel Description of UH-AUD1 ................... 3 2.1 Front Panel ......................

  • Page 5: Product Introduction

    Please keep this manual for future reference. 1.1 Introduction to 4K60 18G HDMI 2.0 Audio Embedder & De-Embedder The UH-AUD1 is an audio embedder and de-embedder in one unit that supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit), HDR, 4K@60Hz (YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2 and 18Gbps on the HDMI input and HDMI output.

  • Page 6: Package Contents

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 1.3 Package Contents ➢ 1 x UH-AUD1: Mini 4K HDMI Embedder and De-Embedder ➢ 1 x Power Adaptor (5V DC, 1A) ➢ 1 x User manual  Notes: • Please confirm if the product and the accessories are all included, if not, please contact with the dealers.

  • Page 7: Panel Description Of Uh-Aud1

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 2. Panel Description of UH-AUD1 2.1 Front Panel Figure 2-1 UH-AUD1 Front Panel Name Description ① USB micro 5P port for upgrading the firmware ② Audio In LED Audio Indicator ③...

  • Page 8: Rear Panel

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 2.2 Rear Panel Figure 2-2 UH-AUD1 Rear Panel Name Description Audio configuration DIP Switcher Configuration Audio Embedded ① Audio Modes PCM2.0 Audio Extraction Switcher 5.1 Audio Extraction Bypass ② HDMI out indicator HDMI output - Type-A female HDMI port ③...

  • Page 9: System Connection

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe.

  • Page 10: Connection Procedure

    Step2. Connect the HDMI display device (such as HD-LCD, HD-DLP) into HDMI output of UH-AUD1 with HDMI cable Step3. Connect Optical audio cable or RCA audio cable to Amplifier. Step4. Connect DC 5V power adapter to the DC/5V power port of UH-AUD1. Attention: Insert/Extract cable gently ...

  • Page 11: Specification

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 4. Specification Video Input (1) HDMI Input Connector (1) 19-pin type A female HDMI Output (1) HDMI Output Connector (1) 19-pin type A female HDMI Input Video Signal 0.5-1.0 Volts P-P...
  • Page 12 UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 General Operating Temperature -5~ 40℃ Reference Humidity 5% ~ 90% (No Condensation) Input:100V~240V AC Power Output: DC5V 1A Power Consumption 1.5W (Max) Dimension (L*W*H) 140.4mm x 89 mm x28.3 mm Net Weight 155g ...

  • Page 13: Maintenance & Product Service

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 5. Maintenance & Product Service 5.1 Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. 5.2 Product Service 5.2.1 Damage requiring service The unit should be serviced by qualified service personnel if: a) The DC power supply cord or AC adaptor has been damaged;...

  • Page 14: After-Sales Service

    UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 6. After-sales Service Any transport costs are borne by the users during the warranty. The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice.
  • Page 15 UH-AUD1: HDMI Audio Embedder & Extractor - 4K@60Hz 4:4:4 5) Technical Support: Email to our after-sales department or make a call, please inform us the following information about your cases. ⚫ Product version and name. ⚫ Detailed failure situations. ⚫ The formation of the cases.
  • Page 16 U.T.E. electronic GmbH & Co. KG Tel: +49-2302-282830 Fax: +49-2302-28283-10 Email: info@ute.de Website: www.ute.de...
