Summary of Contents for YOSE POWER L200
- Page 1 Manual L200...
-
Page 2: Table Of Contents
Contents Product Description and Specifications Parts Description Functions Introduction Features Buttons Functions Operation Power on/off Riding interface Assist level switch Turn on/off the light Clear trip data Error Code User Menu Attentions... -
Page 3: Product Description And Specifications

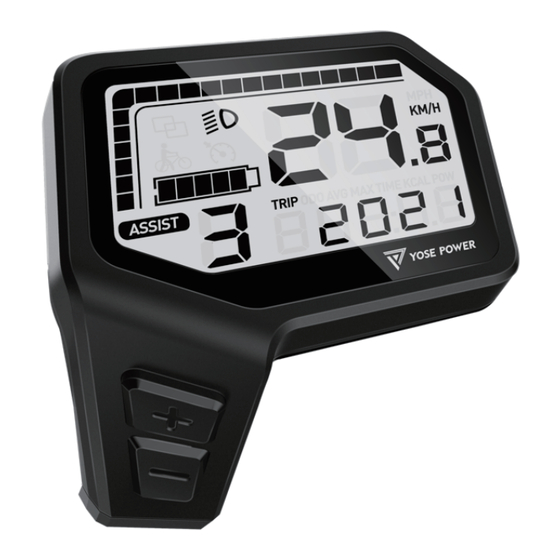

Product Description and Specifications Parts Description 71.85 Display Dimensions... -
Page 4: Functions Introduction
Functions introduction Features L200 supports the common riding parameters and statistical results, as well as some useful functions: Real-time speed, Max speed, Average speed Real-time motor power Battery indicator Assistant level Odometer, trip Trip time Calorie burnt Light indicator Metric(km/h)/Imperial(mph) switching... -
Page 5: Operation
Buttons Name Functions 1.Power on/off [Power] 2.Setting confirmation 1.Parameter adjustment 2.Light turn on/off 3.Menu operation 1.Parameter adjustment 2.Pedestrian mode on/off 3.Menu operation Operation Power on/off Long press the [Power] button to power on, the boot interface will be shown for about 2s, followed by the riding interface: In any interface, long press the [Power] button, the shutdown interface will be shown for about 2s before power off:... -
Page 6: Riding Interface
Riding interface Light indicator Cruise Bluetooth connection indicator Speed ring Speed Unit Pedestrian mode Data area Battery indicator Assist Muti-function display area The speed ring is displayed according to the current speed and the speed limit value, and when the speed reaches the speed limit, the full ring is displayed. Avg speed Max speed Riding time... -
Page 7: Turn On/Off The Light
Turn on/off the light Long press [+] button to turn on/off the light. Clear trip data Long press [Power] & [+] button to clear trip data. [Note] The trip time, max speed, average speed, and calories burnt will be also cleared by this operation. -
Page 8: Error Code
Error Code Common error codes are as follows (Only for reference, depending on other electrical parts of the ebike): KM5S protocol Error Code Error Code Meaning Current or Mos Error Throttle Error Motor Phase Error Motor Hall Error Brake Error Low-voltage protection Communication Error Li2 protocol Error Code... -
Page 9: User Menu
Current or Mos Error Motor Hall Error Communication Error User Menu To enter the user menu, please long press the [+] & [-] combination buttons for 1s on the riding interface when static. This interface will automatically return to the riding interface when there is no operation for more than 60s. - Page 10 3. Speed Limit In this interface, a prompt of "SPEED" appears at the bottom right, click the [+] / [-] button to adjust the speed limit value, click the [Power] button to confirm and go to the next menu interface. 4.
- Page 11 5. Reset In this interface, a prompt of "RESET" appears at the bottom right, and the data area flashes to display ‘y‘ or ‘n’: Click the [+] / [-] button to switch ‘y’ or ‘n’, click the [Power] button to confirm and go to the next menu interface.
-
Page 12: Attentions
Attentions 1.Be sure to power off first before connecting and disconnecting the cable, or the display will be totally damaged; 2.When fix the display to the ebike, please ensure that the torque of the screwdriver is about 0.5N.M (DO NOT EXCEED 0.6N.M), or it will cause damages to the handle;...
