Telycam TLC-100-U2-4K User Manual

4k auto focus webcam
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4 K Auto Focus Webcam
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC-100-U2-4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telycam TLC-100-U2-4K

Summary of Contents for Telycam TLC-100-U2-4K

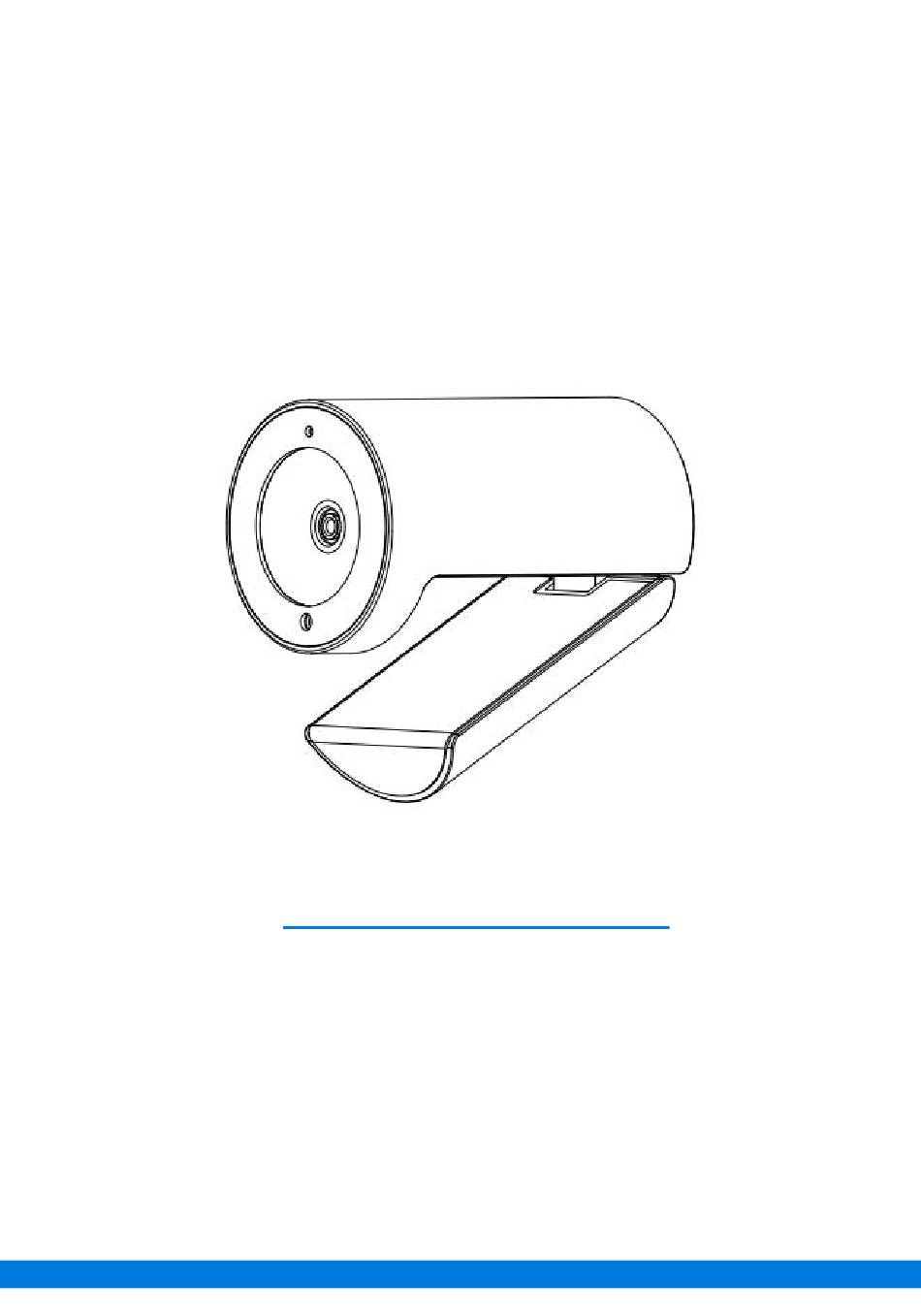

  • Page 1 4 K Auto Focus Webcam User Manual V1.0...
  • Page 2 Explanation 1. High quality glass lens 2. LED light 3. Privacy lens cover 4. Microphone 5. Clip mount 6. Spindle 7. USB Type-C port...

  • Page 3: Product Features

    Product Features 1/2.8" 12MP Ultra high definition CMOS sensor. View Angle: 80°(Diagonal); 65°(Horizontal). 10cm Object distance: 10cm~infinity. DZoom Support 1.5~3X digital zoom. PDAF Phase detection auto focus. ePTZ Electronic Pan-Tilt-Zoom. Support both Landscape Portrait video display, flexible to meet different application.

  • Page 4: Usb Type-C Port

    USB Type-C Port A USB Type-C cable provides video output, camera control, power supply, and program upgrade. Upgrade 4K@30 and 1080@60 USB power supply Type-C port...
  • Page 5 Connection 1. Connect your computer to the webcam via the included USB Type-C cable (1.5m). 2. Plus and play, no need to install any driver, supports the standard UVC protocol. 3. The LED will light up when the app is using the webcam.

  • Page 6: Video Format

    Video Format Output both MJPG and YUY2 two compression video, capable of supporting 3840*2160@30 and 1920*1080@60. Supports Windows, MAC OS, Android, Chrome and Linux operating systems. Portrait video: MJPG 1080*1920@30/15; 720*1280@30/15; 576*1024@30/15; 360*480@30/15 Landscape video: 4000*3000@15/10; 3840*2160@30/10; 2560*1440@20/10; 1920*1080@60/30; 1280*720@60/30; 1024*576@60/30; 640*480@20/10 1280*720@12/5;...
  • Page 7 Mic Parameters Built-in high-quality microphone, clear and comfortable sound pickup. Sensitivity: -26±2dB Omnidirectional RL=2.2KΩ microphone Vs=2.0V S/N Ratio: Pickup distance: 64dB 3~5m...

  • Page 8: Installation Mode

    Installation Mode (A) The webcam is fixed on the tripod(not Provided). (B) The webcam is fixed to the top of the display.

  • Page 9: Size And Weight

    Size & Weight Webcam Size: 76mm×φ48mm Package Size: 114.5mm×87mm×85mm Webcam size Net Weight: 0.13kg Gross Weight: 0.3kg...
