PARKLIO™ ANPR

USER MANUAL

Table of Contents

Need help?

Do you have a question about the ANPR and is the answer not in the manual?

Questions and answers

Summary of Contents for Parklio ANPR

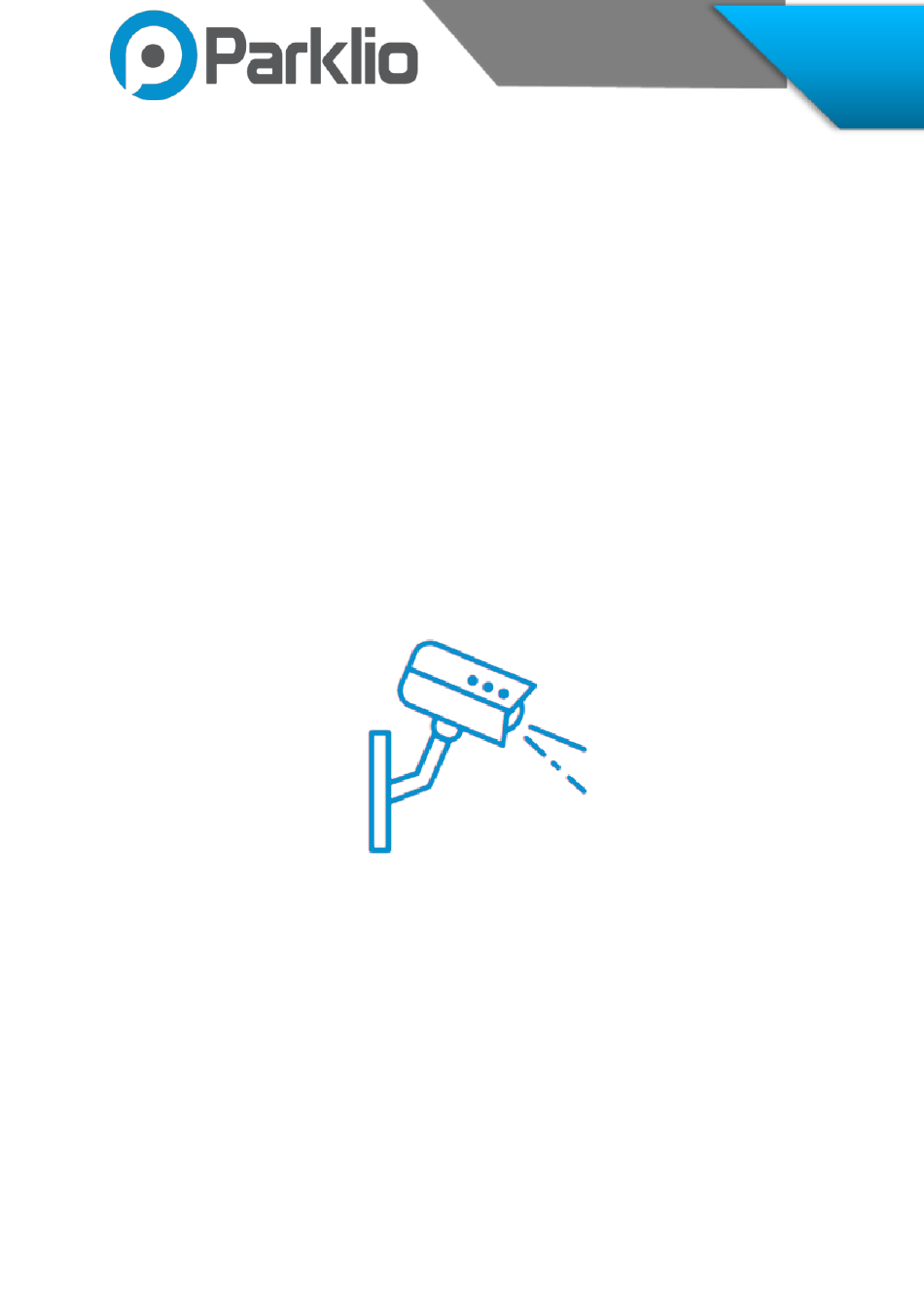

Page 1 PARKLIO™ ANPR USER MANUAL...
Page 2 Dear Customers, Thank you for the confidence you have shown us by purchasing Parklio™ ANPR. We hope that all your expectations of this product will be fulfilled. Parklio™ ANPR is manufactured using the latest technologies and has undergone rigorous quality control procedures.
Page 3: Table Of Contents
3.2. Camera activation ........................15 3.3. Camera web interface ......................18 3.4. Detection Area Setup ......................20 4. Assigning camera to Parklio™ Connect app ................22 4.1. Installing Parklio™ Connect ....................22 4.2. Login ............................23 4. FAQ ............................28...
Page 4: Safety Warnings
Do not use the ANPR camera, if you have not read and understood the operating instructions before. • Before first use of the ANPR camera, make sure that all the parts listed in these instructions are inside of the original packaging. •...
Page 5 PARKLIO (AMPLIFICO D.O.O.) HAS THE RIGHT TO MODIFY THE DEVICE WITHOUT PREVIOUS NOTICE. PARKLIO (AMPLIFICO D.O.O.) DECLINES ANY RESPONSIBILITY FOR DAMAGE OR INJURY TO PEOPLE OR THINGS CAUSED BY IMPROPER USE OR WRONG INSTALLATION. THE APPLIANCE HAS BEEN ESTABLISHED ACCORDING TO ALL VALUENT SAFETY CRITERIA AND STANDARDS.
Page 6: Camera Installation
2. Camera Installation NOTE: If you are unsure how to properly install the ANPR camera, you can always schedule a video call with us email. Our team will explain in detail how to install ANPR camera for the optimal license plate reading.
Page 7: Installation Angle
Select a proper lens according to the table below. The identification distance is based on the camera’s focal length. Min. Max. Identification Identification Camera Lens (mm) Scene Distance (m) Distance (m) 2.8-12 11,2 Entrance Camera Road 8-32 Traffic 2.3. Installation Angle The installation angle must meet the requirements below: •...
Page 8: Installation Of The Camera
1x Connection cable • 2x Quick start guide • 1x CD NOTE: If any of the parts are incorrect, missing, or damaged, contact your Parklio™ dealer. Keep the original packing materials, in case you need to return the product for repair.
Page 9 Wall Mount Option To install the camera on a wall follow the instructions illustrated below:...
Page 10 Pole Mount Option For mounting the camera to a pole a pole mounting kit is needed. The pole mounting kit is not included with the camera. To mount the camera to a pole follow the instructions included with the pole mounting kit. Connections All wiring connections should be made inside the base plate to protect them from environmental conditions.
Page 12 Positioning the camera The camera can be rotated by unlocking the mount by using the provided security screw wrench.
Page 14: Controlling A Parking Device
2.6. Controlling a device To enable the opening of a parking access control device (gate, chain, bollard, ...) or other devices, connect the camera ALARM1 output (marked as 4&5 in the image below ) relay to the device's OPEN command input. 2.7.
Page 15: Parklio Devices
2.8. Parklio Devices Parklio Gate: Connect the camera ALARM terminals (terminals 1A and 1B) to START1 (1) and COM (6) terminals on the Gate control electronics. Note: When using the camera, it is recommended to enable automatic closing of the gate.
Page 16: Camera Setup
If the network has a firewall enabled you may need to enable the camera to access the remote hosts it is necessary. The list of services is provided below: HOST PROTOCOL / SERVICE PORTS lpr.parklio.com 6011 lpr.parklio.com 7660 lpr.parklio.com 7333 lpr.parklio.com...
Page 17 • NOTE: Please keep in mind that this password is only used for the camera setup and Web Interface and not for the Parklio™ PMS. • Once the password has been entered, click the Activate button to turn on the camera.
Page 18 Once the password recovery method has been selected, the necessary fields must be filled out, and the changes must be saved by clicking Confirm. It is necessary to exit this window after clicking the confirm button because it does not close automatically after confirmation.
Page 19: Camera Web Interface
NOTE: If a static IP address is required, the SADP tool can be used to configure a static IP address and network parameters by disabling DHCP and entering network parameters. Click the refresh button to refresh the SADP tool. NOTE: If the Ipv4 address is set to 0.0.0.0, refresh the SADP tool by clicking on refresh or disconnect and reconnect the camera's Ethernet cable to refresh the SADP tool.
Page 20 → → Go to VCA Road traffic Arming Schedule and Linkage Method. Select All and disable the Trigger Alarm Output by clicking on the checkmark next to the Trigger Alarm Output. After that, click the Enable checkbox in order to enable vehicle detection:...
Page 21: Detection Area Setup
3.4. Detection Area Setup The next step is to position the camera so that it faces the road where the license plates will be detected. The camera should have a clear view of the entire lane where the detection will take place.
Page 22 Once this is done, change the Detection mode to License Plate or Vehicle detection and set the Time interval to 1 minute. After making these changes, save them by clicking the Save button.
Page 23: Assigning Camera To Parklio™ Connect App
4. Assigning camera to Parklio™ PMS 4.1. Installing Parklio™ Connect To add the ANPR camera to your Parklio account, please download and install the Parklio™ Connect application. Skip this step if you already have the application installed. The application can be downloaded by scanning the following QR codes:...
Page 24: Login
4.2. Login To use Parklio™ Connect for the Parklio™ ANPR camera configuration, you must be logged in. NOTE: Use your Parklio™ PMS account credentials to login to your Connect account. 3. Navigate to the lots tab and select a parking lot to which the camera will be added.
Page 25 4. Click the plus icon in the upper right corner of the screen. 5. Scan the device QR code that was received with the camera. 6. Select the type of parking device to which the camera is connected.is connected to.
Page 26 7. Determine the location of the camera (entrance or exit of the parking lot). 8. The device ID, URL, port, and password for the camera can be found in the Setup credentials. Before closing the window it will be necessary to enter this information into the HIK webpage. NOTE: To view the password, click the eye icon in the password field.
Page 27 To remove the camera, go to My Parklios and click on the camera name in the zone where the camera was added. This will open the Device Settings. The camera can be removed by clicking the delete icon in the upper right corner.
Page 28 Test button. If no error was found a Test successful message will be displayed and the camera Register status should change to Online. After setting up the camera, navigate to the ANPR page on the Parklio PMS, and the camera should be connected and online.
Page 29: Faq
4. FAQ 1. How to restore the camera to factory settings? To restore the camera to its factory setting: • Disconnect the camera power supply cable (or the PoE cable) and wait 10 seconds. • Press and hold the reset button. •...
