MODEL: AWT106B

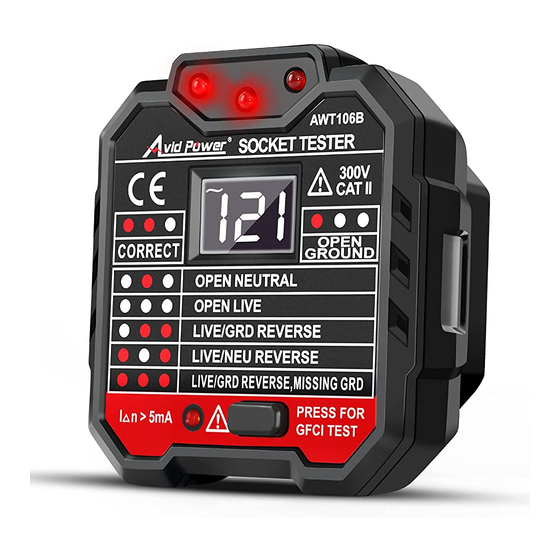

SOCKET TESTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWT106B and is the answer not in the manual?

Questions and answers

Summary of Contents for Avid Power AWT106B

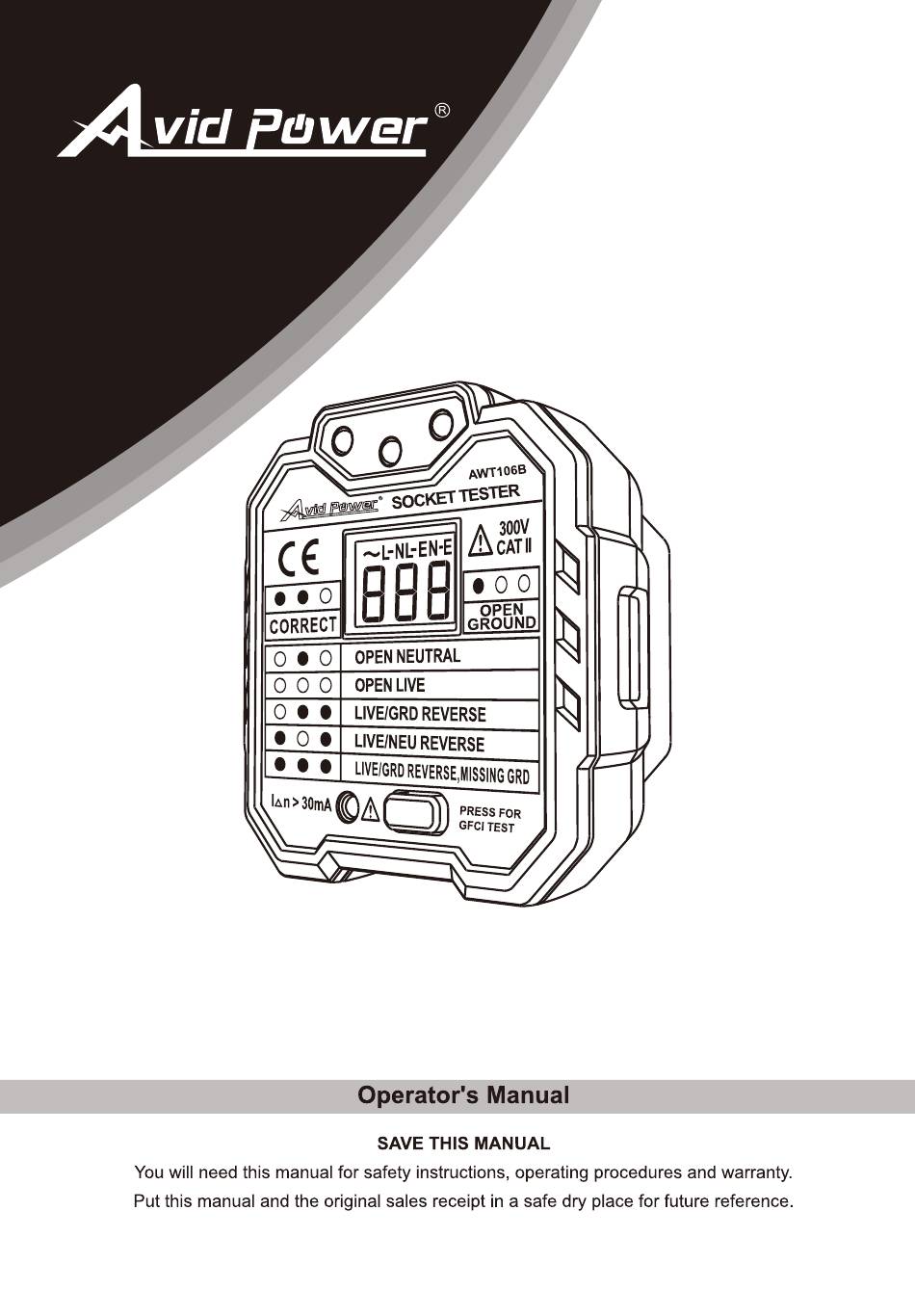

  • Page 1 MODEL: AWT106B SOCKET TESTER...
  • Page 2 WARNING Socket tester is mainly used for power socket wiring detection and RCD/GFCI test. It can detect the wiring status of the socket quickly and accurately.With LCD Screen, it can also measure the voltage of the socket and display that. Please read the instruction manual carefully before use and strictly follow the safety rules and the caution, attention and warnings listed in the instruction manual.
  • Page 3 SAFETY INSTRUCTION „ When using the tester to detect the wrong wiring of the socket, please find professional electrician to maintain wiring. TECHNICAL SPECIFICATIONS Operating voltage: 48~250V/45~65Hz Measure voltage (with LCD): 48~250V/45~65Hz Accuracy: ± (2.0%+2) Operating temperature: 0°C~40°C operating Humidity: 20%~75%RH Storage temperature: -10°C~50°C Storage Humidity: 20%~80%RH Altitude: ≤2000m...
  • Page 4 OPERATION DESCRIPTION „ When using, please be careful not to touch the RCD/GFCI button, and not to trigger the leakage protection switch to avoid unnecessary losses. Voltage test (with LCD) Insert the tester into a standard three hole power outlet. Read the socket voltage value from the tester screen, the unit is V.
