Installing the Express9 Backplane

The Express9 backplane is fixed into the chassis by screwing down on the mounts located in
the host chassis. Ensure the rear of the Express9 backplane is facing the rear of the chassis.
The chassis will have a number of locating mounts not used by the Express9, it is important
that stand off mounts are used to ensure the reverse side of the backplane does not come
into contact with any unused mounts.

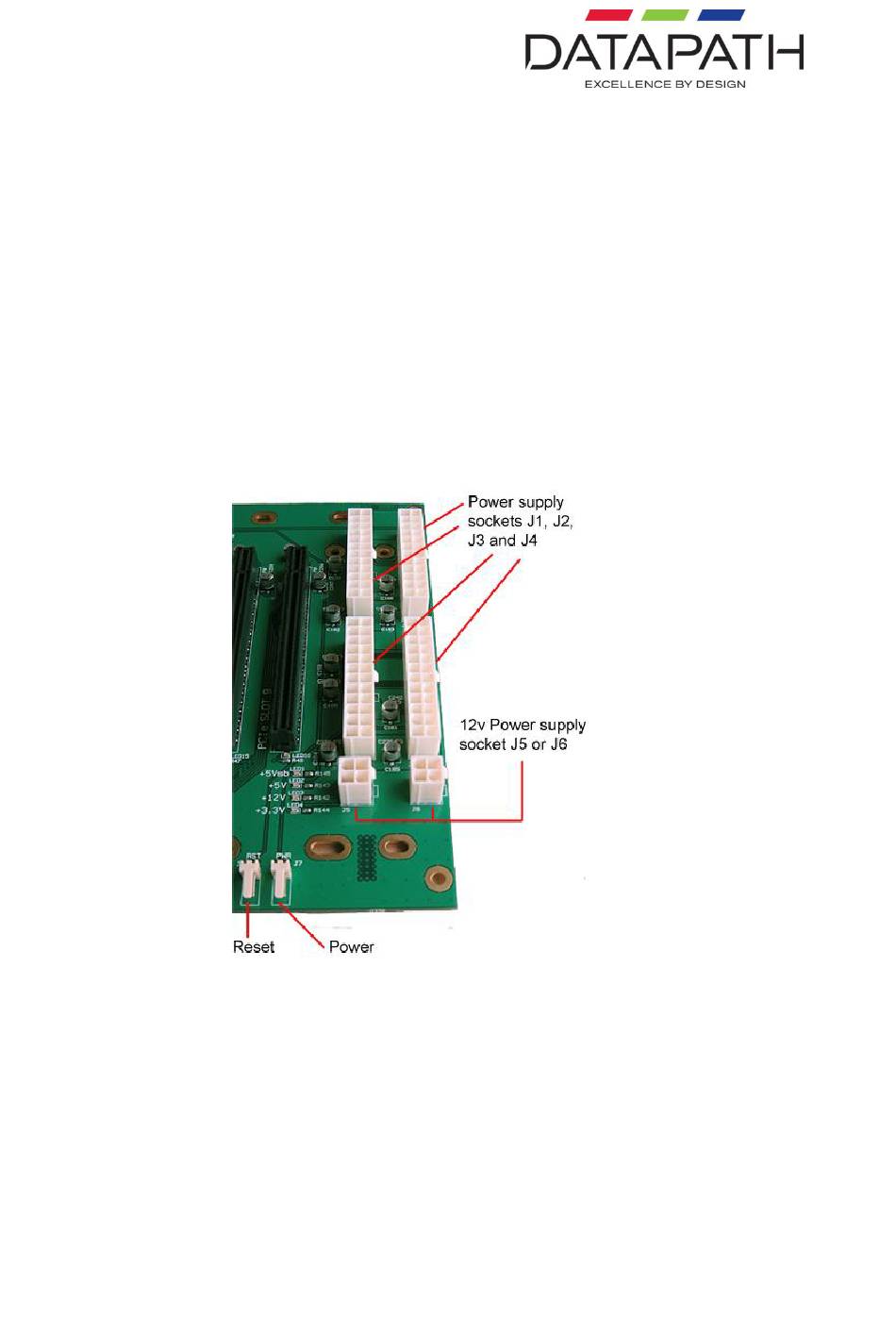

Once the Express9 is secured inside the chassis connect the power supply to one of the four
connectors (J1, J2, J3, and J4) on the Express9 backplane and connect the 12v supply (J5 or
J6).
Connect the fan headers
There is no requirement to connect the power reset cable unless using an SBC.
