Ergo In Demand 30-500-22 Installation Instructions

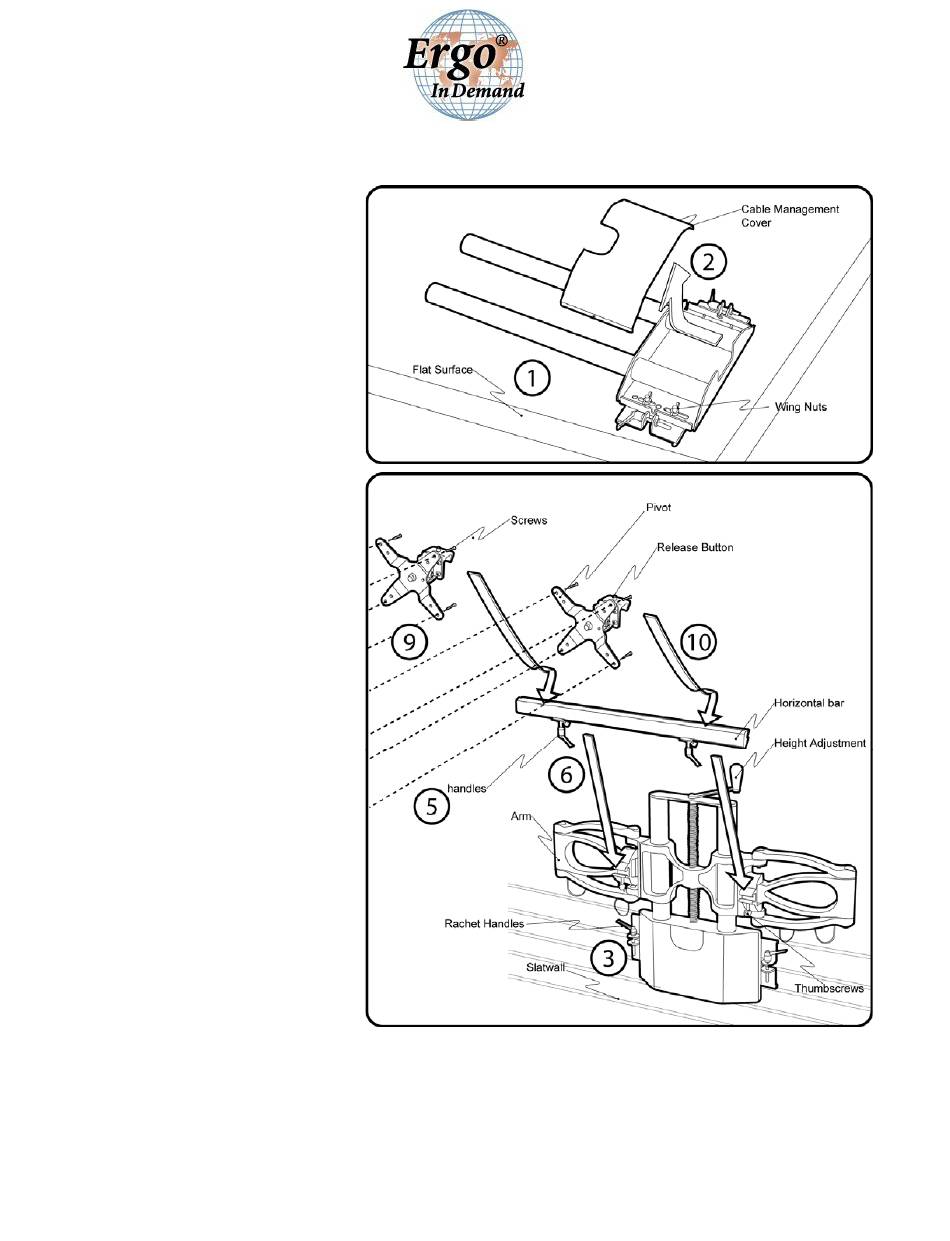

1. Place mounting bracket on a flat
surface.
2. Remove cable management cover
by sliding upward. Check to make
sure wing nuts on lower mounting
bracket are loose enough for
bracket to slide freely in slot
3. Mount slatwall bracket to slatwall
by hooking the lower bracket on
slatwall first, then extending to
latch upper bracket to farthest
available slat from the lower
bracket. Tighten onto slatwall
using the ratchet handles. Ratchet
handles operate by turning then
lifting handle up and back to start
position then dropping handle and
turning again. Repeat until
brackets are snug, yet allow
horizontal movement on the
slatwall. Slide unit into desired
position on slatwall.
4. Fully tighten slatwall bracket to
slatwall. Snug wing nuts.
5. Remove horizontal bar and loosen
handles. Set each crossbar mount
to positive 8 degrees and retighten
handles.
6. Articulate each arm forward
approximately 6 inches and align.
Loosen bottom thumbscrews.
7. Slide one side of bar into arm
making sure that the hole in
underside of the block aligns with
thumbscrew. Tighten thumbscrew.
Repeat for other crossbar mount.
8. Attach wings using enclosed
screws and 5mm hex wrench (see
figure 3.3 for models 30-500-33,
30-500-44 only)
9. Attach quick release pivots to back
of each monitor using the phillips
head screws provided. Be sure that silver release button is positioned toward the top of the monitor.
10. Starting with the more center monitors, start placing them on the horizontal bar by tipping back
approximately 45 degrees and then down until silver release button engages groove and clicks into place.
Repeat for other monitors.
Installation Instructions
Product # 30-500-22, 30-500-33, 30-500-44
Ergo In Demand, Inc.
4900 Industry Drive
Central Point, Oregon 97502
800-888-6024 (phone)
541-779-0829 (fax)
