FlexShade
®
Long-lasting, rechargeable battery for window shades

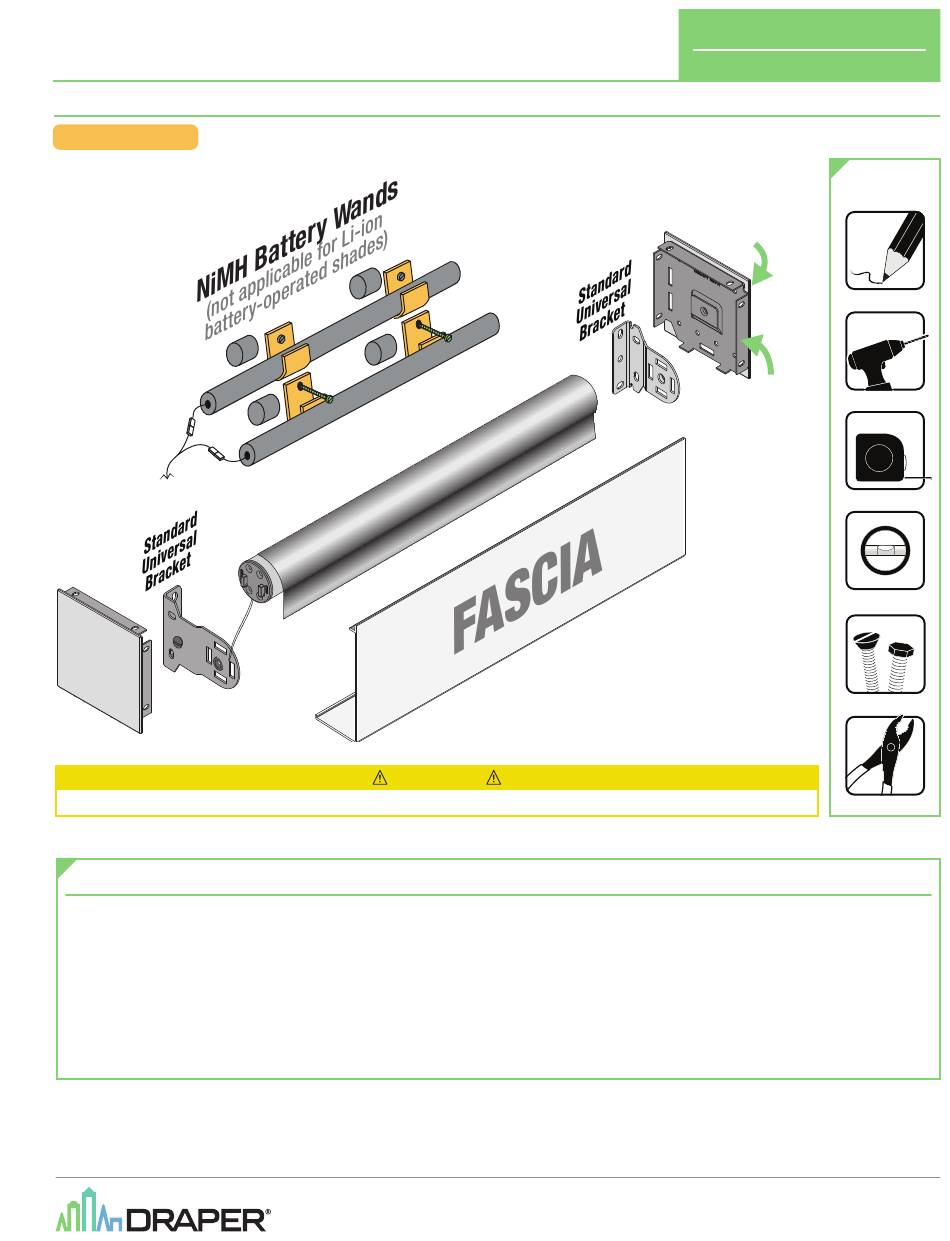

Overview - Components

FLEXSHADE BA
E n d
c a p
E n d
E n d
c a p
c a p
C o v
C o v
e r
e r
Read and understand all warnings
Contents
Overview - Components .......................................................................................1
PLEASE READ - Preparation for Installation .....................................................3
Section 1 - Charging Battery ...............................................................................3
Section 2 - Mounting Brackets and Endcaps ...................................................3
Battery
CAUTION
(Page 2 of this document)
before beginning installation.
Section 4 - Battery Mounting ..............................................................................3
Section 5 - Shade Installation .............................................................................4
Section 6 - Fascia and Headbox Installation ....................................................4
Section 7 - RF Remote Programming Instructions .........................................5
Section 9 - Adjusting the Speed ........................................................................6
Section 10 - Dimensions ......................................................................................7
If you have any difficulties installing or servicing your
FlexShade
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
© 2022 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
TOOLS
E n d
REQUIRED
c a p
C o v
e r
PENCIL
E n d
c a p
POWER DRILL
TAPE MEASURE
LEVEL
HARDWARE
PLIERS
.................6
®
Recharge, call your dealer or Draper, Inc.
®
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FS_MO_Battery_Inst22
(by others)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade BA and is the answer not in the manual?

Questions and answers

Related Manuals for Draper FlexShade BA

Summary of Contents for Draper FlexShade BA

  • Page 1: Table Of Contents

    If you have any difficulties installing or servicing your FlexShade Recharge, call your dealer or Draper, Inc. ® Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FS_MO_Battery_Inst22 © 2022 All Rights Reserved...

  • Page 2: Please Read - Important Safety & Installation Information

    Most of Draper’s standard fabrics may be cleaned at the window by vacuuming with a soft brush If the shade is telescoping, place a piece of high quality attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy gaffer tape about 1"...

  • Page 3: Please Read - Preparation For Installation

    FlexShade Battery ® page 3 of 7 Section 1 - Charging Battery (for Li-ion operated shades ONLY) This motor has a 12V built-in Li-ion battery pack with integrated charge Figure 1 management. Max power input for recharging: 12.6V / 1000mAh. •...

  • Page 4: Section 5 - Shade Installation

    FlexShade Battery ® page 4 of 7 Section 5 - Shade Installation Section 6 - Fascia and Headbox Installation 1. Place operator end notches into slots on bracket, then depress (motor) Fascia Installation spring-loaded pin on idler end and place in hole in endcap .

  • Page 5: Section 7 - Rf Remote Programming Instructions

    FlexShade Battery ® page 5 of 7 Section 7 - RF Remote Programming Instructions Please Note: The motor ships with no programming. Follow these instructions to program unit to the desired transmitter. 1. Select a transmitter channel to assign motor. Hold UP and DOWN buttons until motor jogs, then release.

  • Page 6: Section 8 - Activate/Deactivate Radio Technology Somfy ® (Rts)

    FlexShade Battery ® page 6 of 7 Section 8 - Activate/Deactivate Radio Technology Somfy ® (RTS) Please Note: This function is used to deactivate the radio transmission to save the battery life during shipment, or when the product will not be used for an extended amount of time (eg: storage) 1.

  • Page 7: Section 10 - Dimensions

    FlexShade Battery ® page 7 of 7 Section 10 - Dimensions Overall Height Bracket Dimensions Left Hand Shown 2 " (60mm) " " 1 " (17mm) (19mm) (41mm) Cloth width = Overall width - 1 " (fascia) " (41mm) (22mm) "...
