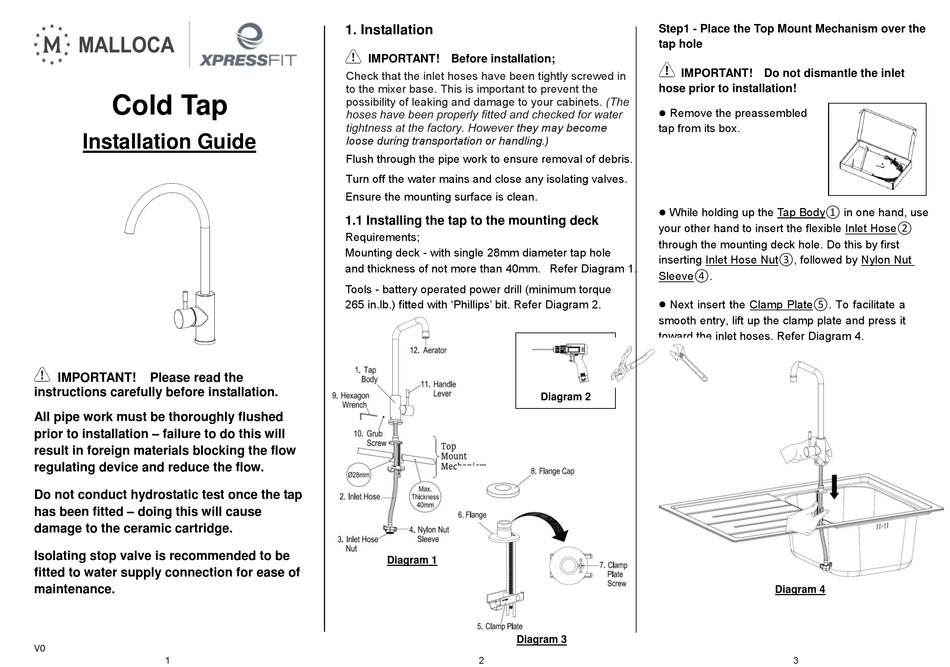

Malloca XpressFit K-115 XFIT Installation Manual

Cold Tap
Installation Guide
IMPORTANT! Please read the
instructions carefully before installation.
All pipe work must be thoroughly flushed
prior to installation – failure to do this will
result in foreign materials blocking the flow
regulating device and reduce the flow.
Do not conduct hydrostatic test once the tap
has been fitted – doing this will cause
damage to the ceramic cartridge.
Isolating stop valve is recommended to be
fitted to water supply connection for ease of
maintenance.
V0
1
1. Installation
IMPORTANT! Before installation;
Check that the inlet hoses have been tightly screwed in
to the mixer base. This is important to prevent the
possibility of leaking and damage to your cabinets. (The
hoses have been properly fitted and checked for water
tightness at the factory. However they may become
loose during transportation or handling.)
Flush through the pipe work to ensure removal of debris.
Turn off the water mains and close any isolating valves.
Ensure the mounting surface is clean.
1.1 Installing the tap to the mounting deck
Requirements;
Mounting deck - with single 28mm diameter tap hole
and thickness of not more than 40mm. Refer Diagram 1.
Tools - battery operated power drill (minimum torque
265 in.lb.) fitted with 'Phillips' bit. Refer Diagram 2.
Diagram 1
Diagram 3
2
Step1 - Place the Top Mount Mechanism over the
tap hole
IMPORTANT! Do not dismantle the inlet
hose prior to installation!
Remove the preassembled

tap from its box.
While holding up the Tap Body① in one hand, use

your other hand to insert the flexible Inlet Hose②
through the mounting deck hole. Do this by first
inserting Inlet Hose Nut③, followed by Nylon Nut
Sleeve④.
Next insert the Clamp Plate⑤. To facilitate a

smooth entry, lift up the clamp plate and press it
toward the inlet hoses. Refer Diagram 4.
Diagram 2
Diagram 4
