Summary of Contents for AV-Box MMX3232

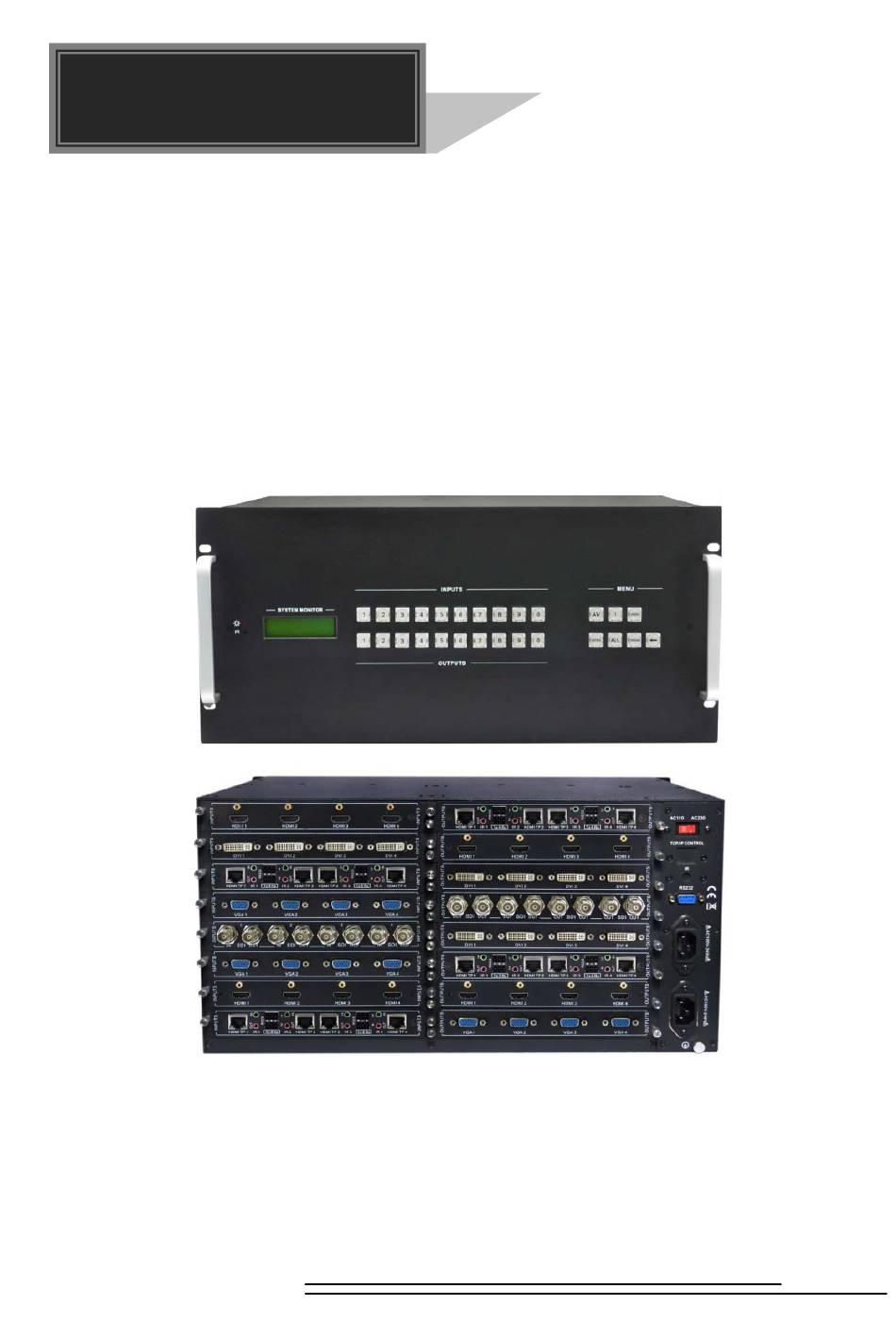

- Page 1 User Manual MMX3232 Modular Matrix Switcher 32x32 www.av-box.ru...
- Page 2 All product function is valid till 2015-3-13. Trademarks Product model, AV-BOX and its logoademarks of AV-BOX. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without the prior written consent of AV-BOX.
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. www.av-box.ru...
-
Page 4: Table Of Contents
Modular Matrix Switcher 32x32 Table of Contents 1. Introduction ......................... 1 1.1. About MMX3232 ....................1 1.2. Features ......................1 1.2.1. MMX signal card (changeable cards) ............. 1 1.4 Package List ...................... 2 2. Panel Description ......................3 2.1. MMX3232 ......................3 2.1.1. - Page 5 5.2.6. 4I-SD & 4O-SD ..................28 5.2.7. 4I-TP & 4O-TP ..................29 5.2.8. 4I-UH & 4O-UH ..................29 5.2.9. 4I-UF & 4O-UF ..................30 5.2.10. 4I-BT & 4O-BT ..................30 6. Troubleshooting & Maintenance ................32 7. After-sales Service ....................34 www.av-box.ru...
-
Page 6: Introduction
It has RS232 port for serial control and optional IP port for TCP/IP control, can be easily controlled by third-part devices. With its flexible design, MMX3232 can be used for different project and tend to be an all-in-one solution. It is the combo solution for multimedia conference rooms, control rooms, broadcasting rooms, shopping center etc. -
Page 7: Package List
4O-UF Optical Fiber 4O-BT HDBT, RS232, Audio 1.4 Package List 1 x MMX3232 1 x RS232 cable 4 x Plastic cushions 1 x IR remote (The cell battery is not included) 1 x Power Cord ... -
Page 8: Panel Description
Modular Matrix Switcher 32x32 2. Panel Description 2.1. MMX3232 2.1.1. Front Panel Figure 2- 1 Front Panel of MMX3232 Name Description ① IR sensor, receive IR signal sent from IR remote Power Illuminate red once powered on ② indicator Display real-time operation status ③... -
Page 9: Rear Panel
Note: There are only 8 input and 8 output slots for MMX3232, which enables only 8 input cards and 8 output cards to be installed on MMX3232. The input/output cards can be changed based on your requests and supports hot plug and play. -
Page 10: Changeable Cards
Modular Matrix Switcher 32x32 2.2. Changeable Cards MMX3232 support expansion through various changeable input/ output cards of different signals including DVI, HDMI, VGA, twisted pair, SDI etc. Here is a brief introduction to the changeable cards. 2.2.1. 4I-DV & 4O-DV DVI signal card. -
Page 11: Ds& 4O-Ds
4I-HD: input card, maximum four input signal. Input signal can pass to output device through 4O-HD, or pass through other kinds of output cards. 4O-HD: output card, maximum four output signal, output signals from 4I-HD, or other kinds of input cards. www.av-box.ru... -
Page 12: Vg & 4O-Vg
4O-VG: output card, maximum four VGA output signal and 4 stereo audio outputs, output video signal from 4I-VG, or other kinds of input cards, and output audio signal from the audio of the input signal. Pin layout of the VGA connectors (female): www.av-box.ru... - Page 13 Supporting RGBHV, RGsB, RGBS, RsGsBs, YUV, YC and Composite video. 4I-VA: input card, maximum four VGA inputs and four stereo audio inputs. Input signal can pass to output device through any kinds of output cards. The VGA connector and source connection is same with the 4I-VG. www.av-box.ru...
-
Page 14: Sd & 4O-Sd
4O-TP, or pass through other kinds of output cards, need to work with TPHD402T. 4O-TP: output card, maximum output four HDMI TP signal, output signals from 4I-TP, or other kinds of input cards, need to work with TPHD402R. www.av-box.ru... -
Page 15: Uh & 4O-Uh
4I-UH: input card, maximum four input signal. Input signal can pass to output device through 4O-UH, or pass through other kinds of output cards. 4O-UH: output card, maximum four output signal, output signals from 4I-UH, or other kinds of input cards, HDCP compliant status settable via RS232 command www.av-box.ru... -
Page 16: Uf & 4O-Uf
4O-BT, or pass through other kinds of output cards, need to work with HDBT transmitter (e.g. TPHD402T). 4O-BT: output card, maximum output four HDBT signal, output signals from 4I-BT, or other kinds of input cards, need to work with HDBT receiver (e.g. TPHD402R). www.av-box.ru... -
Page 17: System Connection
1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe. 3) All devices should be connected before power on. 3.2. Connection Diagram Figure 3- 1 System Diagram www.av-box.ru... -
Page 18: Application
Modular Matrix Switcher 32x32 3.3. Application MMX series has a good application in various occasions, such as radio & television, multi-media meeting room, big screen displaying, television education and command & control center etc. www.av-box.ru... -
Page 19: Control Operations
4. Control Operations 4.1. Front Panel Button control Users can control MMX3232 rapidly and directly with its front panel buttons. To switch AV/ A/ V signal, please operate the buttons under the following format: Format: “Input Channel” + “AV” +“Output Channel”+“Enter”... -
Page 20: Ir Remote Control
Modular Matrix Switcher 32x32 4.2. IR Remote control With the IR remote, MMX3232 could be controlled remotely. As the function buttons on the IR remote are the same with the ones on the front panel, the IR remote shares the same operations and commands with the control panel. -
Page 21: Rs232 Control
4.3. RS232 Control 4.3.1. Connection of RS232 Communication Port Except the front control panel and IR remote, MMX3232 can be controlled by far-end control system or through the Ethernet control via the RS-232 communication port. This RS-232 communication port is a female 9- D connector. The definition of its pin layout is shown in the table below. - Page 22 EDID file (.bin file). Upgrade EDID data of input ports When the switcher gets the command, it will EDIDUpgrade[x]. show a message to send EDID file (.bin file). Operations will be canceled after 10 seconds. www.av-box.ru...
- Page 23 Set the resolution of input [x] to USER/I/[x]:0619%; 1360X768@60Hz. Set the resolution of input [x] to USER/I/[x]:0621%; 1600X1200@60Hz. Set the resolution of input [x] to USER/I/[x]:0629%; 1920X1080@60Hz. Set the resolution of input [x] to USER/I/[x]:0620%; 1920X1200@60Hz. Restore to factory default. USER/I/[x]:0617%; Auto-adjust VGA signal USER/I/[x]:0606%; www.av-box.ru...
- Page 24 Set the resolution of input [x] to 1280x720, 720P USER/I/[x]:0627%; Set the resolution of input [x] to 1280x800, USER/I/[x]:0628%; WXGA Set the resolution of input [x] to 1920x1080, USER/I/[x]:0629%; 1080P Set the resolution of input [x] to 1920x1200, USER/I/[x]:0620%; WUXGA www.av-box.ru...
- Page 25 3. Please remember to end the commands with the ending symbols “.” or “;”. 4. Type the command carefully, it is case-sensitive. 5. Commands pertaining to EDID only avails for signal cards that support EDID management. www.av-box.ru...
- Page 26 Example: “12B12,13,15.” to transfer signal from the input12 to the output No.12,13,15. 9、Inquire the input channel to the output channel [x]: Status[x]. Example: Send “Status3.” to inquire the input channel to the output 3. 10、Inquire the input channel to the output channels one by one: Status. www.av-box.ru...
- Page 27 Example: “EDIDM5B3.” to enable input 3 to learn the EDID data of output 5. 15、Command for signal cards: USER/[Y]/[X]*****. Example: “USER/I/7:0623%;” to set the input 7 to support YPbPr signal, the card is plugged in the second input slot of the matrix. www.av-box.ru...
-
Page 28: Tcp/Ip Control (Optional)
Controlled by PC(s) in LAN The MMX3232 can be connected with a router to make up a LAN with the PC(s), this make it able to be controlled in a LAN. When control, just make sure the MMX3232’s IP section is the same with the router. -
Page 29: Tcp/Ip Settings
Step3. Set the MMX3232’s IP address and gateway to the same IP section as the router. Step4. Set the PC’s IP address and gateway as the original one. Step5. Connect the MMX3232 and PC(s) to the router. In the same LAN, each PC is able to control the MMX3232 asynchronously. 4.4.2. TCP/IP Settings Step1. -
Page 30: Specification
Set the port number to 4001 (unique, other numbers are unavailable). c) Press the button Apply on present page to save your settings. Step6. Select the tab “reset device”, then your settings will be loaded to the MMX3232. 5. Specification 5.1. Main Unit... -
Page 31: Changeable Cards
340 MHz (10.2 Gain 0 dB Bandwidth Gbit/s) Switching Video Signal DVI,HDMI,VGA,C-VIDEO,YPbPr 200ns (Max.) Speed 5nS (±1nS) Crosstalk <-50dB@5MHz Time-delay EDID and Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID www.av-box.ru... -
Page 32: Hd & 4O-Hd
0.5 ~ 2.0Vp-p Output Level 0.5 ~ 2.0Vp-p Input Output 75Ω 75Ω Impedance Impedance General 350MHz (-3dB), fully Gain 0 dB Bandwidth load VGA-UXGA, RGBHV, RGBS, RGsB, RsGsBs, component video, Video Signal S-video & C-video. Switching 200ns (Max.) Crosstalk <-50dB@5MHz Speed www.av-box.ru... -
Page 33: Sd & 4O-Sd
<-14 dB @ 1 MHz ~ 1.5 Input Return <-14 dB @ 1 MHz ~ Loss Loss 1.5 GHz SMPTE 292M, SMPTE Video 259M, SMPTE 424M, Data Type 8bit, 10bit Standard ITU-RBT.601, ITU-RBT.1120 Audio Bits per 18 bits per channel, 2 channels (L, R) Sample www.av-box.ru... -
Page 34: Tp & 4O-Tp
100Ω (Differential) Response Output Video Output Audio Output Output 4 HDMI Output 4 Stereo Output Output 3.5mm Stereo audio Female HDMI Connector Connector connector Min.～Max. Output 75Ω T.M.D.S. 2.9V~3.3V Level Impedance Output Frequency 20Hz～20K Hz 100Ω (Differential) Impedance Response www.av-box.ru... -
Page 35: Uf & 4O-Uf
300m (Multi-mode transmission, using Single/ Multi mode Optical Module and OM3 Multi-Mode Fiber Cable) Data Rate 10.2Gbit/s 5.2.10. 4I-BT & 4O-BT Input Video Input Audio Input Input 4 HDBT Input 4 Stereo Input 4 Female RJ45 (with Input 3.5mm Stereo audio www.av-box.ru... - Page 36 -10℃～+40℃ 10%～90% Temperature Humility >70dB@ Return Loss <-30dB@ 5KHz 100MHz-100M Supported Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-HD Audio Format Analog audio: PCM HDMI Support HDMI1.4 Standard EDID& HDCP Compliant with HDCP 1.4; Support manual EDID management Management www.av-box.ru...
-
Page 37: Troubleshooting & Maintenance
Static becomes stronger Check the grounding and when connecting the video Bad grounding make sure it is connected connectors well. www.av-box.ru... - Page 38 The device has already Send it to authorized by RS232 / IR remote / been broken. dealer for repairing. front panel buttons If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. www.av-box.ru...
-
Page 39: After-Sales Service
Modular Matrix Switcher 32x32 7. After-sales Service If there appear some problems when running MMX3232, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: AV-BOX warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail).
