Weight Limit: 500 Lb / 227 Kg
C.W. - 2018/12/13
2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4379639WE

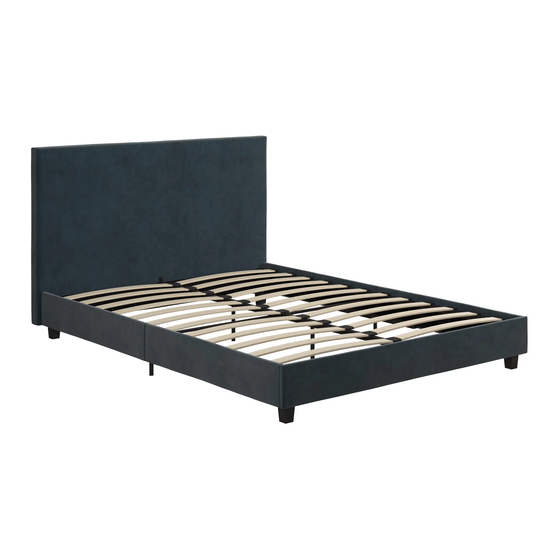

Upholstered Bed
Queen
Blue Velvet
Lot Number
B344379639WE00
1
Advertisement
Related Manuals for DHP 4379639WE
Summary of Contents for DHP 4379639WE
- Page 1 Upholstered Bed Queen Blue Velvet Weight Limit: 500 Lb / 227 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
- Page 2 Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
- Page 3 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Headboard Footboard Side Panel Side Panel Side Rail Check Box to identify the parts and ensure that T969680 T969690 T969700...
-
Page 4: Hardware Pack
Hardware Pack Hardware Pack #: T4107119-00 1/4" X 3/4" X 40 1/4" X 1 3/8" 1/4" X 1 9/16" X 28 1/4" X 1 3/4" 5/16" X 2 1/4" 1/4" Please do not completely tighten all the hardware, until the entire assembly is complete, unless Wrench otherwise indicated in the step-by-step instructions. - Page 5 Step 1 Attach F and H to C and D with The slat holes on F should Repeat the same step for remaining parts be facing upward. C, D, F and H. X 16...
- Page 6 Step 2 Attach G X 2 to previous subassembly C The slat holes on G should and D with be facing upward. Repeat the same step for remaining parts G and the other subassembly C and D. X 12...
- Page 7 Step 3 Attach S to D and T to C with Repeat the same step for the other subassembly C and D. X 12...
- Page 8 Step 4 Screw into A and into B, leave half of the thread exposed . Do not completely tighten the BOLTS, leave half of thread exposed.
- Page 9 Step 5 Hang C and D on A and B as illustrated, don't completely tighten the bolts until STEP 9 is completed.
- Page 10 Step 6 Attach N to Z with Repeat this step for all remaining legs Z.
- Page 11 Step 7 7.1 Attach N X 4 to A, B, C and D with 7.2 Attach L X 2 to H X 2 with X 16...
- Page 12 Step 8 Insert I X 2 and J into M X 2, then fix them with Slat holes on part I and J should be facing upward.
- Page 13 Step 9 Attach subassembly from previous STEP to A and B with , then properly tighten all the bolts including those from STEP 5.
- Page 14 Step 10 Attach K to F X 2 and J with...
- Page 15 Step 11 11.1 Insert O into X ; 11.2 Press X into F and G, repeat the same procedure for the opposite side and X . with a new O 11.3 Insert ends of both slats O into Y , then press Y into I and J as illustrated.
-
Page 16: Helpful Hints
Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement. - Page 17 Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, preferiblemente sobre una alfombra o utilice el cart n del empaque para proteger su DHP garantiza que este producto est libre de defectos de f brica en la mano de obra piso y su producto.
- Page 18 Partes Instrucciones Paso 1 Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts Una la parte F & H con C & D con Repita el paso para las otras partes C, D, F & H. Todo se incluye en 1 caja grande! Paso 2 Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para Una la parte G X 2 con C &...
- Page 19 Mueva sus muebles nuevos con cuidado, con dos personas levantando y llevando el aparato a su nueva ubicaci n. Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza. Algunas partes han sido pre-ensambladas en este producto. Se encuentran ilustradas en esta p gina y disponibles para reemplazo.
