Summary of Contents for Fantasea Line UWL-09F

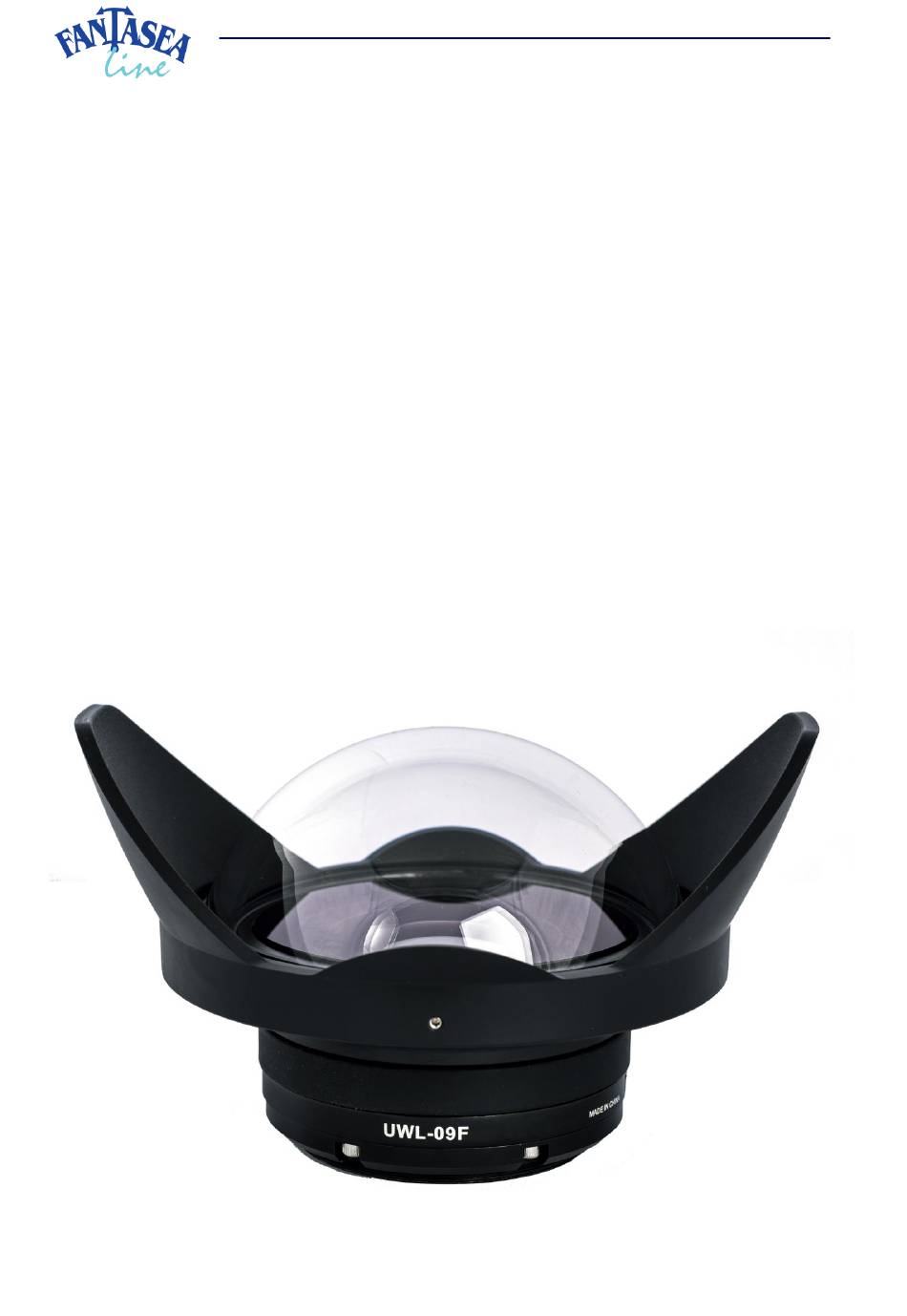

- Page 1 Fantasea Line UWL-09F Wide Angle Lens Cat. No. 5157 Instruction Manual UWL-09F Wide Angle Lens Instruction Manual 20190213...
-
Page 2: Specifications
INTRODUCTION The Fantasea UWL-09F Wide Angle Lens is a quality “wet” wide angle conversion lens that fits onto the housing 67mm lens port thread and can be installed and removed during the course of the dive. It is perfect for photographing seascapes, divers, ship wrecks and schools of fish without moving further away from the subject, thereby still taking full advantage of water clarity and artificial light sources. -
Page 3: Included In Package
Secure String 2.5mm Allen Key Type B Adaptor 1. UWL-09F Macro Lens 5. Type B Adaptor Kit 2. Rear cap 6. Secure string kit 3. Front cap 7. Padded carrying case 4. Microfiber cloth UWL-09F Wide Angle Lens Instruction Manual 20190213... - Page 4 COMPATIBILITY The UWL-09F Wide Angle Lens can be mounted on 67mm threaded lens ports or other lens ports by using an adaptor. For a selection of adaptors available, please visit our website - www.fantasea.com INSTRUCTIONS FOR USE 1. Please use the utmost care and do not use excessive force when assembling and disassembling the lens, in order not to cause any damage to the product.
- Page 5 4). If the lens properly screws all the way in and sits within a fixed and stable position, the configuration is most likely compatible with your housing. Otherwise, replace the type-B adaptor with the type-A adaptor again. Image #3 Image #4 UWL-09F Wide Angle Lens Instruction Manual 20190213...
- Page 6 It is recommended to attach the secure string of the lens to the housing, in order to secure the lens. If making use of an arm in the system, secure strings can be secured to the arm rather than to the housing. UWL-09F Wide Angle Lens Instruction Manual 20190213...
-
Page 7: Important Notice
9. Note that water must enter the gap between the lens port and UWL-09F lens glass when using the lens underwater. Therefore, when diving with the lens, it is best to install it underwater. - Page 8 10 minutes will eventually dissolve the fog. 14. It is recommended to use an external strobe when the UWL-09F Lens is mounted on the housing. The UWL-09F Lens blocks the camera internal flash, resulting in underexposed or shaded images.
-
Page 9: Care And Maintenance
Store the lens in a dry and protected area. Storing the lens in a low humidity environment will decrease the chances of the lens fogging up when submerged in water. f. Do not store the lens in presence of chemicals, solvents or fuels. UWL-09F Wide Angle Lens Instruction Manual 20190213... -
Page 10: Fantasea Product Consumer Limited Warranty
FANTASEA PRODUCT CONSUMER LIMITED WARRANTY “Fantasea” warrants this Fantasea Line branded product against defects in materials and workmanship under reasonable use for a period of ONE (1) YEAR, (two years, where required by law as determined by the origin of the authorized dealer). This warranty is effective from the date of retail purchase from Fantasea or an authorized Fantasea dealer, by the original end-user purchaser (“Warranty Period”).
