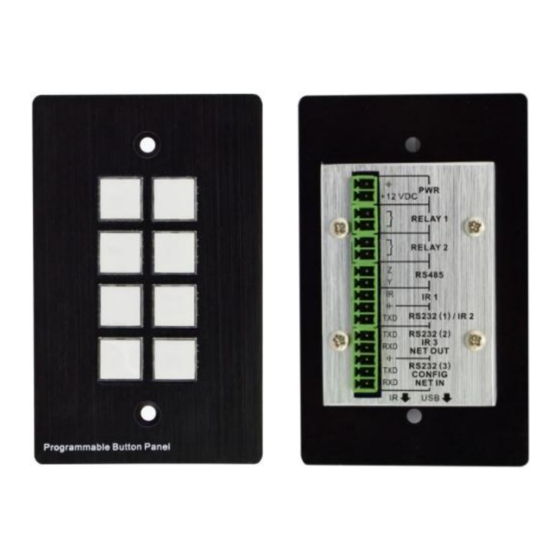

Button panel, 8 programmable buttons, black faceplate

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

CS-BP8-B

User Manual

Button panel, 8 programmable buttons, black faceplate

Table of Contents

Need help?

Do you have a question about the CS-BP8-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonetonix CS-BP8-B

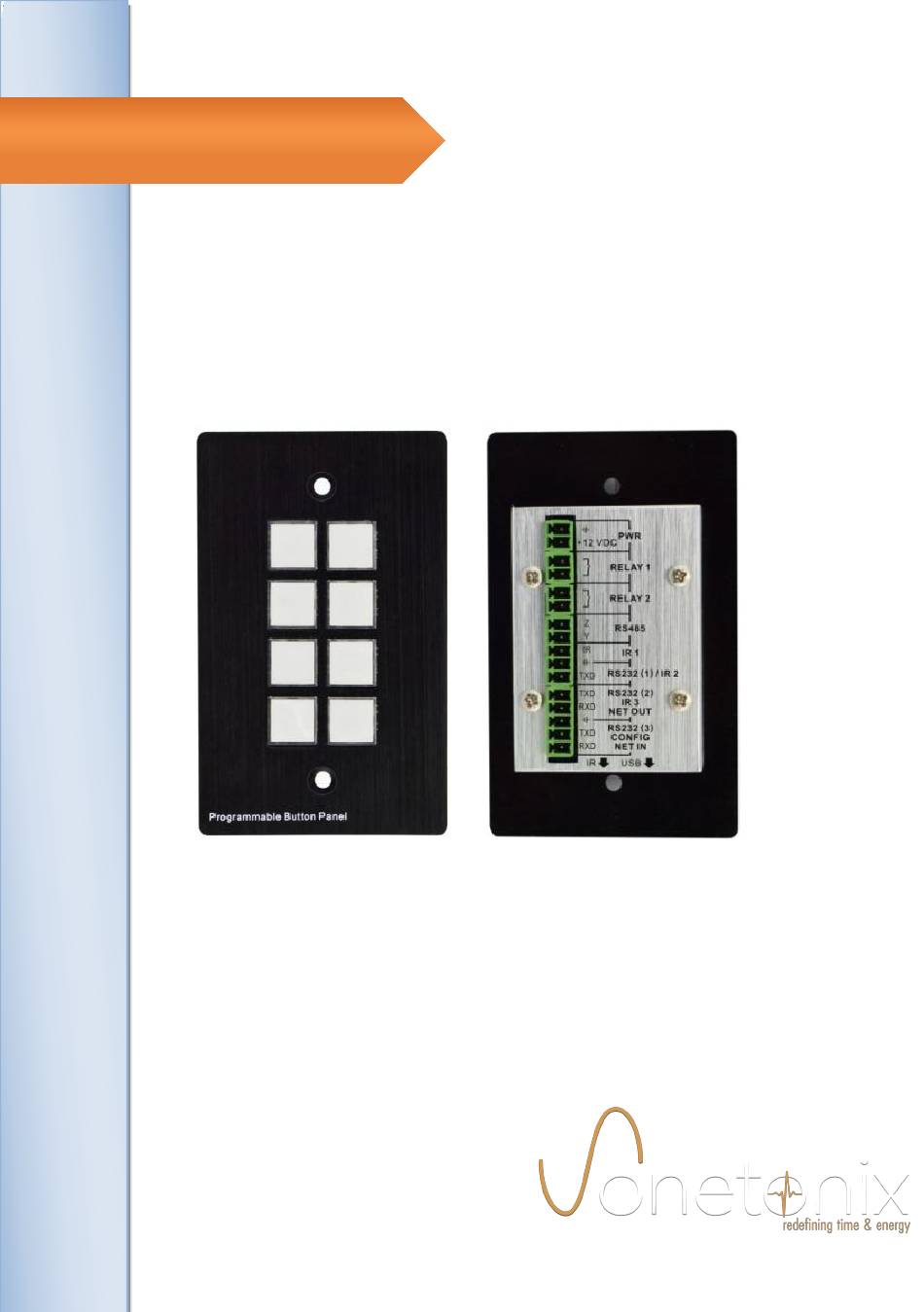

Page 1 CS-BP8-B User Manual Button panel, 8 programmable buttons, black faceplate...
Page 2 CS-BP8-B User Manual Button panel, 8 programmable buttons, black faceplate...
Page 3 CS-BP8-B User Manua Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till April 2015.
Page 4 CS-BP8-B User Manua SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...
Page 5: Table Of Contents
CS-BP8-B User Manua Table of Contents ....................... 1 1. Introduction ............1 1.1 Introduction to the Programmable Control Panel ......................1 1.2 Features ....................1 1.3 Package List .......................2 1.4 Installation ......................2 2. Panel Descriptions ......................2 2.1 Front Panel .......................3 2.2 Side Panel ......................
Page 6: Introduction
CS-BP8-B User Manua 1. Introduction 1.1 Introduction to the Programmable Control Panel The programmable control panel is a Wall Control Panel. Every button is programmable and works either individually or together. The programmable control panel is built in the programmable 3 RS232, 1 RS485,3 Infrared& 2 Relay, and 1 mini USB for programming.
Page 7: Installation
CS-BP8-B User Manua 1.4 Installation Follow the steps to install the device: Firstly, dig a hole on the desk to the size marked on the aperture paper (shown in Figure 1-1). Secondly, put the device into the hole and adjust it to flush with the table (shown in Figure 1-2).
Page 8: Side Panel
CS-BP8-B User Manua (For the specific transparent paper table, please contact the local distributor or reseller for it) 2.2 Side Panel Mini USB Connector: 1. Communicate with PC which uses PS-WP to programthe buttons. 2. Transmit the infrared data when learning IR (Optional).
Page 9: Rear Panel
CS-BP8-B User Manua 2.3 Rear Panel ① ③ ④ ② The programmable control panel has various ports in the rear panel, including Lopping port, RS232 port, RS485 port, IR port, Relay port and Power port. Below is the introduction: Power connector: 12VDC. Be sure that the “+” and “-” never be mixed or wrong connection.
Page 10: Connections
CS-BP8-B User Manua 3. Connections 3.1 System Diagram The programmable control panel can active different ports at one time. It means every button can send the RS232 and RS485 commands, IR code and control the relay at the same time. The demo system diagram as below: 3.2 Connection of Programming and Looping...
Page 11 CS-BP8-B User Manua Programming Connection Several pieces programmable control panels can be also looped to be a system, for control more devices. It is looped by the inter RS232 setting. Please check the demo picture as below: Several programmable control panels Looping connecting After connect the programmable control panels as above, and then we should set the ID of each programmable control panel by PS-WP.
Page 12: System Operations
CS-BP8-B User Manua Last class… Second class Detailed looping connecting Note: Up to 99 programmable control panels can be looped within one system. However, to achieve normal interaction, loop less programmable control panels (10 tops) in the system. 4. System Operations 4.1 USB Driver Installation...
Page 13: Main Menu
CS-BP8-B User Manua We will introduce all the configurations one by one. 4.2.1 Main Menu The main menu includes file management, system model, connection type and help. 1) File management: Open/Save/Save as a configuration. After program, user can save the configuration to a file, so that you can use the same configuration next time.
Page 14 CS-BP8-B User Manua NOTICE: When select the model, it will pop up “Output Port Selection” dialog, user can select different RS and IR types, depend on the uses of the two shared ports. The dialog is as the picture below: The output port set in PS-WP and the port used in the programmable control panel is corresponding.
Page 15: Panel/Key Setting
CS-BP8-B User Manua 1：Com, connect by serial port. 2：USB, connect by mini USB. 3：Disconnect, disconnect the connection. 4：Upload: upload the programmed data to the programmable control panel. It will clear all the old data in the programmable control panel. 5：Clear, clear the data in the programmable control panel.
Page 16 CS-BP8-B User Manua Key Action Type： 1. Press: Execute events when press button. 2. Release: Execute events when release button. 3. Page: Built-in most 4 actions, actions need to be switched by other buttons, press to execute. 4. Toggle: Built-in most 4 actions, actions will loop run when press.
Page 17: Action List
CS-BP8-B User Manua 3. Yellow Keys: Keys 33-36, all are virtual keys. Key 33 and 34 are for I/O control, which is not supported with the programmable control panel. Key 36 is a start action, if add events to this action, when the programmable control panel is power on, it will execute the events in this action.
Page 18: Event Setting
CS-BP8-B User Manua Event setting Event setting includes RS232, IR, I/O, Relay, Delay, Compare, LED, Page, Loop and Toggle setting. Before set events, an action must be added first. The following introduction will show you the setting of each event: ...
Page 19 CS-BP8-B User Manua times”, the send times and the delay between times can be set. See in picture below: 3) The send port must be selected as the same as model setting, otherwise the event cannot be added. 4) User can set the event name. It is optional function, not necessary.
Page 20 CS-BP8-B User Manua Notice: When editing finish, remember to save the editing, and thenpress “OK”. There are two send types: send once and send more times. When select “more times”, the send times and the delay between times can be set. See in picture...
Page 21 CS-BP8-B User Manua This item is for the replay ports setting. The setting is as the picture below: Port Action: “On” Send Type for connected, “Off” for disconnected.  Delay setting This item is to set a delay time, user can add a delay between two events; so when one event is finished, it will delay a certain time then start another event.
Page 22 CS-BP8-B User Manua Enter the compare commands, don’t miss any character. 1) The send port must be selected as the same as model setting, otherwise the event cannot be added. And port 1 cannot be used for compare, for there is no a receive pin in this port.
Page 23 CS-BP8-B User Manua White buttons can be set to type “page” that include four actions. To change different actions, it will need other white buttons to active the page action number. Here take a example to show you the use of this function: Take button1 for example: click key1 and select the action type “page”, add the...
Page 24 CS-BP8-B User Manua this: a) When press the button5 and then button1, the button1 will execute the event of num1, press button1 more times it will execute num1 more times; b) When press the button6 and then button1, the button1 will execute the event of num2, press button1 more times it will execute num2 more times;...
Page 25: Event List
CS-BP8-B User Manua The setting steps of toggle are similar with the page setting. But toggle performs differently, for the actions in it are loop running, it will perform as below (take the same example like page function): a) When press the button5 and then button1, the button1 will execute the event of num1, press button1 more times it will execute num2, then num3->num4->num1 and so on.
Page 26 CS-BP8-B User Manua Sonetonix...
Page 27: Specification
CS-BP8-B User Manua 5. Specification Specification 3 x RS232, 1 x RS485,3 x Program Port USB or RS232 Output Port Infrared, 2 xRelay Serial Control Baud Rate 9600 baud, 8 data bits, 1 RS232 Port And Protocol stop bit,no parity...
Page 28: Troubleshooting & Maintenance
CS-BP8-B User Manua 7. Troubleshooting & Maintenance 1) When the control panel cannot work, please check and make sure the power cord connection is well, plug cannot be mixed or connect wrong. Then restart, if still not work, the control panelmay be broken. Please send it to the dealer for repairing.
Page 29: After-Sales Service
CS-BP8-B User Manua 8. After-sales Service If there appear some problems when running the device, please check and deal with the problems reference to this user manual. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years, which starts from the first day the product leaves warehouse (traceable through the SN mark).
