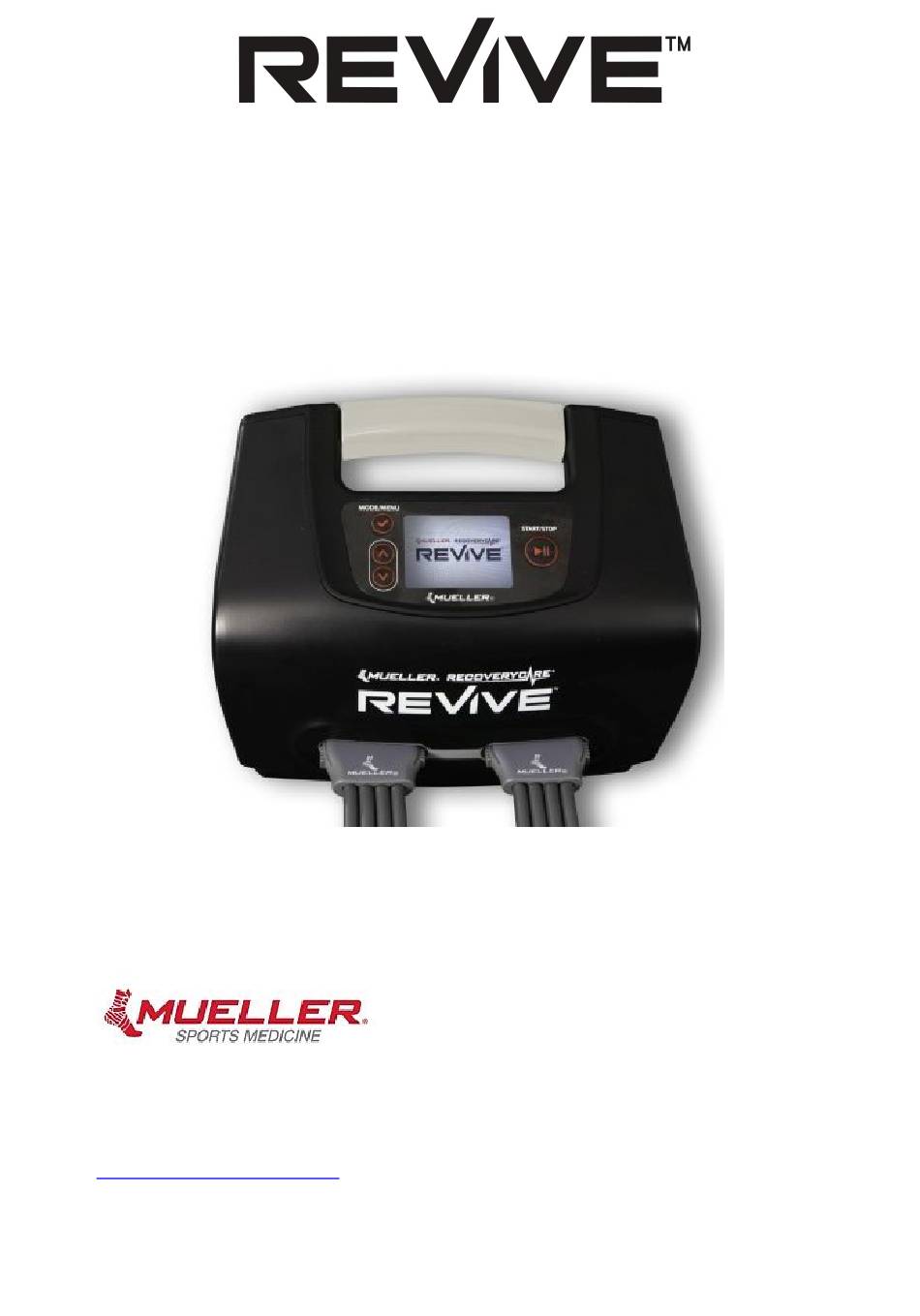

Revive M4 Model 737R
User Manual
One Quench Drive
Prairie du Sac, WI 53578
+1-608.643.8530, +1-800-356-9522
www.muellersportsmed.com
L98005H4R-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Revive M4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mueller Revive M4

Summary of Contents for Mueller Revive M4

  • Page 1 Revive M4 Model 737R User Manual One Quench Drive Prairie du Sac, WI 53578 +1-608.643.8530, +1-800-356-9522 www.muellersportsmed.com L98005H4R-C...

  • Page 3: Table Of Contents

    Indications for Use ................ 6 About Revive M4 ................6 Components of the Revive M4 System ........13 How to Operate the Revive M4 System ........16 Using the REVIVE™ Mobile Application ........43 Maintenance and Storage ............68 10. Troubleshooting ................71 11.

  • Page 5: Important Safety Information

    Mueller Sport Medicine inc. User Manual 1. Important Safety Information Read all instructions before using the Revive M4 system for the first time. Warning: Contraindications for Use • This system is intended for use by people in good health. This system...
  • Page 6 30–85%rH, non-condensing. • Use the Revive M4 system up to 3000m above mean sea level. • To prevent any damage to the Revive M4 system, keep it away from dust, lint, and dirt. Keep away from sources of heat or moisture.

  • Page 7: Revive M4 Specifications And Dimensions

    Revive M4 Model 737R Mueller Sport Medicine inc. User Manual 2. Revive M4 Specifications and Dimensions Model: 737R, appliance coupler, transportable, rated: 100-240 VAC, 50-60 Hz, internal backup battery: 11.1V, 5000 mAh Type of protection against electric shock Class II...

  • Page 8: Labels

    Revive M4 Model 737R Mueller Sport Medicine 3. Labels The following labels and symbols appear on the Console, garments and/or packaging. Symbol Description Location IP21 Degree of protection against ingress of water On Console base Read instructions before use On Console base...
  • Page 9 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Symbol Description Location Contraindications label On package Fragile, handle with care On package Keep dry On package This side Up On package Keep away from sunlight On package Transportation & storage humidity limitation On package Transportation &...

  • Page 10: Indications For Use

    5. About Revive M4 Revive M4 is intended for use by people in good health. As noted above, Revive M4 simulates the kneading and stroking action of manual treatment by use of an inflatable garment that fills and deflates, applying a directional compress-and- release treatment.
  • Page 11 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Recover and Warm-up Programs Recover and Warm-up use the Sequential mode that applies a directional treatment, beginning distally and progressing towards the torso, then releasing (see Figure 1). This applies a deep, slow treatment.
  • Page 12 Revive M4 Model 737R Mueller Sport Medicine Isolation Isolation uses the ISO cycle providing use-defined two chamber coverage. There are three options (see Figure 2). The user can select the pair of chambers (zones) to be inflated: • Chambers 1 and 2 – Distal zone •...
  • Page 13 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Interval Interval applies periods of inflation (Time On) using the Sequential mode (see Figure 1) alternated with intervals of no inflation (Time Off). Time On alternates with intervals of Time Off for a treatment time of up to 8 hours.
  • Page 14 Revive M4 Model 737R Mueller Sport Medicine Flow The Flow Cycle is described in the following table: Chamber 1 Chamber 2 Chamber 3 Chamber 4 Sequence Sequence Sequence Sequence Sequence Sequence Sequence Sequence Progress Progress Progress Progress Sequence – instance of inflation and release Progress –...
  • Page 15 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Factory Default Program Settings The Revive M4 Console is supplied with the following default program settings. Time Time Cycle Pre- Pressure Time Hold Release Total Program Zone User Modification Mode...
  • Page 16 Revive M4 Model 737R Mueller Sport Medicine To return each program to the default settings: a. Press repeatedly until the required program screen is displayed: b. Press until the parameters screen is displayed. c. Scroll down using until reaching DEFAULT.

  • Page 17: Components Of The Revive M4 System

    Revive M4 Model 737R Mueller Sport Medicine inc. User Manual 6. Components of the Revive M4 System The Revive M4 737R Console (See Figure 4) The Console takes air from the room environment and sends it to the individual air chambers in the garment The Console then vents the air from the garments, there is a brief pause, and the treatment cycle repeats.
  • Page 18 (See Figure 5) If you use only one garment, insert this plug into the unused air outlet on the front of the Revive M4 Console, to seal it off and prevent air from escaping (see Figure 20). DC Power Adapter (See Figure 6) The DC Power Adapter receives 100–240 VAC, 50–60 Hz AC power and...
  • Page 19 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Compression Garments (See Figure 8, Figure 9, Figure 10, Figure 11, and Figure 12). A variety of garments are available. Revive Full Leg Boot and Revive Calf Boot are available in several sizes. Revive Half Jacket and Revive Pants are adjustable.

  • Page 20: How To Operate The Revive M4 System

    Revive M4 Model 737R Mueller Sport Medicine 7. How to Operate the Revive M4 System Following is a description of the Console operating panel and the various settings and displays (see Figure 13 and The Console Controls). Read this section before operating the Console for the first time.
  • Page 21 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual The Console Display Screen Home Screen Displayed Screen Function Displays pressure setting at the most distal pressure zone. • Pressure may be increased or decreased from this home screen (see instructions below).
  • Page 22 Revive M4 Model 737R Mueller Sport Medicine Program and Cycle Mode Display Screens The following programs and cycle modes are displayed on the screen. Displayed Program/Cycle Mode Function Recover Warm-Up Isolation Interval Custom • Sequential cycle mode selected L98005H4R-C...
  • Page 23 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Displayed Program/Cycle Mode Function • Wave cycle mode selected • ISO cycle mode selected • Flow cycle Mode selected • Pretreatment selected L98005H4R-C...
  • Page 24 Revive M4 Model 737R Mueller Sport Medicine Treatment Parameters Screens The following treatment parameters (except Time) are displayed for all programs. Displayed Screen Function Displayed screen during Pressure setting Displayed screen during Time setting (not displayed in Interval) Displayed screen during Hold setting...
  • Page 25 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Displayed Screen Function Displayed screen during reverting to Default setting Isolation Program Zone Selection Screens The following zone selection screens are displayed for Isolation Displayed Screen Function Displayed screen during Proximal setting Displayed screen during Distal setting Displayed screen during Mid.
  • Page 26 Revive M4 Model 737R Mueller Sport Medicine Displayed Screen Function Displayed screen during Time Off setting Displayed screen during Total setting Reading Console Usage Data To display the accumulated hours the Console has operated, press and hold for a few seconds until the Usage screen appears.
  • Page 27 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Step 1: Set up the Revive M4 Console Caution: When the system has been stored in extreme temperature conditions of -20°C (-4°F) or 70°C (158°F) between uses, wait for two (2) hours before using the system.
  • Page 28 Revive M4 Model 737R Mueller Sport Medicine Step 2: Prepare for Treatment • Always wear light clothing underneath the garment, for hygienic reasons, to avoid irritation and to absorb perspiration. • Do not wear the garment directly over bare skin.
  • Page 29 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Revive Arm Sleeve a. Insert the arm into the garment. b. Pull the garment over the shoulder to cover it. c. Wrap the fastening strap around the body, under the untreated arm.
  • Page 30 Revive M4 Model 737R Mueller Sport Medicine f. Put on the garment, as you would a jacket. Make sure the armpit chamber is tucked into the Arm Sleeve. g. Pull the side fastener around your torso and lightly fasten the hook-and-loop tabs at the top and bottom.
  • Page 31 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Revive Impact Pants a. Use Revive Impact Pants in a supine position (lying face up on a bed or couch). b. Wear clean cotton socks and light cotton unrestrictive pants (such as sweatpants) under Revive Impact Pants to absorb perspiration, prevent irritation, and keep Revive Impact Pants clean.
  • Page 32 The garment should not fit too tightly; you should be able to insert three fingers into the garment when it is zipped closed before inflation. If the garment is too tight, you need a larger size. Contact Mueller Sport Medicine.
  • Page 33 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Step 4: Connect the Garment Hose Bundle to the Console Note: Hold the Console handle with one hand while connecting or disconnecting the hose bundle with your other hand. a. Securely insert the garment hose bundle connectors, with the logo facing up, into the air sockets on the Console (see Figure 19).
  • Page 34 Revive M4 Model 737R Mueller Sport Medicine Step 5: Select the Treatment Program a. Turn On the Power Switch. The following screen is displayed, showing the console name and model, and the Firmware version. After two seconds, the Home screen is displayed, showing the last selected program and its pressure and time settings.
  • Page 35 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Step 6: Set Cycle Mode (Custom Program only) a. Press repeatedly until the following screen is displayed: b. Press and hold until the following screen is displayed: c. Press . The highlighted cycle blinks.
  • Page 36 Revive M4 Model 737R Mueller Sport Medicine Step 7: Set Zone (Custom Program - ISO Cycle and Isolation Program only) a. Press repeatedly until the following screen is displayed: b. Press and hold until the following screen is displayed: c. Press .
  • Page 37 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Step 8: Set Time On, Time Off, and Total (Interval Program only) a. Press repeatedly until the following screen is displayed: b. Press and hold until the following screen is displayed: c.
  • Page 38 Revive M4 Model 737R Mueller Sport Medicine Note: Time Off is the duration of pause between recurrent treatments (Time On). Time Off can be set between 10–90 minutes in 5-minute increments. j. To confirm selection, press k. Press . The Total (hours) value is highlighted: l.
  • Page 39 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Step 9: Set Treatment Pressure a. Press repeatedly until the required program screen is displayed: b. Press and hold until the following screen is displayed: c. Press . The highlighted Pressure value blinks.
  • Page 40 Revive M4 Model 737R Mueller Sport Medicine Step 10: Set Treatment Time a. Press The following screen is displayed. b. Press . The highlighted Time value blinks. c. To select Time, press d. To confirm selection, press Note: The minimum time setting is 10 minutes.
  • Page 41 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Step 11: Set Hold Time Considerations for Choosing Hold Time The Hold time changes the time in which air pressure is maintained in the garment(s) at the end of the treatment cycle before deflation.
  • Page 42 Revive M4 Model 737R Mueller Sport Medicine Step 12: Set Release Time a. Press The following screen is displayed. b. Press . The highlighted Release value blinks. c. To select Release, press d. To confirm selection, press Note: Release time is the duration between treatment cycles and can be set between 10–70 seconds.
  • Page 43 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Step 13: Set Gradient a. Press The following screen is displayed. b. Press . The following screen is displayed: c. Press . The highlighted zone blinks. d. To select the zone pressure, press e.
  • Page 44 Revive M4 Model 737R Mueller Sport Medicine m. To confirm selection, press n. To proceed to the next zone, press . the following screen is displayed: o. Press . The highlighted zone blinks. p. To select the zone pressure, press q.
  • Page 45 Suggested treatment time is 15–30 minutes before your workout. Alternatively use Revive M4 for a relaxing treatment at the end of the day, or after exercise to relax and soothe tired aching muscles.
  • Page 46 Revive M4 Model 737R Mueller Sport Medicine Step 15: End the Treatment a. When the treatment time is complete, the treatment cycle stops. If you need to stop the treatment in the middle, press b. At the end of the treatment, turn Off the Power Switch.

  • Page 47: Using The Revive™ Mobile Application

    The Console is fully functional without using the REVIVE™ Mobile Application. In case of communication failures between the mobile application and the Revive M4 Console, see chapter 11 - Troubleshooting Wireless Connection Problems. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 48 Internet access is required for installing the REVIVE™ Mobile Application. The last version of the application must be downloaded. Step 2: Connect to a Revive M4 Console a. Turn On the Power Switch. b. To open the application, tap icon on your smartphone screen.
  • Page 49 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Followed by the console selection menu. Select the Revive M4 console. The Bluetooth turn-on message follows. c. Turn On Bluetooth on your smartphone. L98005H4R-C...
  • Page 50 Revive M4 Model 737R Mueller Sport Medicine d. To search your console, tap . The Search screen is displayed. e. To select your console, tap the Console on the Search screen. The Connection Approval message is displayed on the Search screen and...
  • Page 51 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Main Screen Following is a description of the Main Screen, which includes all operations of the Mobile App. Read this section before operating the Mobile App for the first time.
  • Page 52 Revive M4 Model 737R Mueller Sport Medicine Main Screen Buttons Control Function Menu button Time button: Used for selecting treatment time Pressure button: Used for selecting treatment pressure Program/Mode button(s): opens a scrolling list for selecting Program • Recover • Warm-up •...
  • Page 53 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Control Function Advanced buttons used for selecting: Advanced settings with gradient pressures Advanced settings without gradient pressures Play button used for: • Updating setting in Console • Starting treatment Load button: Used for loading a treatment program...
  • Page 54 Offline Mode Menu The View Usage, and are available only in Online mode (i.e., only when the Mobile App is connected to an Revive M4 Console). Menu Options: • Device List - Return to Device List screen e.g., connect to a different console •...
  • Page 55 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual a. Tap View Usage. The Usage History screen opens: You can share the Usage History log as follows: b. Tap A standard Share-via-Application screen opens (different depending on devices and operating systems).
  • Page 56 Tap My Revive Stats. The My Revive Stats screen opens: You can view the usage statistics. • Offline Revive - Opens Main Screen for unconnected Revive M4 Console • About - Opens the About REVIVE™ page on the Mueller Sport Medicine website •...
  • Page 57 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Naming your Console a. Tap and hold the console icon on the Main Screen for about 2 seconds, until the Rename Device dialog box with virtual keyboard opens. b. Tap the new name using the virtual keyboard.
  • Page 58 Revive M4 Model 737R Mueller Sport Medicine Setting Treatment Parameters • Selecting treatment pressure a. Tap the Pressure button. The Select Pressure screen opens: b. To select the required pressure, swipe up/down the pressure values. c. To approve the selected pressure, tap OK or tap CANCEL to cancel selection and return to the Main Screen.
  • Page 59 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual • Selecting treatment time a. Tap the Time button. The Select Treatment Time screen opens: b. To select the required treatment time, swipe up/down the time values. To select continuous treatment until stopped by user, swipe right the Stay on button.
  • Page 60 Revive M4 Model 737R Mueller Sport Medicine • Setting Program/Mode a. Tap the Program/Mode button. The Select Program/Mode screen opens: b. To select the required program, swipe up/down the program names. c. To approve the selected program, tap OK or tap CANCEL to cancel selection and return to the Main Screen.
  • Page 61 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual • Program Settings Recover and Warm-up Programs a. Tap the Program Settings button. The Hold time and Release time screen opens: b. To select the required Hold/Release time, swipe up/down the Hold/Release values.
  • Page 62 Revive M4 Model 737R Mueller Sport Medicine Isolation Program a. Tap the Program Settings button. The Hold time, Release time, and Zones screen opens: b. To select the required Hold/Release time, swipe up/down the Hold/Release values. c. To select the treated zone, tap the zone radio button.
  • Page 63 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Interval Program a. Tap the Program Settings button. The Hold time, Release time, Total Time, and Time off screen opens: b. To select the required Hold/Release/Total time and Time off, swipe up/down the Hold/Release/Total time and Time off values.
  • Page 64 Revive M4 Model 737R Mueller Sport Medicine Custom Program a. Tap the Program Settings button. The Hold time, Release time, Flow frequency, Pretreatment, and Cycle screen opens: b. To select the required Hold time or Release time, swipe up/down the Hold time or Release time values.
  • Page 65 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Advanced Tap the Advanced button. The Advanced Treatment Settings screen opens: Note: Swipe the garment illustration to select Revive Arm Sleeve, Revive Pants, Leg garment (Revive Full Leg Boot or Revive Calf Boot), or Half Jacket.
  • Page 66 Revive M4 Model 737R Mueller Sport Medicine Setting Gradient Pressures a. To enable gradient pressures, swipe right the Gradient Pressures button or swipe left to disable gradient pressures. b. To increase/decrease pressure of each zone, swipe right/left the pressure value.
  • Page 67 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Tip: You can quickly decrease the overall pressure by swiping left zone-1 pressure or quickly increase the overall pressure by swiping right zone-4 pressure. The Advanced button is displayed as follows when the interface is locked...
  • Page 68 Revive M4 Model 737R Mueller Sport Medicine Saving a Treatment Program Created from Current Settings a. Tap The New Treatment Name dialog box opens on the Main Screen. b. Tap the Enter Program name field to assign a treatment name.
  • Page 69 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Loading/Deleting a Treatment Program a. To load a treatment program, tap The Saved Treatment Programs screen opens. b. To select a treatment program, tap the program on the list (Isolation 1 in the example above).
  • Page 70 Revive M4 Model 737R Mueller Sport Medicine Sharing a Treatment Program Settings that can be shared are those currently active in the Mobile App: • A current program whose settings are adjusted using the application • Settings read from the connected Console •...
  • Page 71 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Starting Treatment To start treatment, tap on the Main Screen. The Treatment Screen opens. • To adjust Time and/or Pressure, tap • displays the remaining treatment time. • To stop treatment, tap...

  • Page 72: Maintenance And Storage

    Revive M4 Model 737R Mueller Sport Medicine 9. Maintenance and Storage Cleaning the Console Caution: Disconnect the Console from electrical outlet before cleaning. Let it dry completely before reconnecting it to the electrical outlet. • Wipe clean using a slightly damp cloth.
  • Page 73 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Storage a. Keep the Console, hoses and garments away from direct sunlight. b. Store in a dry, shaded place (see caution below). c. Do not twist or fold the hose bundle.
  • Page 74 Revive M4 Model 737R Mueller Sport Medicine Replacing the Battery Note: Use only batteries supplied by Mego Afek AC Ltd. To replace the battery: a. Open the cover of the battery compartment using a Philips screwdriver. b. Carefully remove the used battery from its compartment.

  • Page 75: Troubleshooting

    Revive M4 Model 737R Mueller Sport Medicine inc. User Manual 10. Troubleshooting Note: Before continuing, inspect all accessories for any defects. Console Error Messages Error Message Meaning Corrective Action See Table 3 See Table 3 Error 5 See Table 3...
  • Page 76 Revive M4 Model 737R Mueller Sport Medicine Displayed when Mobile App is connected to Console and battery is almost empty. After tapping OK, the message is displayed again after a few minutes L98005H4R-C...
  • Page 77 Revive M4 Model 737R Mueller Sport Medicine inc. User Manual Table 3 - Troubleshooting Guide Symptom Possible Cause Corrective Action The Console is not working. No electricity and no Inspect the electrical wall outlet. battery power. Additionally, replace the battery pack.

  • Page 78: Troubleshooting Wireless Connection Problems

    • Note proximity to RF emitters such as Wi-Fi access points, RFID anti-theft devices, or other wireless transmitting devices may cause communication disturbances. Make sure the Revive M4 Console is located at least 3 meters away from such emitters. •...

  • Page 79: Bluetooth Wireless Technology Information

    Revive M4 Model 737R Mueller Sport Medicine inc. User Manual 13. Bluetooth Wireless Technology Information Bluetooth Compliance Version 4.2 low energy Operating Frequency 2.402–2.480 GHz Output Power 0 dBm Operating Range 3-meter radius (line of sight) Network Topology Star - bus...

  • Page 80: Emc Manufacturer Declarations

    • The essential performance of the Revive M4 system as evaluated in IEC 60601-1-2 includes treatment completing cycle, presentation on the display is not interfered, and treatment parameters are not changed unintentionally.
  • Page 81 User Manual Guidance and Manufacturer’s Declaration – Electromagnetic Emission The Revive M4 Console is intended for use in the electromagnetic environment specified below. The customer or the user of the console should assure that it is used in such environment.
  • Page 82 Mueller Sport Medicine Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The Revive M4 Console is intended for use in the electromagnetic environment specified below. The customer or the user of the Console should assure that it is used in such an environment.
  • Page 83 Recommended Separation Distances between Portable and Mobile RF Communication Equipment and the Console The Revive M4 console is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the console can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communication equipment (transmitters) and the console as recommended below, according to the maximum output power of the communications equipment.
