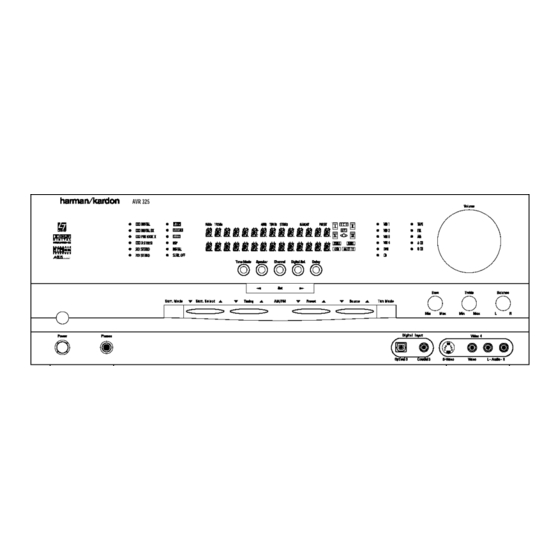

Thank you for purchasing a Harman Kardon AVR 325. This Quick-Start
Guide will help you with a basic system installation. For detailed information
on any step, please refer to the Owner's Manual pages referenced in this
guide. We strongly recommend that you read the Owner's Manual for
complete details on how to install, configure and operate the AVR 325,
as well as for the important safety information it contains.
Figure 1 – Speaker Placement
The colors shown for each speaker correspond to
the matching output terminal connection on the
back of the AVR 325 (see page 8).
Connections Color Guide
Audio Connections
Left
Right
Front
Center
Surround
Subwoofer
Surround Back
Digital Audio Connections
Coax
Optical
Video Connections
Composite
S-Video
Match the colored jacks on the AVR 325 to the appropriate
jacks on your source equipment or speakers. The colors are
standardized, but not all equipment or connectors use them.
AVR 325 QUICK-START GUIDE
FRONT
RIGHT
SPEAKER
CENTER
SPEAKER
(Green)
FRONT
LEFT
SPEAKER
(Red)
(White)
SUBWOOFER
(Purple)
SURROUND
LEFT
SPEAKER
(Blue)
SURROUND
BACK
LEFT
SPEAKER
(Brown)
SURROUND
RIGHT
SPEAKER
(Gray)
SURROUND
BACK
RIGHT
SPEAKER
(Tan)
Step 1. Place your speakers in the listening room
(see page 18).
SPEAKER PLACEMENT

Advertisement

loading

Summary of Contents for Harman Kardon AVR 325

  • Page 1 Owner’s Manual pages referenced in this guide. We strongly recommend that you read the Owner’s Manual for complete details on how to install, configure and operate the AVR 325, as well as for the important safety information it contains.
  • Page 2 SUBWOOFER LEFT SPEAKER Step 2. Connect the speakers to the receiver: red (+) on speaker to colored (+) on receiver and black (–) to black (–) (see page 15). Step 3. Connect the Subwoofer Pre-Out jack to the Line-In jack on your subwoofer.
  • Page 3 Set the Balance to 12 o’clock, and the Volume to –10dB. Sit in the listening position and hold the remote in front of you at shoulder level, pointing at the AVR 325. Press the SPL button for 3 seconds, and release it when the LED flashes amber.
  • Page 4 Coax Device Connection Options : Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 4, Coax 3 and Optical 3 inputs are on the front panel of the receiver. Device...
