TOWABLE WOOD CHIPPER
ATVWC3
198270
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATVWC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan Attachments ATVWC3

Summary of Contents for Titan Attachments ATVWC3

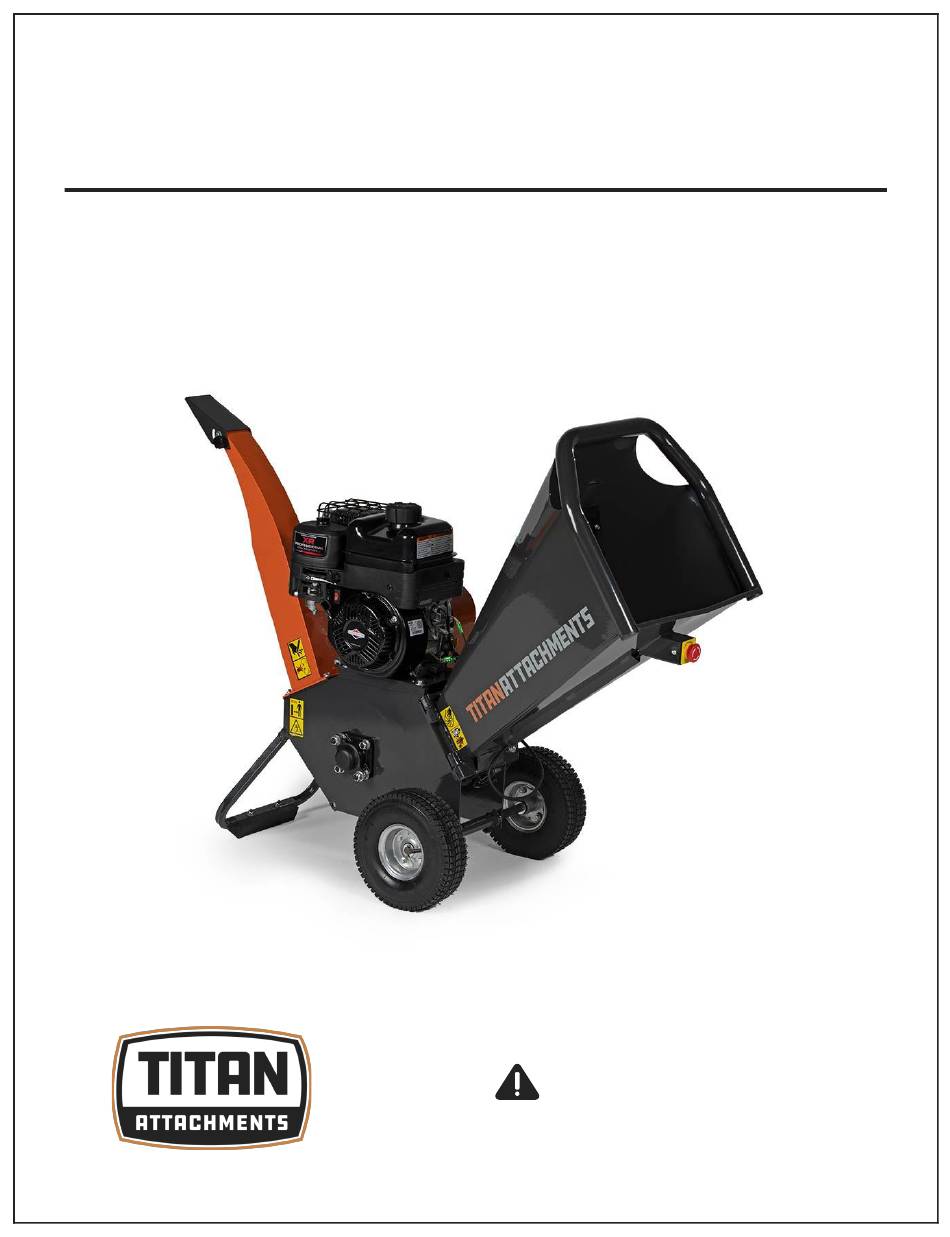

  • Page 1 TOWABLE WOOD CHIPPER ATVWC3 198270 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2 PART 1: GENERAL SAFETY RULES WARNING Read this Safety & Operating Instructions manual before you use the Woodchipper. Become familiar with the operation and service recommendations to ensure the best performance of your machine. CAUTION This machine is designed solely to chip wood and must not be used for any other purpose.

  • Page 3: Protecting Yourself And Those Around You

    WHEN USING THE WOODCHIPPER NOTICE A. Always feed from the side. B. It is better to have a second trained operator within easy reach of the machine. C. Always maintain strict discipline and service machine at specified periods. D. Note direction of discharge chute and if necessary, note the wind direction to prevent debris from being blown into highway or where it could affect members of the public.

  • Page 4: Safety With Gasoline - Powered Machines

    A. Keep children and pets at least 50 feet from the working area and ensure they are under the watchful care of a responsible adult. B. Be alert and turn the machine off if children or pets enter the work area. C.

  • Page 5: General Safety

    GENERAL SAFETY WARNING Operating this Woodchipper safely is necessary to prevent or minimize the risk of death or serious injury. Unsafe operation can create several hazards for you. Always take the following precautions when operating: A. Your Woodchipper is a powerful tool, not a plaything. Exercise extreme caution always.

  • Page 6: A Note To All Users

    A NOTE TO ALL USERS List of warnings and cautions cannot be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this WOODCHIPPER in a safe manner. Contact the dealers for assistance in your area PART 1: GENERAL SAFETY RULES (CONT) SAFETY LABELS FOUND ON YOUR UNIT...

  • Page 7: Technical Specifications

    PART 2: Familiar with the Woodchipper TECHNICAL SPECIFICATIONS START RECOIL START ENGINE 6.5HP/7HP FOUR STROKES POWER GASOLINE/PETROL CHIPPER CAPACITY 3CBM/HOUR TO 5CBM/HOUR WOOD DIAMETER DIAMETER 100MM PERMITTED WOOD WIDTH 150MM CHIPPER BLADE TWIN REVERSIBLE BLADES TIRE 4.10/3.5-4 OVERALL HEIGHT 1080MM OVERALL LENGTH 1500MM WIDTH...
  • Page 8 PART 3: OPERATING THE WOODCHIPPER WARNING A. Read and understand all instructions, safety precautions, and/or warnings listed in “PART I: General Safety Rules” before operating the WOODCHIPPER. If any doubt or question arises about the correct or safe method of performing anything found in this manual, please contact the dealers in your area.
  • Page 9 OPERATOR ZONE WOOD CHIPPING NOTICE Woods and branches’ diameter should be no bigger than 120mm. WARNING Do not place your hands into the chute when loading. This is a very UNSAFE method and could result in injury to your hands. Do not reach or step across the rail while the Woodchipper is running.

  • Page 10: Regular Maintenance Checklist

    WARNING Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts to cool. Disconnect the spark plug wire, keeping it away fro mthe spark plug. Disconnect the Better Terminals (Electric Start Only). REGULAR MAINTENANCE CHECKLIST BEFORE EVERY 3 EVERY 25...

  • Page 11: Part 5: Troubleshooting And Parts List

    PART 5: TROUBLESHOOTING AND PARTS LIST WARNING Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts to cool. Disconnect the spark plug wire, keeping it away from the spark plug. TROUBLESHOOTING TABLE SYMPTOM POSSIBLE CAUSE The engine will not...

  • Page 12: Explosion View

    EXPLOSION VIEW DESCRIPTION DESCRIPTION FOUNDATION IN-FEED ROLLER EMERGENCY STOP FIXATION BLADE RUBBER FIXATION WHEEL AXIS EMERGENCY STOP SWITCH WHEEL SPRING PULLEY RUBBER BELT SWITCH BELT COVER SWITCH COVER CLUTCH ANGLE BAR BELT INNER COVER IN-FEED EXTENSION BEARING HANDLE BEARING FIXATION PLATE SWITCH EXTENSION SUPPORT FOOT FLANGE...
  • Page 13 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
  • Page 14 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
