Space Television Fibre SFS-002 User Manual

Optical fibre fusion splicer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

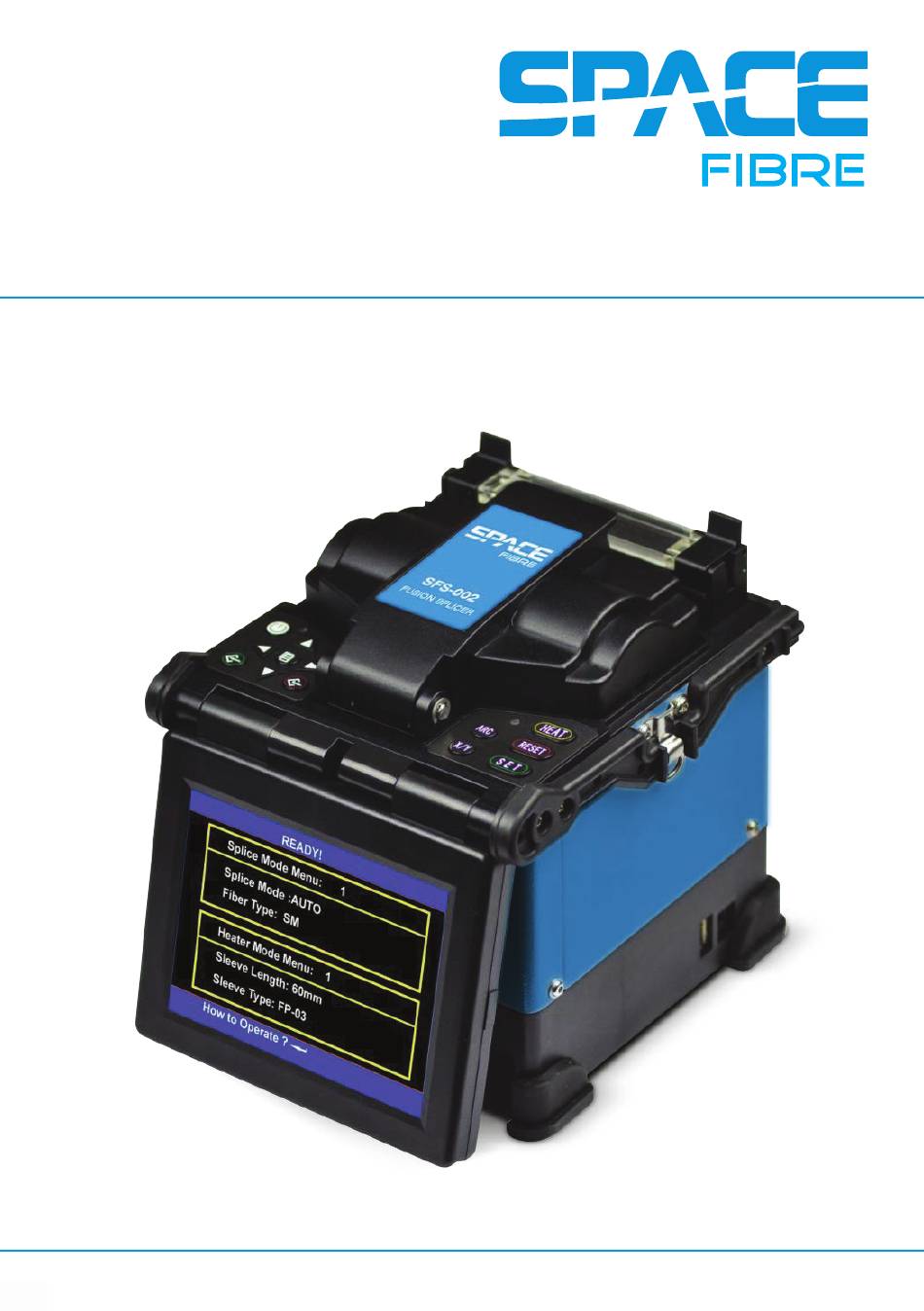

Optical Fibre
FusiOn splicer
SFS-002
User Manual
Helpline: 0861 40 41 42 •
Version 1.00
www.spacetv.co.za

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fibre SFS-002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Space Television Fibre SFS-002

  • Page 1 Optical Fibre FusiOn splicer SFS-002 User Manual Version 1.00 www.spacetv.co.za Helpline: 0861 40 41 42 •...
  • Page 2 Space Television reserves the right to change the specifications of the hardware and software described in these manuals at any time. Space Television cannot be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice.

  • Page 3: Table Of Contents

    SFS-002 Optical Fibre Fusion Splicer User Manual CONTENTS: 1. BrieF inTrodUcTion 1.1 Specifications 1.2 configuration of fusion splicer 1.3 Parts Name of fusion splicer 1.4 Descriptions of the keyboard 2. BASIC OPERATION 2.1 Descriptions of the power modules 2.2 AC operation 2.3 Battery supply operation 2.4 Turn on and turn off 2.5 Display brightness control...

  • Page 4: Brief Introduction

    SFS-002 Optical Fibre Fusion Splicer User Manual 1. BrieF inTrodUcTion The SFS-002 Fusion Splicer is imported and sold by Space Television (Pty) Ltd. 1.1 SPECIFICATIONS model SFS-002 Fusion Splicer Splicing Type Sm, mm, DS, NZDS Splicing loss 0.02dB(Sm), 0.01dB(mm), 0.04dB(dS) Return loss >60dB...

  • Page 5: Configuration Of Fusion Splicer

    SFS-002 Optical Fibre Fusion Splicer User Manual 1.2 conFigUrATion oF FUSion SPLicer Standard configurations of fusion splicer and accessories: Name Quantity SFS-002 Fusion Splicer 1 set Fibre Cleaver 1 set Fibre Stripper 1 pc AC Adaptor 1 pc Power cord 1 pc li Battery 1 pc...

  • Page 6: Parts Name Of Fusion Splicer

    SFS-002 Optical Fibre Fusion Splicer User Manual 1.3 SFS-002 FUSion SPLicer PArTS Windshield heater Power Switch keyboard lCD Screen Power module left keyboard Right keyboard HELPLINE 0861 40 41 42 • www.spacetv.co.za...

  • Page 7: Descriptions Of The Keyboard

    SFS-002 Optical Fibre Fusion Splicer User Manual 1.4 DESCRIPTIONS OF ThE kEYBOARD membrane figure of left and right keyboards keyboard Standby mode mode of manual operation mode of automatic mode of parameter menu operation Power switch Power switch Power switch Power switch To increase the brightness The optical fibre moves...

  • Page 8: Basic Operation

    SFS-002 Optical Fibre Fusion Splicer User Manual 2. BASIC OPERATION: The SFS-002 Fusion Splicer is capable of splicing various types of fibre optic cables. The compact size and light weight of the SFS-002 makes it ideal for use in any environment. The SFS-002 offers easy operation while ensuring that the minimum losses is achieved in every splice.

  • Page 9: Battery Supply Operation

    SFS-002 Optical Fibre Fusion Splicer User Manual 2.3 BATTery SUPPLy oPerATion The SFS-002 Fusion Splicer may be used while powered by the internal polymer lithium battery in the splicer 2.3.1 Checking of battery capacity While the SFS-002 Fusion Splicer is not connected to the AC power supply, press the "PUSh"...
  • Page 10 SFS-002 Optical Fibre Fusion Splicer User Manual 2.3 BATTery SUPPLy oPerATion cont. 2.3.3 Under Voltage Alarm The SFS-002 Fusion Splicer has been equipped with an “Under Voltage Alarm” function. if the capacity of the internal lithium battery is lower than the specified value (the default value around 10.3V), the splicer will automatically activate the alarm function.

  • Page 11: Turn On And Turn Off

    SFS-002 Optical Fibre Fusion Splicer User Manual 2.4 TUrn on And TUrn oFF TUrn on Press on the operator panel until the lED indicator lights turn from green to red, release the power button. When all of the motors return to the initial position, the screen shows the reset menu.

  • Page 12: Cover Fibre Protection Sleeve

    SFS-002 Optical Fibre Fusion Splicer User Manual 2.6 COVER FIBRE PROTECTION SlEEVE The installation of fibre protection sleeve 2.7 PREPARATION OF FIBRE END-FACE 2.7.1 Open the big and small clips of the cutter; push the sliding plate installed with blade from the end to the front.

  • Page 13: Place Fibre

    SFS-002 Optical Fibre Fusion Splicer User Manual 2.8 PlACE FIBRE 2.8.1 open shielding cover and left and right fibre clips. 2.8.2 Put the good fibre end face in the V-shaped groove; ensure the tip ofthe fibre between the tip of the electrode and V-shaped groove’s edge. * if the fibre is bending, bending part should be upward when placing the fibre.

  • Page 14: Check And Maintenance

    SFS-002 Optical Fibre Fusion Splicer User Manual 3. ChECk AND mAINTENANCE Critical cleaning points and maintenance checks are described below. 3.1 ClEANING V-GROOVES If contaminants are present in the V-grooves, proper clamping may not occur, resulting in higher splice loss. The V-grooves should be frequently inspected and periodically cleaned during normal operation.

  • Page 15: Cleaning Wind Protector Mirrors

    SFS-002 Optical Fibre Fusion Splicer User Manual 3.3 ClEANING WIND PROTECTOR mIRRORS if the wind protector mirrors become dirty, the fibre core position may be incorrect due to decreased optical path clarity, resulting in higher splice loss. To clean the mirrors, do the following: Clean the mirror surface with an alcohol-impregnated thin cotton swab.

  • Page 16: Replace Electrodes

    SFS-002 Optical Fibre Fusion Splicer User Manual 3.5 REPlACE ElECTRODES Electrodes wear with use and also must be cleaned periodically due to silica oxide buildup. It is recommended that the electrodes should be replaced after 1,000 arc discharges. When the number of arc discharges reaches a count of 1,000, a message prompting to replace the electrodes is displayed immediately after turning on the power.

  • Page 17: Change The Spare Lithium Battery Pack

    SFS-002 Optical Fibre Fusion Splicer User Manual 4. chAnge The SPAre LiThiUm BATTery PAck Change the spare battery according to the following procedures. 4. 1 Open the cover of the battery case lean the Fusion Splicer; open the cover of the battery case which is at the bottom of the Fusion Splicer.

  • Page 18: Addendum A: Summary Of Quick Operating

    SFS-002 Optical Fibre Fusion Splicer User Manual ADDENDA A: Summary of Quick Operating PREPARING Verify that the machine is plugged in power or the battery capacity is enough; then press and hold the key until the machine is booted. In the standby mode, press to enter “Splice menu”...

  • Page 19: Addendum B: Guarantee Period And Limits

    • consumable parts (such as electrodes, cleaver blade, carrying case of fusion splicer, etc.) are not covered by the standard warranty. ADDENDA C: Contact Information Space Television (PTy) LTd 78 Republic Road, Ferndale, Randburg, 2125 Tel: 0861 40 41 42 E-mail: technicalsupport@spacetv.co.za...
  • Page 20 SFS-002 Optical Fibre Fusion Splicer User Manual SAFeTy inSTrUcTionS Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard: • do not expose the unit to rain or moisture. • install the unit in a dry location without infiltration or condensation of water. •...
  • Page 21 SFS-002 Optical Fibre Fusion Splicer User Manual NOTES HELPLINE 0861 40 41 42 • www.spacetv.co.za...
  • Page 22 Helpline: 0861 40 41 42 www.spacetv.co.za...
