Threshold Conway TGAVC65-16 Assembly Instructions Manual

Media stand

Advertisement

Quick Links

Conway Media Stand
Style # TGAVC65-16
DPC-item # 249-10-0022
>> Assembly instructions
TM
© 2021 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Conway TGAVC65-16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Threshold Conway TGAVC65-16

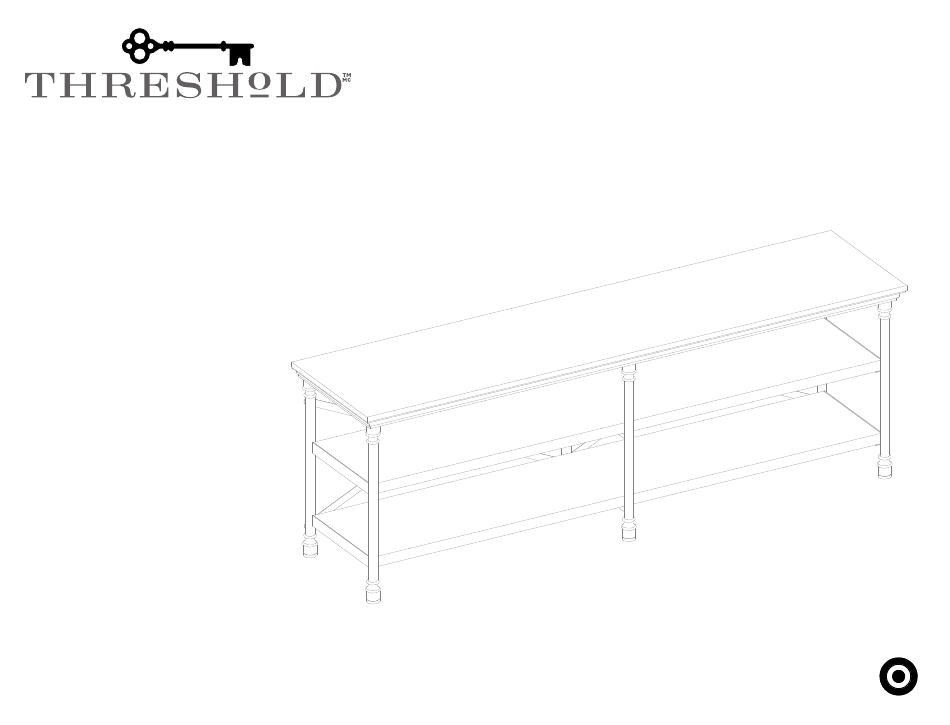

  • Page 1 Conway Media Stand Style # TGAVC65-16 DPC-item # 249-10-0022 >> Assembly instructions © 2021 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
  • Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –...
  • Page 3: Table Of Contents

    hardware (H1) x 20 (H2) x 4 (H3) x 1 (H4) x 2 1/4” x 15 mm bolt 1/4” x 25 mm bolt hex wrench tipping restraint hardware kit (inside plastic bag) Spare hardware...
  • Page 4 exploded diagram ITEM DESCRIPTION Top panel Left side frame Right side frame Middle frame Back support Shelf...
  • Page 5: (H1) X 2

    step 1: attach the middle frame NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 2 (H3) x 1 1/4”...
  • Page 6 step 2: attach the shelves The threaded inserts fit the mounting holes 2.1. Align and attach the shelves (F) to the rails of the middle frame (D).
  • Page 7: (H2) X 4

    step 3: fasten the shelves NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H2) x 4 (H3) x 1 1/4” x 25 mm bolt hex wrench 3.1.
  • Page 8 step 4: attach the side frames The threaded sockets face back of the unit 4.1. Align and attach the side frames (B and C) to the top panel (A) and the shelves (F).
  • Page 9: (H3) X 1

    step 5: fasten the side frames NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 12 (H3) x 1 1/4”...
  • Page 10 step 6: attach the back supports NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. B C D (H1) x 6 (H3) x 1 1/4”...
  • Page 11: (Inside Plastic Bag)

    step 7: attach tip-over restraint Wooden stud Wall Nylon strap Short screw Wall (H4) x 2 tipping restraint hardware kit (inside plastic bag) Floor leveler Long screw Metal bracket Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit (not provided). 7.1.
  • Page 12 Care and Maintenance  Use a soft, clean cloth that will not scratch the surface when dusting.  Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.  Using solvents of any kind on your furniture may damage the finish. ...
  • Page 13 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Conway Media Stand MODEL # TGAVC65-16 FITS UP TO MOST 149.9 cm / 59 in DIAGONAL FLAT-PANEL TVS MAXIMUM LOAD 36.3 kg / 80 lb...
  • Page 14 The maximum recommended weight allowance is 36.3 kg / 80 lb for top panel. The maximum recommended weight allowance is 22.7 kg / 50 lb for shelves. This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 80 lbs. (36.3 kg) and maximum load 59 in.
  • Page 15 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
