BreezeNET B300 Quick Installation Manual

BreezeNET B300 Quick Installation Guide
WARNING: The document is intended to be used by qualified RF engineers/technicians and IT professionals. Qualified
personnel should have skills and experience in the following areas: outdoor/indoor radio equipment
installation, outdoor wireless networks, TCP/IP networking protocols, safety procedures and instructions for
installing antenna equipment, professional manage of electrical equipment and accessories, safety
procedures and instructions for working on towers and heights.
WARNING: The warranty is not spread for the devices which stopped working properly due to improper usage, careless
treatment, incorrect deployment or exploitation. The warranty voids in the following cases: the device was
opened and/or repaired by the owner on his own, improper exploitation conditions (including improper
Grounding), electrical damaging of the print circuit board due to electric disruption caused by improper
grounding, mechanical defects of the case.

Installation Preparations

Components and accessories required for installation.

•
Indoor Unit (IDU)
•
Outdoor Unit (ODU)
•
Service cable for IDU-to-ODU connection. Service cable should be STP (or FTP) Category 5E cable. The total cable length
between LAN equipment (behind IDU) and ODU should not be longer than 100 meters.
•
One shielded and one unshielded RJ-45 connectors for service cable
•
Ethernet cable for connecting IDU to LAN equipment (use a straight for connection to a hub/switch or a cross-over cable for
connecting directly to a computer)
•
IDU's AC power cord with a power plug
•
Console cable for having easy direct connection to ODU and performing initial configuration, link diagnostic, performance
monitoring
•
ODU mounting kit assembling. Pole, Low diameter pole or Wall mounting kits are available.
In case of using IDU with external antenna:
•
Antenna
•
Antenna installation kit assembling
•
RF low loss cable for connecting antenna to ODU
•
Required grounding system
Tools to be available at the installation site.
•
Screwdrivers set
•
Pliers
•
Spanners set
•
RJ-45 Crimp Tool (for RJ-45 connectors)
•
Connectors sealing set.
•
Optional: GPS receiver or area map with compass and alidade
•
Optional: Big zoom binocular

Cables preparation

1. In case of installing ODU with external antenna: prepare RF cable of the required length. RF low loss cable of 1 meter
length is recommended. Install and seal the connectors on the RF cable.
2. Determine the Service cable length that is used to connect IDU and ODU. The total cable length between LAN equipment
(behind IDU) and ODU should not be longer than 100 meters. Service cable should be STP/FTP Category 5E cable.
3. Install a connector for ODU on the Service cable and seal it (see Connector installation below).
4. If it is possible to lay the Service cable with a connector on the IDU side, install and seal connector for IDU on the Service
cable.

Connector installation

To install RJ-45 connector (without grounding) for ODU:
1. Peel the STP Service cable removing a small piece of its
external jacket to free the internal wires.
2. Put connector parts on the Service cable.
3. Attach RJ-45 connector to the Service cable according to
the "RJ-45" soldering scheme and crimp the connector.
4. Assemble the connector.
WARNING: Connect UTP-cable with KEYED RJ-45
connectors ONLY to "ODU" port on the IDU. Do
NOT try to connect it to "LAN" port, it will
damage Keyed RJ-45 connector or IDU's port.
P/N: 215269

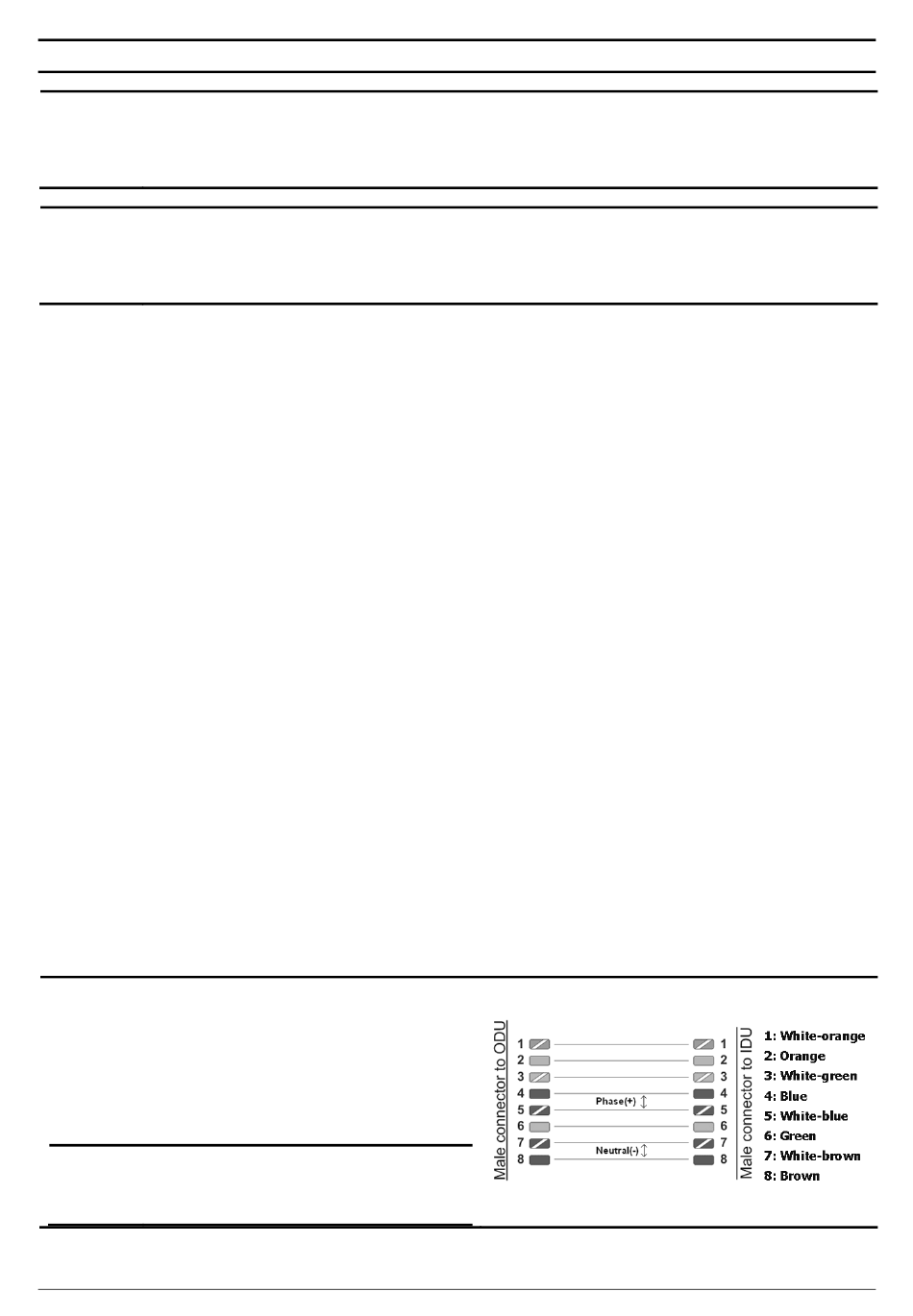

RJ-45 connector soldering scheme:
- 1 -
