Sinope DM2500ZB Installation Manual

DM2500ZB
Installation guide
Smart Dimmer

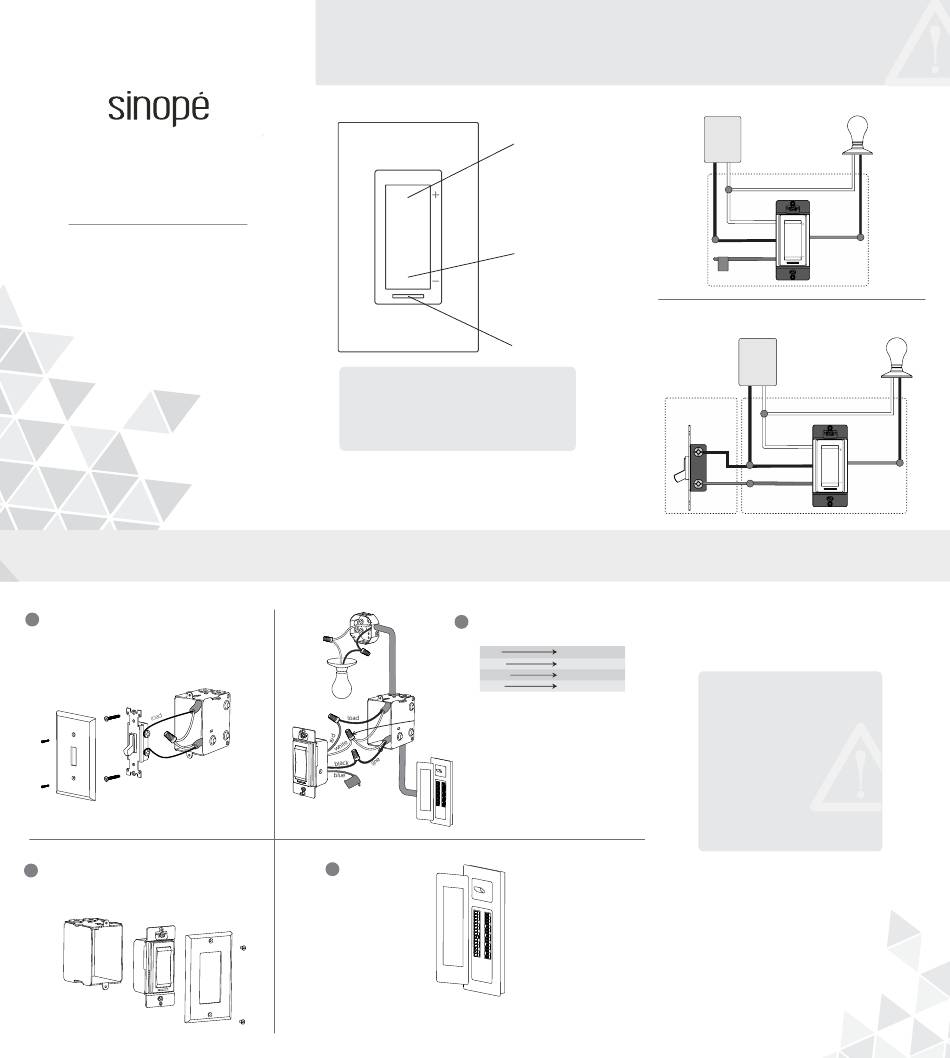

INSTALL YOUR DIMMER

1 Make sure that the breaker for your switch
is OFF at the main electrical panel then
remove the old switch.
line
3
Use the provided screws to secure the
dimmer to the electrical box.
Then, place the wall plate.

Warnings

The installation of this dimmer must be performed by a
certified electrician and comply with the national and local
electrical codes and regulations.
YOUR SMART DIMMER DM2500ZB
Light turned ON = Blue
Light turned OFF = Amber
The indicator intensity can be changed from some
compatible Zigbee gateways.
CAUTION!
To reduce the risk of overheating and possible damage to
another device, do not install to control an outlet, a motor
zigbee 3.0
or a transformer.
Neutral
(white)
4
Power up
the dimmer.
Press once to turn ON
the light. Hold down
the button to increase
the intensity.
Press twice to turn on
the light at maximum
intensity.
Press once to turn
OFF the light. Hold down
the button to decrease
the intensity.
Indicator light
Use the provided connectors to
2
connect the wires as follows:
Red Load
Black Line
White Neutral
Blue None*
*Note: For a single pole installation, do
Neutral
not remove the label on the blue wire.
( white
)
For a 3-way installation, consult the 3-way
wiring diagram on the next page.
This dimmer requires a neutral wire. If your electrical box
does not have a neutral wire, you can either add one or
install the dimmer at a different location.

SINGLE POLE WIRING DIAGRAM

Electrical
Panel
DM2500ZB
White (neutral)
Red (load)
Black (line)
Blue (3-way)

3-WAY WIRING DIAGRAM

Electrical
Panel
Single Pole
switch
DM2500ZB
White (neutral)
Line
Black (line)
Load Blue (3-way)
Make sure to firmly tighten the
wire connectors for a secure
connection. A loose
connection can be a fire
hazard. Special CO/ALR
solderless connectors must be
used when connecting with
aluminum conductors.
Load
Load
Red (load)
