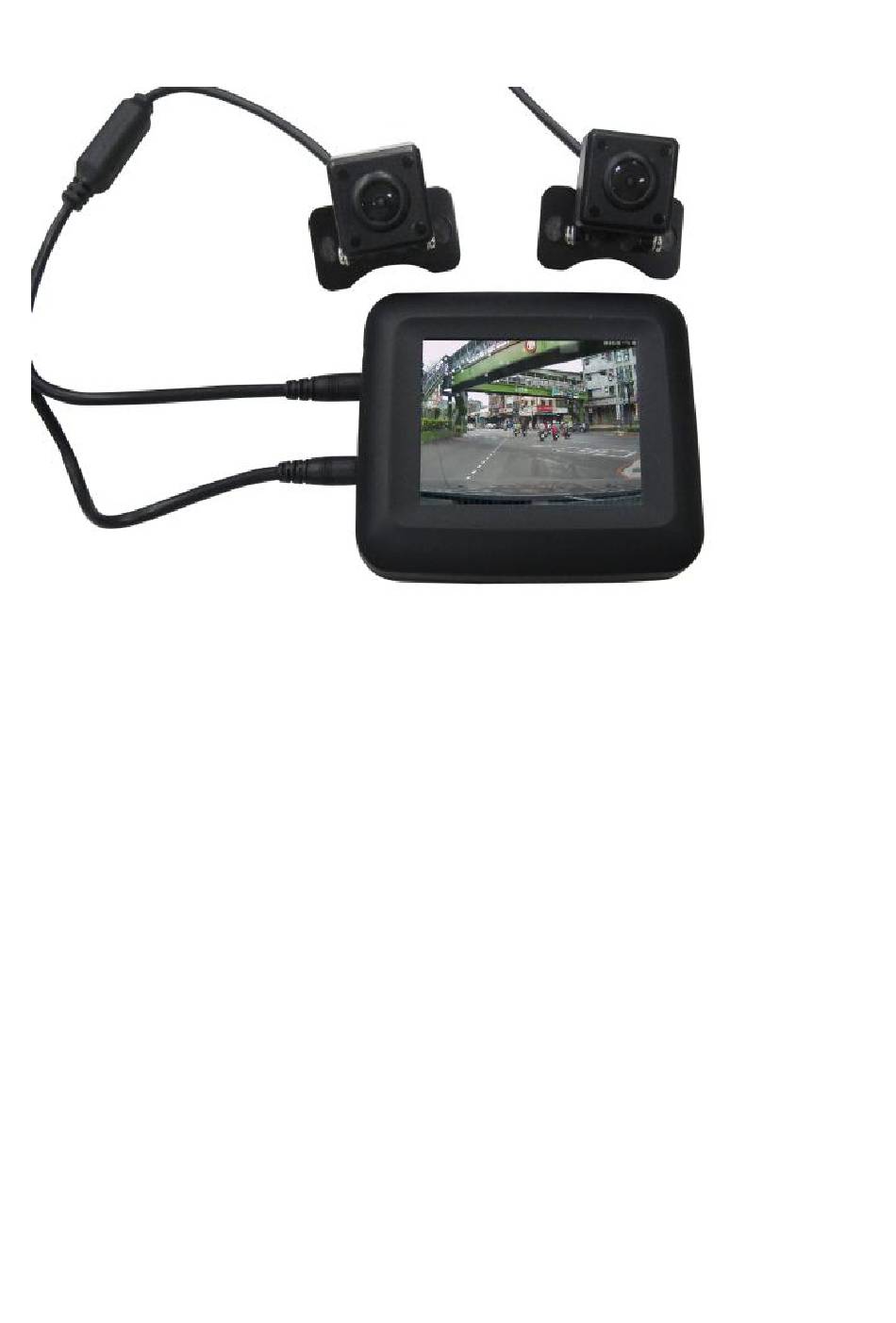

Page 1 SJ-KV205 High Resolution touch Screen Car DVR...
Page 2: Table Of Contents
Quick Guide Product Feature ................1 Caution ....................3 Product Appearance ..............4 Accessory ..................5 Operation ..................5 Funtion Setting—Video Recording Mode ......6 …………………… Funtion Setting—Video Replay Mode …….8 Main Menu ..................9 System Setting ................ 10 Video Setting ............11 (2) General Setting ...........
Page 3 Feature With a 120-degree ultra wide angle lens, compare to the similar  models in the industry, with more 15% wide visual range Using touch screen to make it designed for seamless  interaction between humans and machines Video recording, photograph, mute function, emergency ...
Page 4 Digital Zoom, which provides 4 times optical zoom supports all  video and photo mode operation Built-in 3G-SENSOR , automatic detect the x axis, y axis and z  axis 3-dimensional space of gravity change, also providing emergency protection function of video anti-writing protection; when there was a serious hit , the G-Sensor automatically detect and start the video anti-writing protection features, full protection of crucial files and records.
Page 5 Recording mode and playback mode synchronized video  output , compliant with in-vehicle AV equipment. Support up to 32GB Micro SD card (please use 4GB the above  grades) Built-in microphone, record high quality audio  This product is RoHS and through Taiwan BSMI, FCC and CE ...
Page 6: Caution
Caution We recommend that you set up all of the options of this  product priority, avoid to operate this product while driving, keep driving safety Please keep the camera lens clean, not with fingers and  substances such fat containing or water to contact lenses, resulting in dirt and hazy mist or a halo effect, resulting in reduce video quality;...
Page 7: Product Appearance
Product Appearance 2.4”Touch Screen Display 6 120 Wide angle lens Car Charger Input Port 7 LED Indicator Switch on/off 8 micro SD slot （Press 3 seconds to be forced shutdown）...
Page 8: Accessory
AV OUT 9 GPS Speed Camera Detector connector Mounting Bracket Slot Accessory Mounting External External Car Charger Software CD bracket Camera Cable...
Page 9: Operation
Operation Take out the device from the gift box，insert the SD Card， connect the Car Charger to car cigarette lighter ignition then the device start function. Please use the proper SD Card （please use 4GB the above grades and use above Class6 ），push the SD Card into the slot according to the direction，until it make a "click"...
Page 10 Mounting the Bracket Accessory mounting bracket can be sucked on the front windshield，to make sure fix the device firmly，Please take the following steps to fix bracket with the device Inset the bracket buckle into the slot of the back-clip（ as the below image）。 After the combination of the bracket, Recommend to sock the bracket on the front windshield behind the rear-view mirror...
Page 11: Funtion Setting-Video Recording Mode
Funtion Setting— Video Recording Mode Touch the center of the screen to start or to stop the recording Recording Mode Main Menu Recording Single/Dual Indicator（blink） Display Activate auto collision Audio Recording detection，file not over-writing Manual activate Video time collision detection...
Page 12 Focal adjustment Date/Time GPS completed and speed detect （Optional , Activate Motion comply with SJA Detection GPS Speed Camera Detector） Zoom in / Zoom...
Page 13: Funtion Setting-Video Replay Mode
Funtion Setting—Video Replay Mode Video Replay Next/ forward Previous/ File Number backward File attributes （ Pretect 、 Stop Play Anti-overwriting, Normal） Main Menu Pause Resolution of the Delete file Section...
Page 14 Date / Time of the file...
Page 15 Funtion Setting—Video Replay Mode —Delete Selection...
Page 16: Main Menu
Main Menu Recording File Replay System Set Up...
Page 17 System Set Up Video Set Up...
Page 18: General Setting
General Setting...
Page 19 Version After the firmware version is displayed, click on the screen bac k to recording display (Subject to the actual version). Screen calibration Calibration the accuracy of the touch screen，Operation as follows： 1. Please touch Top-Left red point 2. Please touch Bottom-Right red point。...
Page 20: Emergency Event Protection
Emergency Event Protection This devie has the G-sensor automatic collision detection， to start the file Write-protect function，Also provides user manual touch emergency protection；pressing this function while recording，the key graphics will appear at the top left corner of the screen the key graphics will appear, emergency protection file length is the length of the current recording file plus 30 seconds recording file length after triggering the protection function , protect the files not being overwritten...
Page 21 G-Sensor gravity sensor: automatically detects vehicles collisions and forced protect files In the system set up > in video options, G-sensor (accelerometer) sensitivity set default value to "middle" (which means in activate and normal sensitivity), the actual effects are as follows: (1) Automatically record emergency events, log files, file protection function as the previous statement.
Page 22: Video Output Connect To Tv
Video Output connect to TV Using USB cable (optional)，follow the below instruction to conne ct , please note that after connecting to TV, the screen on the d evice will not display any video.
Page 23: Specification
Specification...
