Summary of Contents for RITZ REDSPOT 2B

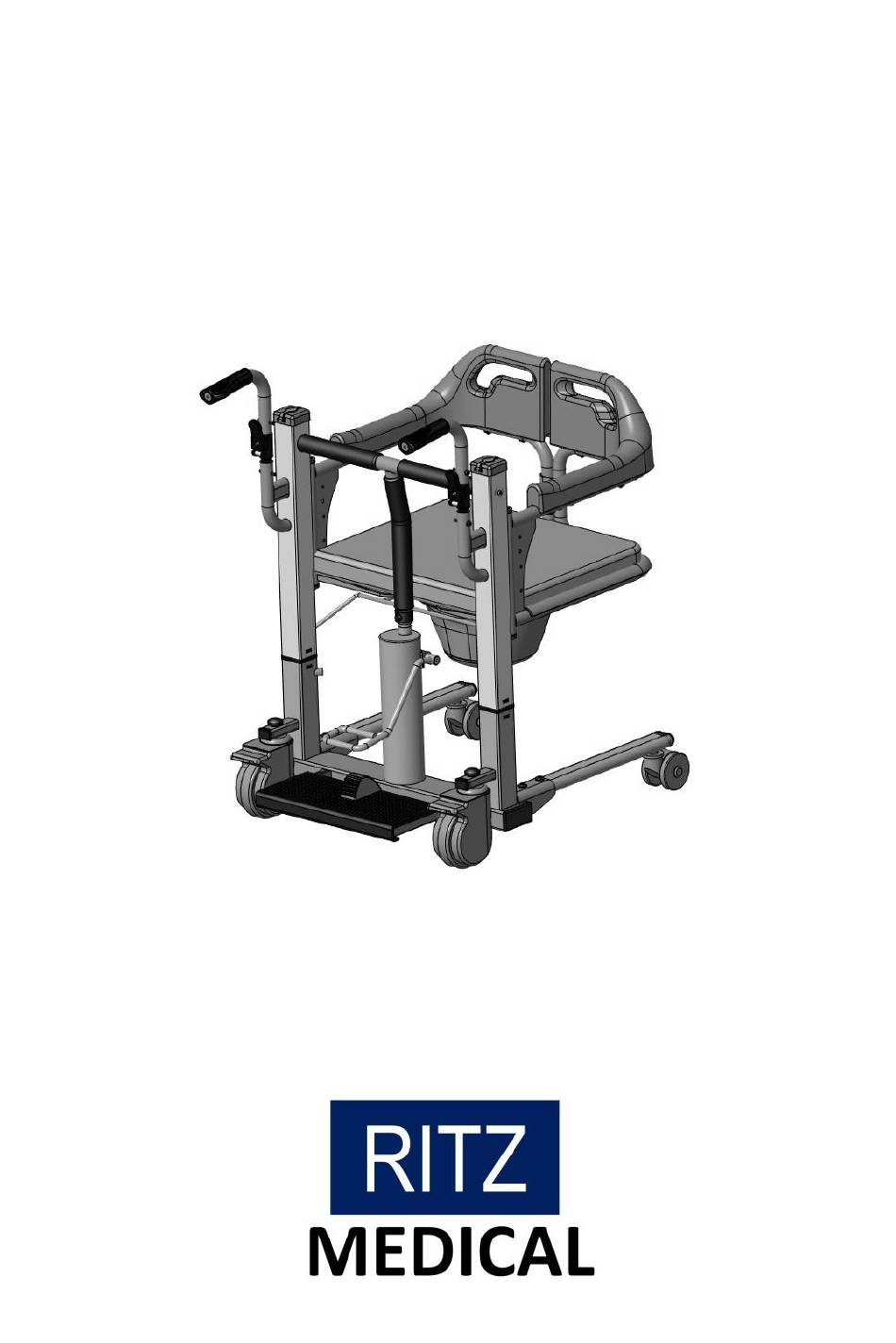

- Page 1 User Manual of Multi-function Hydraulic Transfer Chair...
-
Page 2: Table Of Contents
CONTENTS 1 Overview ............................1 2 Scope of application ......................... 1 3 Precautions for safe use ........................1 4 Product specification, Component list ..................... 3 5 Performance， Features ......................... 5 6 Driving restrictions ........................... 5 7 Installation steps ..........................5 8 Instructions for use ........................ -
Page 3: Overview
1.Overview This manual is applicable to multifunctional transfer chair DH01118(2), including information on safety precautions, function descriptions, and maintenance of various models. The graphics in this manual are for user's reference only, please refer to the actual product in actual use. 2.Scope of application This product is intended for disabled people, patients and the elderly and infirm. - Page 4 CAVEAT Before use, must to check whether the components are complete and whether the components are firmly installed to ensure safe use. Please adjust to a suitable height before use. When the user sits in or leaves the chair, please do not stand on the foot pedal, firstly to fold up the foot pedal and step on the ground, or it is easy to tip the chair.
-
Page 5: Product Specification, Component List

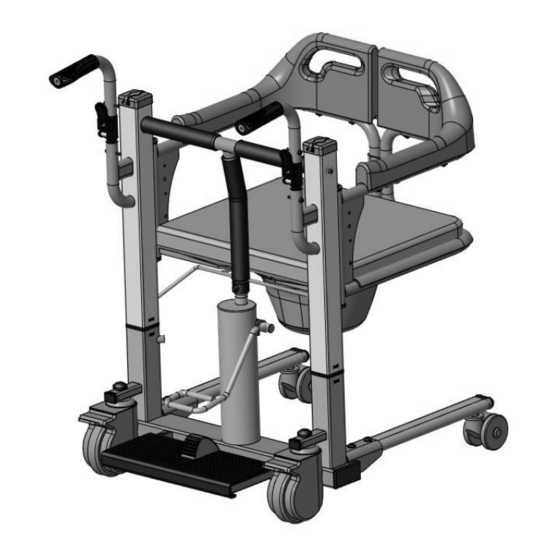

4. Product specifications, components list Specification Model /specification length 770mm width 590mm height 910-1170mm Front wheel 5 inches Rear wheel 3 inches Seat width 460mm Seat depth 400mm Seat height above ground 440-700mm net weight 32kg weight capacity 100kg... - Page 6 This product is composed of base, left seat frame, right seat frame, commode, 5-inch front wheels, 3-inch rear wheels, foot pedal, seat cushion, handles, hydraulic pump. The main material is welded with high-strength steel tubes. 1 - 5-inch front wheel 2- Foot pedal 3 –...
-
Page 7: Performance, Features
5.Performance, features For people with mobility difficulties to shift from chair to sofa, bed, washing room, etc. Large opening and closing design make it convenient for the operator to support the user from below and prevent the operator's waist from being damaged. ... - Page 8 2. After installed the hydraulic pump and straighten the frame, take out the "T" shape tube bar, left and right vertical tube, as shown in the figure, fix the hydraulic lifting frame on the positive hole, take 1 M6*30 semi-round hexagon screw and φ6 iron gasket into the corresponding hole on the left vertical tube, the right vertical tube in the same way, lock the screw with no.
- Page 9 3. Take out the footrest of the hydraulic pump, insert into the position of the positive hydraulic pump, lock the screw on the hydraulic pump in place with no.4 hexagon wrench (the screw shown in the figure is only for reference), in fact screw is locked on the hydraulic pump and not taken out), and check that the footrest of the hydraulic pump is not loose.
- Page 10 base, put M8 screw and the meson through the brackets at both ends one by one, and lock them (as shown in the figure below). After installation and debugging, the seat frame does not loosen and can rotate flexibly (the left seat frame is installed in the same way). 6.For commode, first to install the shelf frame into the mounting brackets, then put the commode from backside, as shown in the following figure.
-
Page 11: Instructions For Use
★ Infusion stand can be installed on the outside of the left/right stand if need. 8.Instructions for users As example, transfer user from the seat to the bed to explain the... - Page 12 operation steps, other furniture and devices as the same. 1.The user sits upright and adjust the height of the chair seat frame so that the bottom of the seat frame is slightly higher than the seat; 2.Open the seat frame on both sides and move it to the front of the user.
- Page 13 7.Operator checks the distance between the bottom surface and seat frame, elevating the seat frame by 2~3 centimeters, release front wheel brake, slowly moving the chairr from the seat; 8.Operator pushes the chair from the back to the edge of the bed; 9.Check the seat frame height of the chair at the edge of the bed to ensure that the bottom of the seat frame is slightly higher than the bed surface (if the height of...
-
Page 14: Maintenance And Maintenance
control block outside control block inside ★ adjustable height of hydraulic pump is control Clip by clip. 9.Maintenance and maintenance methods Do not scratch the surface with hard objects to prevent material damage; Use neutral synthetic detergent, wipe with a damp cloth, then wipe with a dry cloth; ... -
Page 15: Packing List
10.Packing List After opening the packing box, please confirm the following parts and accessories: Name Specification Base Footrest Left seat frame with backrest Right seat frame with backrest Commode Bucket wire rack Piece Seat cushion Piece tool kit Screw accessories Instruction manual Piece 11.Storage conditions and methods... - Page 16 (371429-A) RITZ MEDICAL SDN BHD Suite 918 Block B2 , Pusat Dagang Setia Jaya, 9 Jalan PSJ8/9 , 46150 Petaling Jaya, Selangor, Malaysia Tel: 603-7877 0377 Fax:603-7877 0378 www.ritzmedical.com...
