Harman Kardon DVD 27 Connection Manual

To Y (green)/ To S-video
Pb (blue)/Pr (red) input
component video connector
connectors on the TV
∂ ç

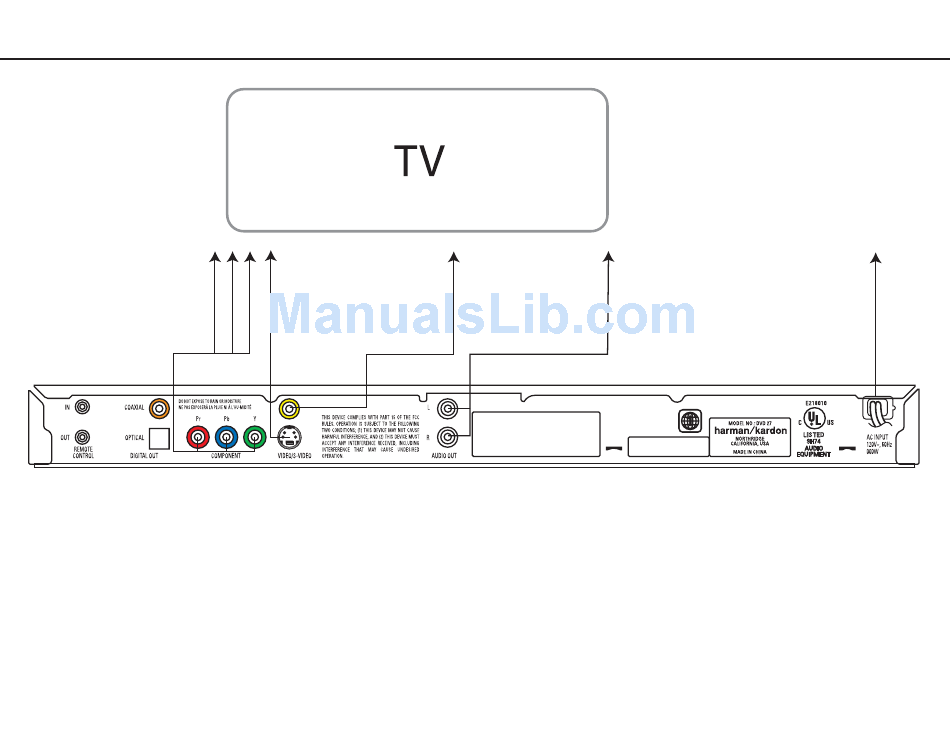

Connecting to a TV Only

When using the DVD 27 with a television but no audio receiver or processor, connect it as follows. Make the Analog Audio
Connection å and one of the Video Connections (Composite Video ∫, S-Video ç or Component Video ∂). Remember
to plug in the power cord.
IMPORTANT NOTE: Make certain that any device being connected, including the DVD 27, your receiver or processor and your
TV or video display, is turned off whenever you make connections between products.
DVD 27 CONNECTION GUIDE
To video
input
To analog audio
connector
input connectors
(yellow)
(red/white) on the TV
on the TV
∫ å
To power outlet
(AC 120V/60Hz)
