IQ WiFi 6 QUICK INSTALL GUIDE
FEATURES & OVERVIEW

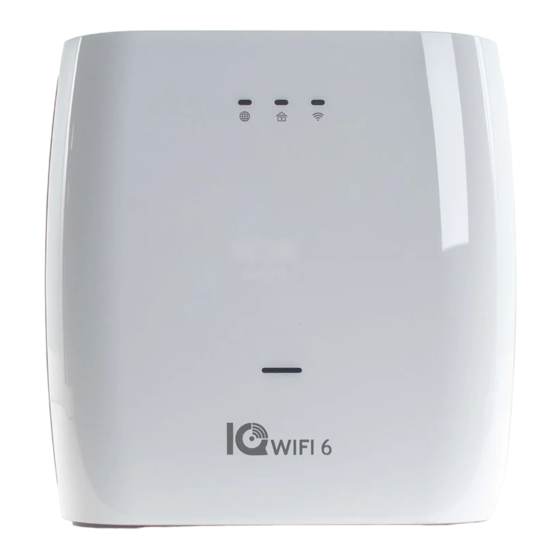

The IQ WiFi 6 is a mesh capable
router that covers every corner of
every room with safe, seamless WiFi.
Features:
• Self optimizing WiFi mesh with
wired and wireless ethernet
backhaul
• WiFi version 6, ax1800
• Supports Dual-band 2.4G/5G
• Supports 7 additional Agents
(1 Controller)
• Stand alone or parallel
configuration supported
• Web interface or IQ Panel
configurable
• Main, Guest and Security SSIDs
• Included wall mount enables
flexible placement
This is a quick guide for experienced installers only. Refer to https://qolsys.com
SPECIFICATIONS
SKU: IQWF6
Description: IQWIFI6
Dimensions: 151.4 mm x 150.4 mm x 55.4 mm
Weight: 425g
Usage: For Indoor use only
Compliance: FCC, UL, CE
Processor: Qualcomm IPQ6000
Flash Memory: 512MB NAND
Memory: 512MB DDR3-933MHz
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Relative Humidity: 10% - 90% RH (non-condensing)
Operating Distance: Up to 130ft
Frequency Type:
Wireless IEEE 802.11 b/g/n/ax 2.4GHz
IEEE 802.11 a/n/ac/ax 5GHz
Wired Type:
LAN and WAN Gigabit Ethernet Ports
LED Indicators:
2 color LED (Green and Red): Power/Status
Green LEDs: WAN, SmartHome, LAN
Power Supply:
Input: 100-240VAC, 50-60Hz
Output: 1.5A 18.0W
Advertisement
Table of Contents
Summary of Contents for QOLSYS IQ WiFi 6
- Page 1 2 color LED (Green and Red): Power/Status • Main, Guest and Security SSIDs Green LEDs: WAN, SmartHome, LAN • Included wall mount enables Power Supply: flexible placement Input: 100-240VAC, 50-60Hz Output: 1.5A 18.0W This is a quick guide for experienced installers only. Refer to https://qolsys.com...
- Page 2 DO NOT MOUNT ON A HIGH VOLTAGE BOX. If mounting with a low-voltage box use size 6 screws (M3.5) that are 1 inch (2.54 cm) in length. This is a quick guide for experienced installers only. Refer to https://qolsys.com...
- Page 3 While waiting for Agents to pair, unbox GREEN. Paired Agents default to WiFi backhaul but support any agents and power them up. ethernet backhaul with an ethernet connected LAN-to-LAN. This is a quick guide for experienced installers only. Refer to https://qolsys.com...
- Page 4 Network Name (SSID’s) 3. Enter a unique network name. Controller 5. Reboot the Controller when instructed Note: IQ WiFi 6 uses band-steering. All nodes will reboot if changing default settings. This is a quick guide for experienced installers only. Refer to https://qolsys.com...
- Page 5 STEP MOBILE MANAGMENT IQ WiFi 6 can be managed by the homeowner either directly from the Alarm.com app or from a dedicated IQ WiFi app. In cases where Alarm.com is used, it is recommended to manage devices directly from Alarm.com. As long as the Controller is added to the ADC account (Step 7 above) no further ac8on is required and IQ WiFi 6 will automa8cally show up for homeowner to control and manage the Main and Guest networks from their ADC app.
- Page 6 ADDITIONAL CONSIDERATIONS TROUBLESHOOTING You can set up the IQ WiFi 6 in either of these ways: LED Status: As the only wireless network on the premises: In parallel with an existing wireless network: Great for: -Keeping the security and smart-home devices...
