- Page 1 Instructions for use SubDistributionBox TSC-UV V2 Revision 3.0, Status 2022_08_09_HMU We reserve the right to make technical and editroial changes.
- Page 2 Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use Type of change 1 New features 2 Bug fixes 3 Other Type of changes Revision Author Time stamp 1, 3 2022-08-13, 12:35 © Modifications to this document are prohibited. The manufacturer accepts no liability for any physical injury or damage to...
-
Page 3: Table Of Contents
Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use 1. Table of content Table of content ........................3 Introduction ..........................4 General Information ....................... 4 Intend use ..........................4 Liability and warrannty ......................4 Entsorgung ..........................5 Symbols used in this manual .................... -
Page 4: Introduction
Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use 2. Introduction Thank you very much for purchasing the Carrier rail controller for SubDisributionBox TSC-UV V2 (hereinafter reffered to as TSC-UV V2). This Assembly and Instruction for use documents the assembly and operation of the TSC-UV V2 and helps you to connect the controller quickly. -
Page 5: Entsorgung
Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use Disposal Notice Environmental pollution from electronic components. Electronic components must be disposed of in accordance with the laws applicable in the respective country. Packaging materials are to be reused or recycled. -
Page 6: Modifications And Alterations To The Tsc-Uv V2
Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use Modifications and alterations to the TSC-UV V2 It is forbidden to make changes or extensions that have not been approved by the manufacturer. Modifications or repairs that are not described in the assembly and operating... -
Page 7: Functional Description

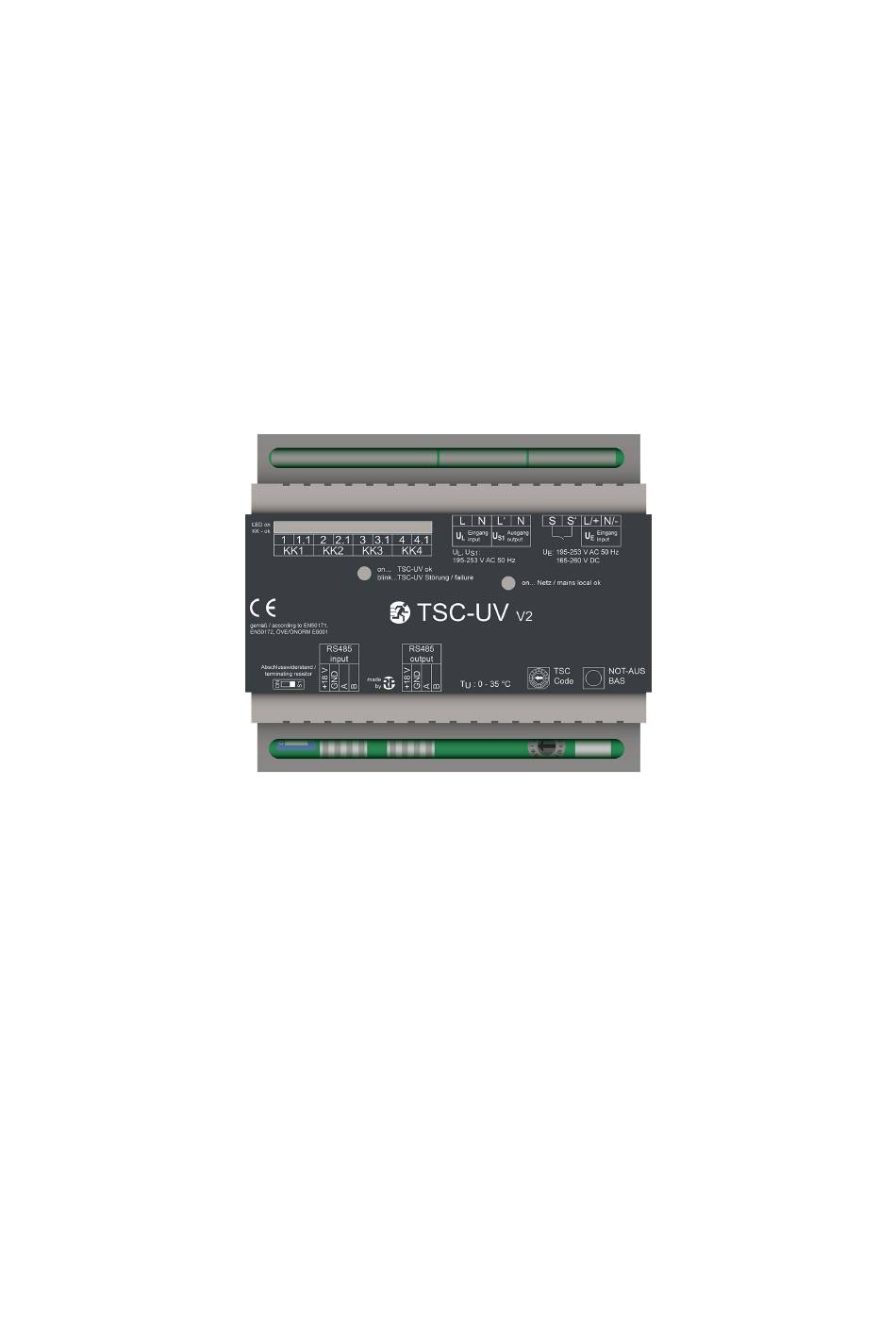

Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use 10. Functional description The TSC-UV V2 contains 4 separate network guard loops (CCIF), which are designated KK1, KK2, KK3 and KK4. non maintainet standby (MB) is triggered when the line of the network guard loop is interrupted or clumped. -
Page 8: Overview Of The Available Leds
Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use The TSC-UV V2 is connected to the main system via the RS485 BUS. In the event of faults in the communication, all circuits in this sub-distribution are switched to modified standby. Because there is no communication for switching off the circuits, this can be realised via the "EMERGENCY OFF/BAS"... -
Page 9: Structure And Function
Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use 12. Structure and function 12.1 EMERGENCY STOP Button With the EMERGENCY STOP/BAS push-button, circuits assigned to the TSC-UV V2 can be switched off and on during the operating modes continuous light, modified standby and battery operation. -
Page 10: Technical Data
Carrier rail controller for SubDistributionBox TSC-UV V2 Assembly and Instructions for use 13. Technical data Housing Dimensions (H x B x T) 86x105x60 mm [3,38x4,13x2,36 Inch] Installation for vertical DIN rail mounting Protection class IP20 Climatic conditions Surrounding temperature 0-35 °C [32-95 F] Installation Für vertikale Hutschienenmontage...
