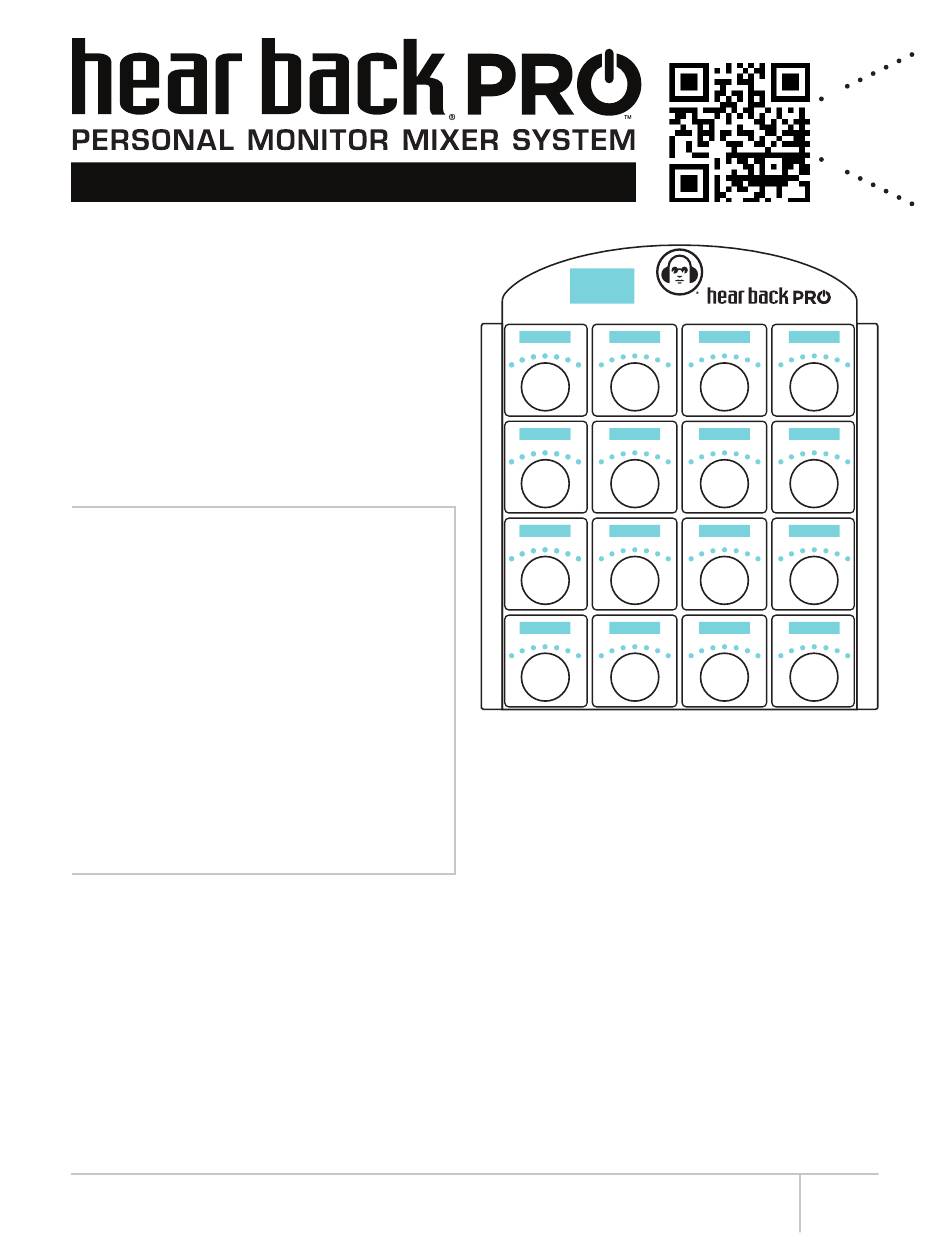

PRO Digital Overlay
OVERVIEW

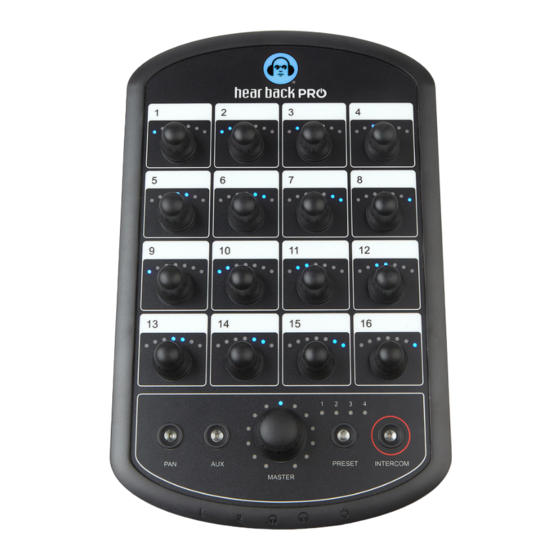

The PRO Digital Overlay is an ultra-thin faceplate for
electronic labeling of a Hear Back PRO Mixer. This attachable
upgrade modifies and expands the display of channels
and mixer functions through high contrast OLED graphical
displays. The Digital Overlay permanently mounts directly
onto the PRO Mixer's face and connects via a ribbon cable
into the Mixer's side expansion slot. The naming functions
can be accessed and updated through the iOS app or via
a computer, for added flexibility. The PRO Digital Overlay
is a time saving and easy to read solution to the standard
scribble strip for engineers and end users in studio sessions
and live entertainment settings.
ADVANTAGES / FEATURES
• Unobtrusive with a thin, ultra-low profile
(less than 3mm thickness)
• Rugged design for stage and touring
• Easy and quick installation
• Supports the use of letters, numbers, and
symbols when labeling channels and mixers
• Bright and easily legible OLED screens allow
for quick identification and control, even in low
light environments
• Mixers and channels can be named and
updated remotely with either the Hear Back
PRO iOS app or via a computer
A FEW NOTES BEFORE INSTALLATION
•
Though the PRO Digital Overlay is rugged once installed onto the Mixer, DO NOT BEND OR TWIST THE OVERLAY, prior
to or during the installation process.
•
Take care when handling the ribbon cable during the installation process. Creasing or twisting the cable can affect
performance of the Overlay.
•
The PRO Digital Overlay is designed to be used with V6.1 firmware. Prior to use, the Hear Back PRO Hub firmware
must be updated to a minimum version of 6.1 with bootloader version 2.5 or higher. The PRO Mixer requires a minimum
firmware version of 6.1 with bootloader version 2.24 or higher. These software updates are available for download at:
www.HearTechnologies.com/support
OLED graphical displays for electronic labeling and
Mixer status
PRO Digital Overlay User Guide
SCAN FOR
DOWNLOADS
1
Advertisement
Table of Contents
Summary of Contents for Hear Technologies back PRO Digital Overlay
- Page 1 SCAN FOR DOWNLOADS PRO Digital Overlay OVERVIEW The PRO Digital Overlay is an ultra-thin faceplate for electronic labeling of a Hear Back PRO Mixer. This attachable upgrade modifies and expands the display of channels and mixer functions through high contrast OLED graphical displays.
- Page 2 INSTALLATION NOTE: Once mounted, the PRO Digital Overlay cannot be removed. Take adequate care when aligning and applying to the PRO Mixer front. 1. Remove the two screws attaching the expansion 3. With the Overlay face-down, CAREFULLY remove card slot cover to the Mixer. Keep screws for reuse. the tape securing the flexible ribbon cable to the bottom of the Overlay.
- Page 3 INITIAL SETUP NOTE: If not already installed, update the Hear Back PRO Hub to a minimum firmware version of 6.1 with bootloader 2.5 or higher, and PRO Mixer to a minimum firmware version 6.1 with bootloader 2.24 or higher via the iOS app or Desktop FW Updater. Apply power to the Mixer by inserting the network Following the bootup sequence, the main screen cable into the Ethernet port.
- Page 4 Using the Desktop Config Editor Hear Back Hub V6 Windows Computer 1. With the PRO Hub “ON”, plug a USB (B-Male) into the Connect Hub “PROGRAM” port on the Hub’s Main Board and the to Windows USB (A-Male) into a computer USB port. OS via USB 150W 150W...
- Page 5 MIXER NAMING PRO Mixers can be named for easier identification via the iOS app. Mixer names will display UPPERCASE in the main screen of the PRO Digital Overlay and within the mobile app. Mixer naming is saved only on the Mixer, not on the Hub. Open the Hear Back PRO iOS app >...
- Page 6 MAIN SCREEN DISPLAY GROUPED MIXERS MIXER 65EO When Mixers are linked together, the first The main screen at the top left of the Digital Overlay displays Mixer in the group defaults as the master REMOTE the Mixer’s name and status including firmware version, CONTROL Mixer, and each concurrent Mixer in the channel levels, mode status, preset function, and text...
- Page 7 Bootloader 2.24. • Update the Hear Back PRO iOS app on your device to the latest version. • If naming through the iOS app continues to fail, use the Hear Technologies Desktop Config Editor to assign channel names. Desktop Config Editor •...
- Page 8 The following are trademarks of Hear Technologies: Hear Technologies, Hear Back, Control Your Mix, Mix Back, Extreme Extender, HearBus, and the “Jack” logo. All names and marks of other companies belong to those respective companies.
