Summary of Contents for Eco-Smart SunTrackerTwo
- Page 1 Eco-$mart, Inc. TOLL FREE:(888)329-2705 FAX:(941)377-9460 info@eco-smart.com SunTrackerTwo Preparation Cutting Holes and Preparing Curbs T.G.I Truss CIRALIGHT INSTALLATION MANUAL Page 1...

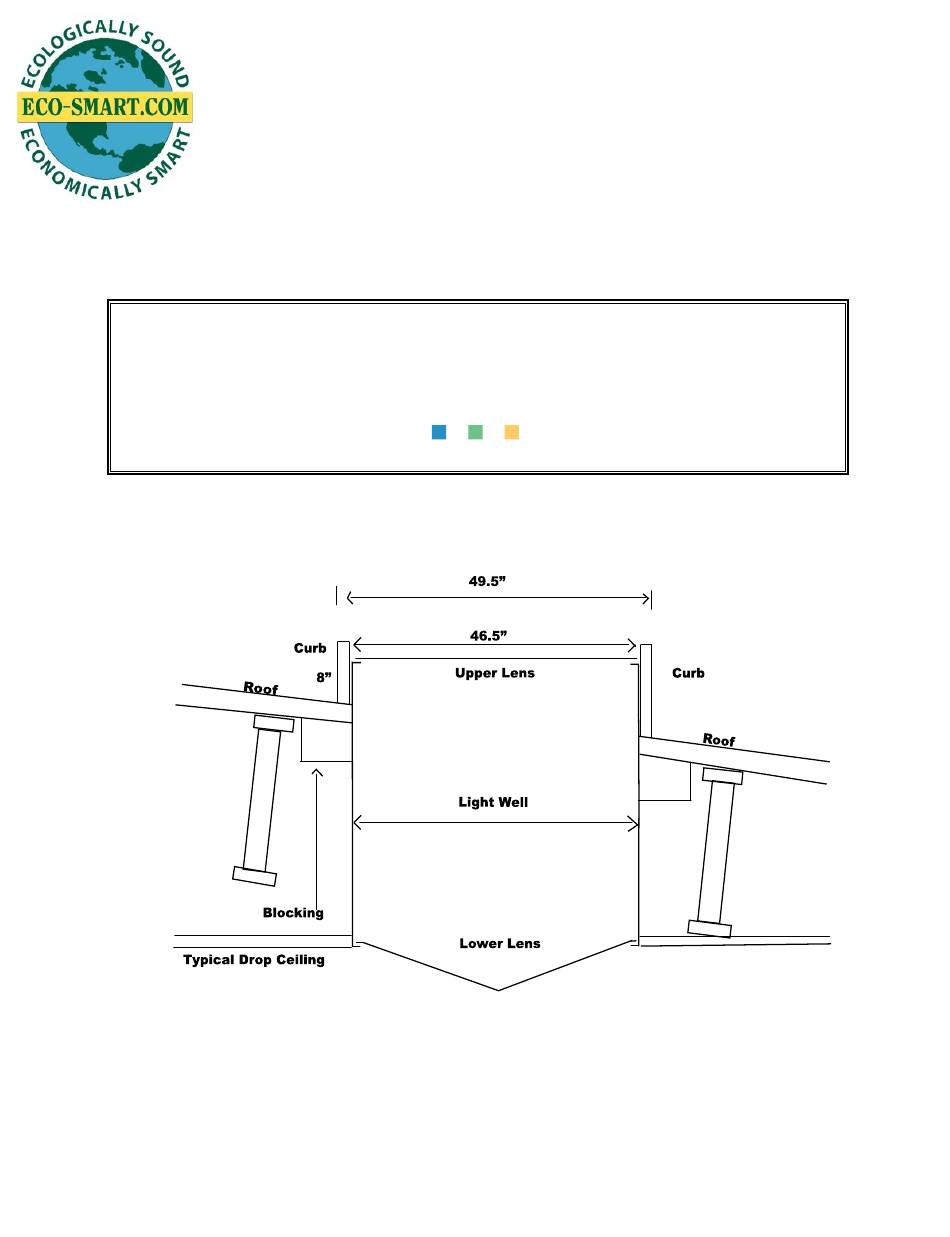

- Page 2 Contractor will provide a temporary watertight cover to remain in place until SunTackerOne installation is made. The SunTrackerTwo light wells require an unobstructed opening (that is the inside diameter of the curb) which extends from the top of the curb to the bottom of it’s lowest lens (often a pyramid shape that can add additional length to the light well).
- Page 3 Template for Roof Openings BEFORE ROOF CUTS ARE MADE, CONTRACTOR WILL DETERMINE IF ADDITIONAL ROOF REINFORCING IS REQUIRED & INDICATE SAME ON INSTALLATION DRAWING Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 3...
- Page 4 On a slanted roof, the low side of the curb will need to be taller than the high side so as to maintain a level top to the installed curb. (see diagram) Metal curb can be substituted for wood. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 4...
- Page 5 MUST USE PRESSURE TREATED LUMBER (OR PREFAB SHEET METAL) FOR CURBS. USE SMALL CLIP ANGLES FASTENED WITH Concrete EXPANSION BOLTS TO ANCHOR CURBS TO CONCRETE Roof Attachment of curbs should meet with all building codes and requirements. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 5...
- Page 6 Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 6...
- Page 7 Eco-$mart, Inc. TOLL FREE:(888)329-2705 FAX:(941)377-9460 info@eco-smart.com SunTrackerTwo Installation MIRROR/MIRROR BRACKET CONTROL UNIT ASSEMBLY WITH SOLAR CELL SKYLIGHT FRAME w/ FLAT LENS SKYLIGHT DOME FINISHED ROOF CURBING (INSULATION PER ENERGY CODE REQUIREMENTS) DIFFUSER LENS (FLAT) LIGHT WELL LENS SUPPORT ANGLE INTEGRATED WITH LIGHT WELL...
- Page 8 (the bend at the base of the mirror faces away from the reflective surface). Attach two black plastic nuts (provided) to the bolts and hand tighten. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 2...
- Page 9 Rotate the vertical post until the D-flat (see picture with arrow pointing to D-flat) is facing true south (THIS IS IMPORTANT). Once the D-flat is facing true south, tighten the set screw fully. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 3...
- Page 10 #10 hex head Zinc plated screws 1½ inches long (fasteners are not provided). When attaching fasteners, take care to drill straight in or slightly downward so as not to penetrate the interior gutter system of the dome. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 4...
- Page 11 Eco-$mart, Inc. TOLL FREE:(888)329-2705 FAX:(941)377-9460 info@eco-smart.com Light Well Assembly and Installation This photo sequence is for one piece, non-adjustable light wells. For two piece, (adjustables), see end of manual.
- Page 12 #10, 1/2” truss washer lath screws with neoprene bonded washer (screwing from the outside in), or using their own double- sided tape to connect the light well together. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 2...
- Page 13 With the lower lens in place lift the light well d allo it t slid do int pl Check that the well fits snugly onto the top of the curb all the way around. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com PAGE 3...
- Page 14 Connect the two sections together where they overlap with #10, 1/2” truss washer lath screws with neoprene bonded washer. Use several workers to support the light well, and set it into the hole and onto the curb. Proceed to SunTrackerTwo installation manual. Eco-$mart, Inc. TOLL FREE:(888)329-2705 info@eco-smart.com www.eco-smart.com...
