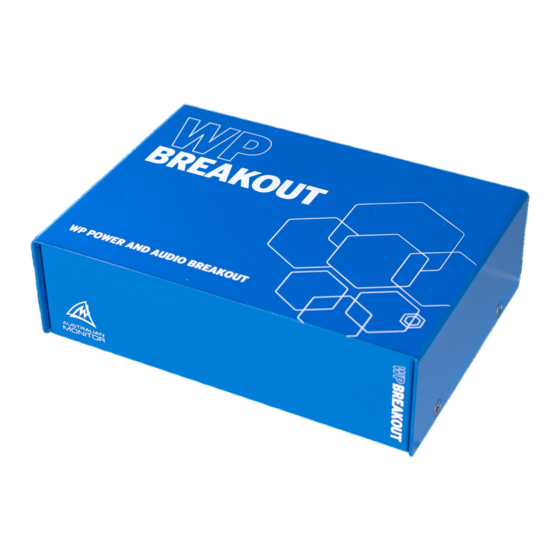

- Page 1 INSTALLATION AND OPERATION MANUAL WP-BREAKOUT Audio Breakout Box...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION READ these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 3 INTRODUCTION & CONTENTS WP-BREAKOUT Features The WP-BREAKOUT is an audio breakout box which easily provides Block Diagram power to and receives audio from, up to two wall panels. Front Panel WP-BREAKOUT Wiring 24V is provided to the panels and the wall...
-
Page 4: Block Diagram
• Provides 24V power to wall panels • Supports the WPBT and WPML Wall Panels • Rear panel gain adjustment • Supports up to two wall panels • Power output to daisy chain up to 15 WP-BREAKOUT units from one power supply BLOCK DIAGRAM WPBT WPML... -
Page 5: Rear Panel
REAR PANEL POWER INPUT The WP-BREAKOUT is powered via the included +24VDC 1.5A universal power adapter. The DC input accepts a 5.5/2.1mm plug with tip positive and ring negative connection. POWER IN/OUT A 3.81mm 2 pin euroblock connector for power supply daisy chaining multiple WP-BREAKOUT boxes. - Page 6 WP-BREAKOUT WIRING The WP-BREAKOUT box is wired as shown below. Colour Signal Orange/White LEFT+ ORANGE/WHITE Orange LEFT- ORANGE Green/White Unused GREEN/WHITE BLUE Blue +24V DC BLUE/WHITE Blue/White GREEN BROWN/WHITE Green Unused BROWN Brown/White RIGHT+ *T-568B wiring Brown RIGHT- T-568B wiring recommended. However, T-568A also supported.
-
Page 7: Specifications
WP-BREAKOUT + 1 WALL PANEL 60mA WP-BREAKOUT + 2 WALL PANEL 85mA SUPPORTED DAISY CHAINED UNITS 15 WP-BREAKOUT and 30 Wall Panels One powered unit and 14 slaves MECHANICAL 144mm x 104mm x 43mm Total depth is 117mm inclusive of Bluetooth antenna PRODUCT DIMENSONS (5.7”W x 4.1”D x 1.7”H) - Page 8 DIMENSIONS 143.5mm 104mm ENGINEERED BY AUSTRALIAN MONITOR Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au ABN 86 003 231 187...
