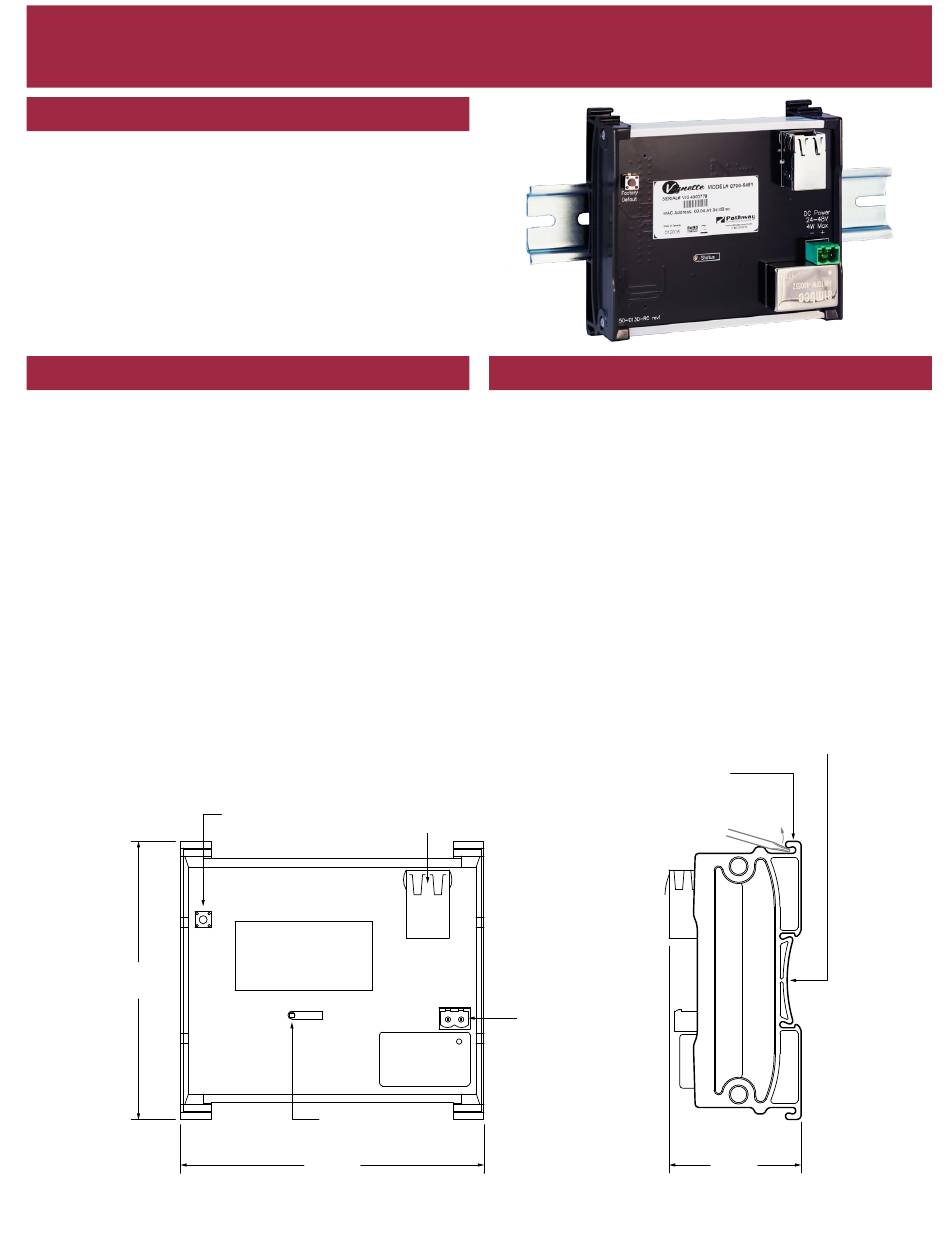

pathway PWGW DIN CLK Installation Manual

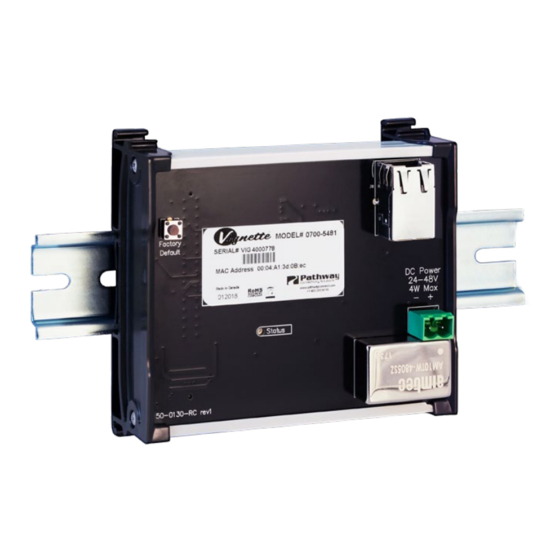

PWGW DIN CLK Vignette Clock
OVERVIEW
Vignette Clock is a time-based playback device that allows
you to automate snapshot playback as well as other Vignette
functions such as zones, grandmaster level, release all, and
others according to date, time, or astronomical events such
as sunrise or sunset.
The device mounts to 35mm DIN rail and is simple and easy
to install. Configuration is done with the free Pathscape
software, available for download from the Pathway
Connectivity website.
CONNECTIONS
Make the following connections, WITH THE POWER TURNED
OFF.
POWER
Vignette Clock must be supplied 24-48 VDC. Connect a suitable
power supply to the green DC POWER jack. Ensure correct polarity
is observed when wiring the included terminal plug. Alternatively,
connect the device to a PoE switch.
NETWORK
Connect the device to a switch connected to the lighting network
using a Cat5/6 Ethernet cable. Ensure the network is set up correctly
with the same subnet and IP range as other Vignette stations from
which you wish to trigger playback. See the Pathscape manual for
proper IP configuration.
Factory
Default
4"
[103mm]
RJ45 Female
Factory Default Button
Ethernet / PoE Port
Status
Status LED
4.5"
[113mm]
STATUS INDICATORS
STATUS A blue heartbeat indicates processor is running;
off indicates no power.
When Identifying, the LED will flash white at 1 Hz.
RJ45 LEDs The RJ45 Ethernet jack has two green LEDs.
One will glow steady when the link is up and the
other will flash with activity.
DIN rail release lever
Use large flat-head screwdriver or
similar tool to gently pry lever away
DC Power
24–48VDC
4W Max
– +
Power In (If PoE not in
use):
24-48 VDC 4W
Use PWPWR DIN TERM
100W 48VDC or equal.
Installation
Guide
Fastening Mechanism
designed for 35 x
7.5mm DIN Rail
from DIN rail to release
1.9"
[49mm]
08/27/21
