Summary of Contents for Sonic ESN CA19744

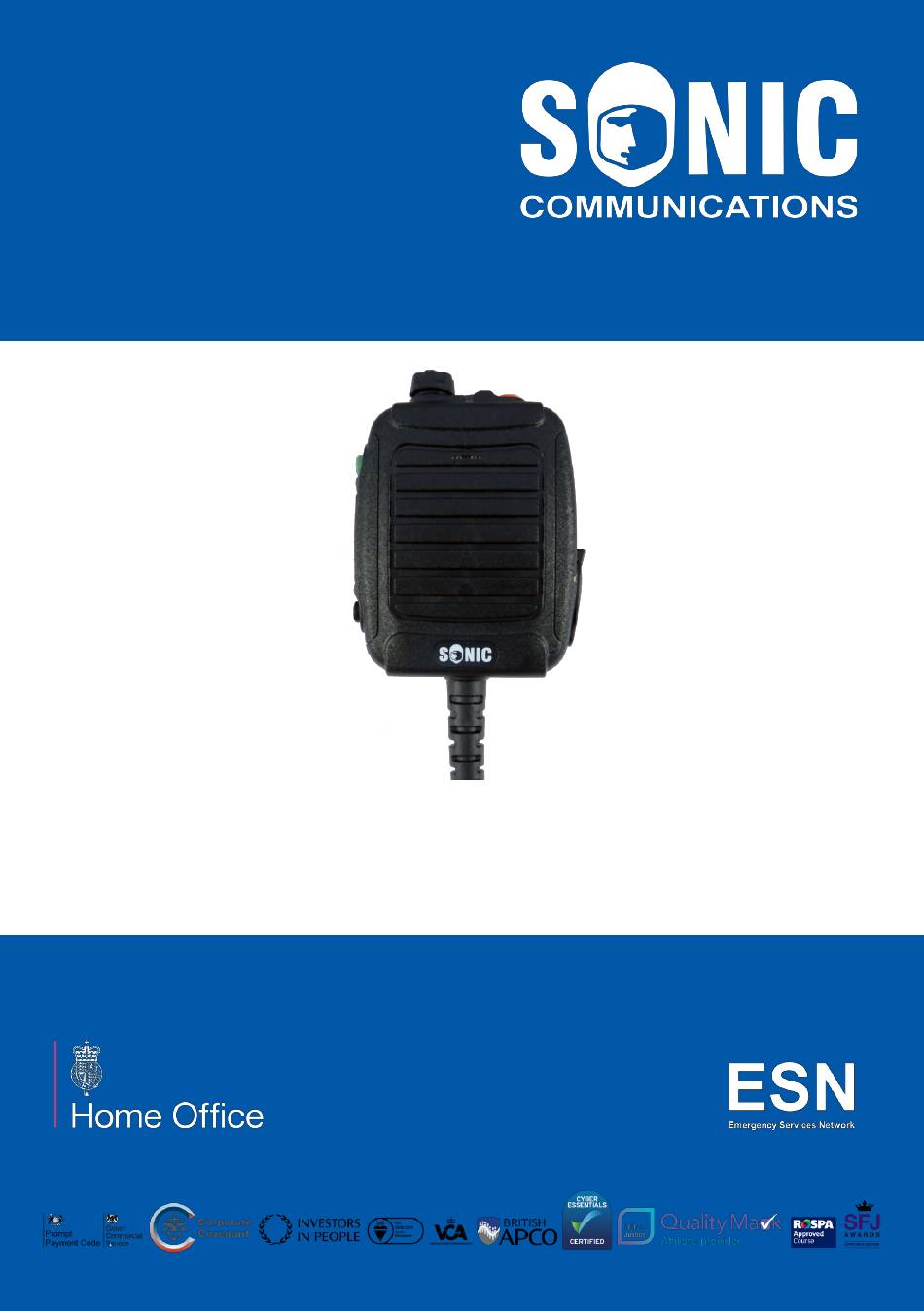

- Page 1 User Manual Emergency Services Network USB-C Remote Speaker Microphone (USB-RSM) Part Number : CA19744 USB RSM Firmware v2.0x Kodiak Client v10.0.2.22C UM.1650.1...
- Page 2 Introduction The Sonic Communications (Int) Ltd ESN USB Remote Speaker Microphone (USB- RSM), provides a high-performance audio accessory, designed against the Home Office ESN specification for an ESN compatible 3ES Remote Speaker Microphone, capable of meeting the requirements of users across all the Emergency Services.
- Page 3 Features • Conforms to Home Office specification for ESN Remote Speaker Microphone. • Controls designed to simulate user familiarity of TETRA terminals. • IP67. • Different surface finish zones to aid blind use of the controls. • Provision for lanyard attachment. •...
- Page 4 ④ ⑤ ⑥ ① ② ⑦ ③ ⑨ ⑩ ⑧ Soft Key-1 (KODIAK PTT End Ongoing Call) Push-To-Talk (PTT) Soft Key-2 (Undefined) Function Select/Control (Volume/Talkgroup) Status LED Soft Key-3 (Emergency Button) Earpiece Jack Socket USB C Charge Socket Lemo Headset Connector Docking Station Charge Point...
-
Page 5: Usb Connection
USB Connection • The USB RSM powers up when it detects a USB connection. • Connect the coiled cable USB-C plug to the Smart phone, ensuring that the KODIK client application is running. • The USB RSM LED will show RED as it powers up. After a few moments the following window will appear on the smart phone screen;... -
Page 6: Operation
Operation Note: The following instructions assume that the Smartphone/Device and the USB-RSM are connected and the Smartphone/Device has the Kodiak App, V10.0.2.22C running. Push-To-Talk (PTT) • Press and hold the PTT button and wait for KODIAK grant tones to transmit. Release the button to end the transmission. - Page 7 Status LED • Blue x1 [Flash]: Connected to a device. • Blue/Red Flash Battery Status Warning • Red [Solid]: On charge, when USB-RSM connected to charge point. • Green [Solid]: Charge complete, when USB-RSM connected to charge point. Soft Keys •...
-
Page 8: Headset Socket
Headset Socket The multi-function headset socket located on the base of the USB-RSM is designed to allow a wide range of compatible communications headsets to be connected. Headsets are available for Motorcycle Helmet use, Public Order, Firearms, Fireground and all operational requirements, where a headset is required to be used, rather than microphone and receive audio being presented from the USB-RSM or into a receive earpiece. - Page 9 Battery • Charging: The USB-RSM is charged using a compatible lead connected to the USB-C charging/programming socket on the base of the USB-RSM. Charge time is approximately 3 hours from fully discharged. • Charge Indicator: The Status LED will show Red while charging and will change status to Green when fully charged.
- Page 10 Birmingham International Park, Starley Way, Bickenhill, Birmingham, B37 7HB, England, United Kingdom Tel: +44 (0) 121 781 4400 Fax: +44 (0) 121 781 4402 (Sales), +44 (0) 121 781 4404 (General) sales@sonic-comms.com www.sonic-comms.com...
