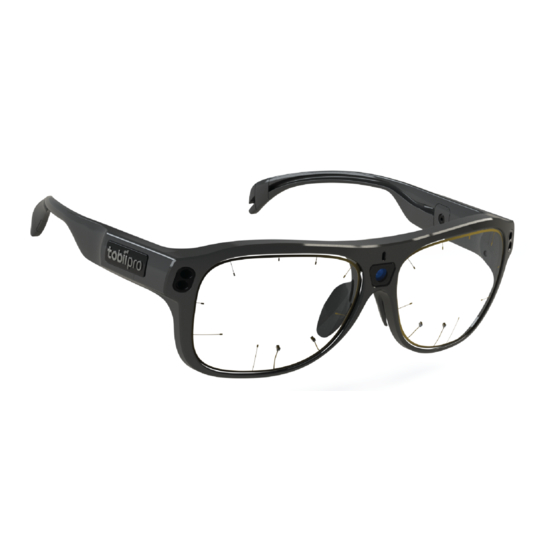

Tobii Pro Glasses 3 Product Description
Hide thumbs
Also See for Glasses 3:
- User manual (51 pages) ,
- Quick start manual (3 pages) ,
- User manual (56 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tobii Pro Glasses 3
Summary of Contents for Tobii Pro Glasses 3
- Page 1 Tobii Pro Glasses 3 Product Description...
- Page 2 Tobii Pro Glasses 3 Product Description v 1.10 July 2022 All rights reserved. Copyright © Tobii AB (publ) The information contained in this document is proprietary to Tobii AB. Any reproduction in part or whole without prior written authorization by Tobii AB is prohibited.
-
Page 3: Table Of Contents
5.18 California Proposition 65 warnings 6 Compliance 6.1 EU Compliance 6.1.1 Conformity with EU directives 6.1.2 CE marking 6.1.3 WEEE marking 6.2 United States and Canada compliance 6.2.1 FCC interference and Industry Canada statement Tobii Pro Glasses 3 Product Description v 1.10... - Page 4 Appendix A Customer Care, training, and warranty A1 Customer Care A1.1 Get help A2 Training and education services A3 Warranty information Appendix B Limitations and considerations B1 Intended use B2 Light conditions B3 Eyelashes B4 Droopy eyelids Tobii Pro Glasses 3 Product Description v 1.10...
-
Page 5: Introduction
The complete Tobii Pro Glasses 3 system consists of a head unit, a recording unit, and the Tobii Pro Glasses 3 controller application installed on an external device. -
Page 6: Symbols Used In This Document
The Information symbol means something is important or needs special attention. The Tip symbol denotes additional information that can make a process or function easier. The Warning symbol means there is a possible risk of harm if the warning is ignored. Tobii Pro Glasses 3 Product Description v 1.10... -
Page 7: System Overview
System Overview Tobii Pro Glasses 3 packages Tobii Pro Glasses 3 is sold in four different packages. The table below details the specific fea- tures available in each package. Glasses Glasses Glasses Glasses Components Cabled Cabled Wireless Wireless Pro Glasses 3 controller ●... -
Page 8: System Components
System components The Tobii Pro Glasses 3 system is comprised of the head unit, recording unit, and Tobii Pro Glasses 3 controller application. Each component is briefly described below. In addition, Tobii Pro Lab software (purchased separately) can be used for further analysis of eye tracking data. - Page 9 Captures a Full HD video of what is in front of the participant 4. Microphone Picks up sounds from the participant and their immediate sur- roundings 5. Eye tracking cameras (x 2 Records eye orientation and movements per eye) Tobii Pro Glasses 3 Product Description v 1.10...
-
Page 10: Recording Unit
Figure 2. The recording unit Part Description 1. Head unit con- Connects to the head unit cable nector 2. Micro USB con- Connects to USB charger for powering the unit and charging the battery nector Tobii Pro Glasses 3 Product Description v 1.10... -
Page 11: Pro Glasses 3 Controller Application
Not available in the Tobii Pro Glasses 3 Live View Package The Tobii Pro Glasses 3 system contains an external SD card reader for use with com- puters that are not equipped with an internal SD card reader. For installation instruc- tions, see the documentation in the SD card reader’s package or the manufacturer’s... - Page 12 Corrective Snap-on corrective lenses for Tobii Pro Glasses 3 used with people who wear Lenses prescription lenses. The Corrective Lenses accessory for Pro Glasses 3 is a set of attachable lenses to correct both nearsightedness and farsightedness. This accessory allows you to include a larger cross-section of the population in your research.
-
Page 13: System Requirements
Core i5 (Dual equivalent core) or equivalent Memory 8 GB RAM 8 GB RAM 4 GB RAM Tobii Pro Lab and other software may have different requirements. Read more about Tobii Pro Lab. Tobii Pro Glasses 3 Product Description v 1.10... -
Page 14: Technical Specifications
(sampled at 10 Hz) Input voltage and current rating 5.5Vdc max, 0.5A Recording unit Battery recording time 105 min. Battery type Rechargeable 18650 Li-ion, Capacity: 3 400 mAh Storage media SD (SDXC, SDHC) card Tobii Pro Glasses 3 Product Description v 1.10... -
Page 15: Corrective Lenses (Optional)
32 pieces., ranging from –5.0 dpt. to +3.0 dpt. in incre- ments of 0.5 dpt. Made of optical-grade plastic with hard coating. Dimensions (height x width x depth) 80 x 270 x 370 mm (complete kit) Weight 1150 grams (complete kit) Tobii Pro Glasses 3 Product Description v 1.10... -
Page 16: Safety
Tobii Pro Glasses 3 User Manual. Tobii or its agents are not liable for damage or injuries to a person or their property due to a Tobii Pro Glasses 3 eye tracker system in any configuration being dropped. Fitting the glasses onto a test participant is done entirely at the user’s own risk. -
Page 17: Infrared Warning
Infrared warning Do not use the Tobii Pro Glasses 3 system when in the vicinity of devices that are sus- ceptible to Infrared (IR) light. When activated, the head unit emits IR light, which can affect certain medical devices and other devices that are susceptible to disturbance by IR light and/or radiation. -
Page 18: Connectors
Usage temperature: 5℃to +45℃ / 23℉ to 113℉ 5.12 Component connection safety The head unit is designed to connect only to the Tobii Pro Glasses 3 recording unit and should not be connected to any other device. -
Page 19: Wireless Warning
Use the provided case when traveling with the eye tracker. For shipping and storage, use the ori- ginal packing. For transportation, the recommended range for temperature and humidity for the device is as fol- lows: Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 5% to 95% Tobii Pro Glasses 3 Product Description v 1.10... -
Page 20: Accessories
Do not use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives on any component of the Tobii Pro Glasses 3 system. Before cleaning the glasses, unplug the head unit cable. - Page 21 WARNING: The AC/DC Adapter including the USB cable in this product can expose you to chemicals including Bisphenol A (BPA), which is known to the State of Cali- fornia to cause birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov. Tobii Pro Glasses 3 Product Description v 1.10...
-
Page 22: Compliance
6.2.1 FCC interference and Industry Canada statement Pro Glasses 3 recording unit has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential install- ation. -
Page 23: Etl Compliance
ICES-003 Issue 6, Class B EN 55032:2015, Class B EN 55035:2017 CISPR 32:2015, Class B CISPR 35:2016 In addition to the above, the Pro Glasses 3 recording unit complies with the following emission and immunity standards: EN 61000-6-3:2007/A1:2011 EN 61000-3-2:2014 EN 61000-3-3:2013... -
Page 24: China Compliance
China compliance The Tobii Pro Glasses 3 recording unit and its operation comply with the following standards: GB 4943.1-2011 (Chinese Standard) Japan compliance The Tobii Pro Glasses 3 recording unit and its operation comply with the following standards: J60950-1(H22) (Japanese Standard) -
Page 25: Product Care
Do not use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives on any component of the Tobii Pro Glasses 3 system. Before cleaning the glasses, unplug the head unit cable. -
Page 26: Disposal Of The Eye Tracker
Avoid getting moisture in openings and ports on the device. Disposal of the eye tracker Do not dispose of Pro Glasses 3 in general household or office waste. Follow your local regulations for disposal of electronic equipment. Tobii Pro Glasses 3 Product Description v 1.10... -
Page 27: Appendix A Customer Care, Training, And Warranty
If you are new to eye tracking, or want to extend your knowledge about eye tracking research, sign up for one of our online sessions, onsite trainings, Tobii Academy, and more on training and education services. Warranty information Read more online about Tobii limited warranty and Tobii Care. Tobii Pro Glasses 3 Product Description v 1.10... -
Page 28: Appendix B Limitations And Considerations
Limitations and considerations Intended use Tobii Pro eye trackers are intended to be used in research activities about human behavior including eye movements, in a dry and dust free indoor environment. The product should only be used as described in this User’s Manual. Please read the User Manual and other supplied documentation thoroughly before using the product. - Page 29 Copyright ©Tobii AB (publ). Not all products and services offered in each local market. Specifications are subject to change without prior notice. All trademarks are the property of their respective owners. Support for your Tobii Pro product Get help Visit Tobii Connect for help with your Tobii device.
