USER'S MANUAL
AHSC-42/60
▶ Thank you for purchasing the HEAT PUMP/
AIR CONDITIONER+HEATER.
Before operation please read this user's manual carefully.
▶ Keep this manual on hand for reference.
▶ This HEAT PUMP/AIR CONDITIONER+HEATER
is specified for use on the rated
voltage power supply. For use outside the local electricity
supply should be checked by a qualified electrician.
AIRREX HEAT PUMP
▶ It is ESSENTIAL that you read 'NOTES ON SAFETY' carefully
before use and follow them at all times.
▶ The Warranty form is on Page 20. Please complete it now and
keep it in a safe place.
▶ We have a policy of continual improving on our products.
The contents (features and specifications) in this manual are
therefore subject to change without notice.
MODEL:
AHSC-42 / 60 / 140
AHSC-140
Advertisement
Table of Contents
Related Manuals for Hephzibah Airrex AHSC-42
Summary of Contents for Hephzibah Airrex AHSC-42
- Page 1 AIRREX HEAT PUMP MODEL: AHSC-42 / 60 / 140 USER'S MANUAL AHSC-42/60 AHSC-140 ▶ Thank you for purchasing the HEAT PUMP/ ▶ It is ESSENTIAL that you read ‘NOTES ON SAFETY’ carefully AIR CONDITIONER+HEATER. before use and follow them at all times. Before operation please read this user’s manual carefully.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ■ SAFETY INSTRUCTIONS ■ GENERAL ADVICE BEFORE USE ■ EXTERIOR DESCRIPTION ■ SPECIFICATIONS ■ CONTROL PANEL FUNCTIONS ■ MODE CHANGING METHOD ■ HOW TO SET THE 'OFF'TIMER ■ TEMPERATURE CONTROL OPERATION ■ SELECTION OF LOCK OR UNLOCK & ℉ OR ℃ ■... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS The following instructions are to ensure user’s safety and to prevent any physical injury or material damage. Please read carefully and follow all instructions. There are two sections to these instructions: WARNING and CAUTION. The following symbols are for your guidance: = You must NOT. -
Page 4: General Advice Before Use
SAFETY INSTRUCTIONS CAUTION Do not place HEAT PUMP/AIR CONDITIONER+HEATER on uneven, unstable or inclined surface. (This could cause malfunction) When storing the HEAT PUMP or AIR CONDITIONER+HEATER, keep it in a dry, cool place. (To prevent corrosion and malfunction) If not being used for some time or if lightening is present, always disconnect from power. (To prevent risk of electric shock, short circuit or fire) Do not spray water onto the HEAT PUMP or AIR CONDITIONER+HEATER nor use solvents such as benzene, thinner or alcohol for cleaning. -
Page 5: Exterior Description 5~6

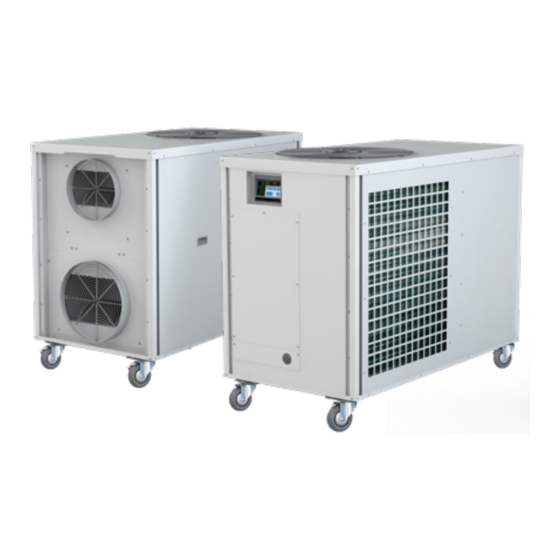

EXTERIOR DESCRIPTION ※ AHSC-42/60 FRONT VIEW ① ② ① Condenser Outlet ② Air Outlet ③ ③ Handle ④ Air Inlet Casters ⑤ Condensate Water Outlet ④ ⑥ ⑤ ⑥ BACK&SIDE VIEW ① ② ③ Digital Controller ① Condenser Inlet ② Electric Panel ③... - Page 6 EXTERIOR DESCRIPTION ※ AHSC-140 FRONT VIEW HEATER INSIDE FLEXIBLE DUCT OUTLET (COLD / HOTAIR) FLEXIBLE DUCT INLET(RETURN AIR) CONDENSER INLET CASTERS (FRONT LOCKABLE) BACK&SIDE VIEW 'POWER' LAMP 'ERROR' LAMP ELECTRIC PANEL (ACCESS BY AUTHORIZED SERVICE PERSONNEL ONLY) PAPER PRE FILTER (INSIDE) DIGITAL CONTROLLER CONDENSER INLET CONDENSER OUTLET (HOT AIR)
-
Page 7: Specifications
SPECIFICATIONS MODEL AHSC-42 AHSC-60 AHSC-140 42,000(12.3) 60,000(17.6) 145,000(42.5) Cooling Btu/h Capacity (kW) Heating 47,000(13.8) 60,000(17.6) 102,375(30) Power supply 220Vac 60Hz 1Ph 460Vac 60Hz 3Ph Dimensions (WxDxH) inch 29.1x57.1x47.7 33.9x72.8x66.2 1,323 Weight Cooling Power Consumption Heating Cooling 10.6 Current Consumption 40.5 Heating 76.7 Moisture... -
Page 8: Control Panel Functions
CONTROL PANEL FUNCTIONS Error ⑧ Remote ⑥ Room ⑦ Comp. ⑨ ③ ④ ⑤ ② ① ① Power ⑦ Comp. Use to power on / off. When the compressor is operating, the LED is on. ⑧ Error ② ∨ ∧ Button Raises or lowers temperature and/ or sleep (off) time. -
Page 9: Mode Changing Method
MODE CHANGING METHOD COOLING MODE If you press 'Mode' button. 'COOL' is displayed. then LED is on. MODE DEHUMIDIFIER MODE When the cooling is operating, If you press the 'Mode' button. 'dEHU' is displayed. then LED is on.MODE FAN MODE When the Dehumidifier is operating. -
Page 10: How To Set The 'Off'timer
HOW TO SET THE ‘OFF’ TIMER. This function enables you to set the length of time you want the HEAT PUMP to operate. You can set the time period from 30min. to 24 hours in 30min. and 1 hour increments. 1. -
Page 11: Temperature Control Operation
TEMPERATURE CONTROL OPERATION COOL OR HEAT MODE •When turn ON, the setting temperature is displayed. •You can change setting temperature. •The display showing the set temperature will blink 3 times. Display Room Temperature range & Setting range. Cooling or Dehumidifier operates when Room COOLING &... -
Page 12: Selection Of Lock Or Unlock & ℉ Or
SELECTION OF LOCK OR UNLOCK 1. When turn OFF If press '∨' for 5 seconds, 2. You can set 'UNLOCK' or 'LOCK' after pressing you can control 'LOCK, UNLOCK' mode. '∧' button. 3. When You set 'LOCK' there will be '.' below the number in the screen. -
Page 13: Error'and Warning Indicators
‘ERROR’and WARNING INDICATORS The machine’s safety devices will automatically signal any problems via the display window on the control panel. The information below shows how to read these signals. 1. HIGH PRESSURE 6. EVA FAN MOTOR PROBLEM ※ Only AHSC-140 ‘E1’... -
Page 14: Trouble Shooting
TROUBLE SHOOTING TROUBLE CHECK REMEDY Power cable correctly connected Connect cable correctly Power button "OFF" Press POWER button to "ON" Blown fuse in electric panel Replace fuse WORKING Fuse (supply) blown Exchange fuse in board Breaker on switch board tripped Check load capacity and reset Ambient temp. -
Page 15: Maintenance
MAINTENANCE After cleaning, completely dry the inside of the unit by operating it on ‘Fan only’ mode for 3 to 4 hours. ※ CLEANING FILTER 1.After removing bolt, Detach CABI FRONT LOWER 2.Pull the filter up to detach. 3.Clean the filter. 4.Reassemble in reverse order of disassembly. -
Page 16: Accessories 16~17
ACCESSORIES ※ AHSC-42/60 MODEL ITEM DRAWING AHSC-42 AHSC-60 ALUMINIUM FILTER COLD AIR for Evaporator EXAUST CHUMBER HOT AIR Ø400 EXHAUST EXAUST CHUMBER COLD AIR Ø300 EXHAUST AHSC-42/60 rev0... - Page 17 ACCESSORIES ※ AHSC-140 MODEL DRAWING ITEM AHSC-140 HOT EXAUST CHAMBER Ø500 EXHAUST COLD EXAUST CHAMBER Ø400 EXHAUST CONDEN- CONDENSATE WATER SATE OUTLET WATER CONNECT PIPE DRAIN HANDLE AHSC-140 rev0...
- Page 18 MEMO rev0...
- Page 19 MEMO rev0...
-
Page 20: Warranty
DISTRIBUTOR Telephone No. Name : Address : CUSTOMER DETAILS Telephone : Manufactured by : Distributed by : HEPHZIBAH CO.,LTD. Airrex USA (Juan-dong) 86, Gilpa-ro 1191 Jewell Dr Ste 101 Waco, TX 76712 71beon-gil, Nam-gu, Incheon, Korea 888-535-8841 TEL : TEL : +82-32-509-5834...
