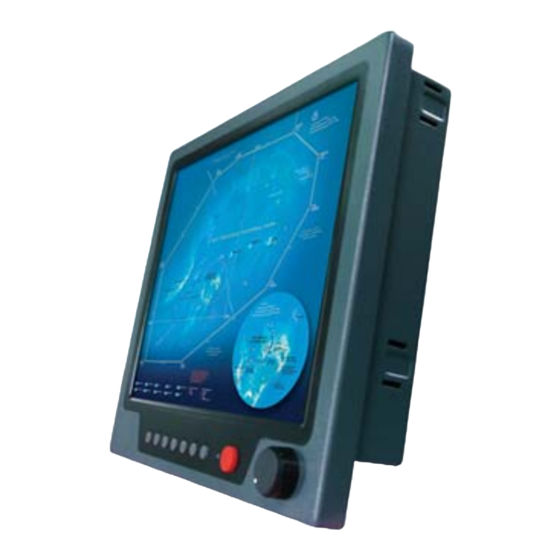

Navpixel NPD1236-12 User Manual

Ip-65 marine display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

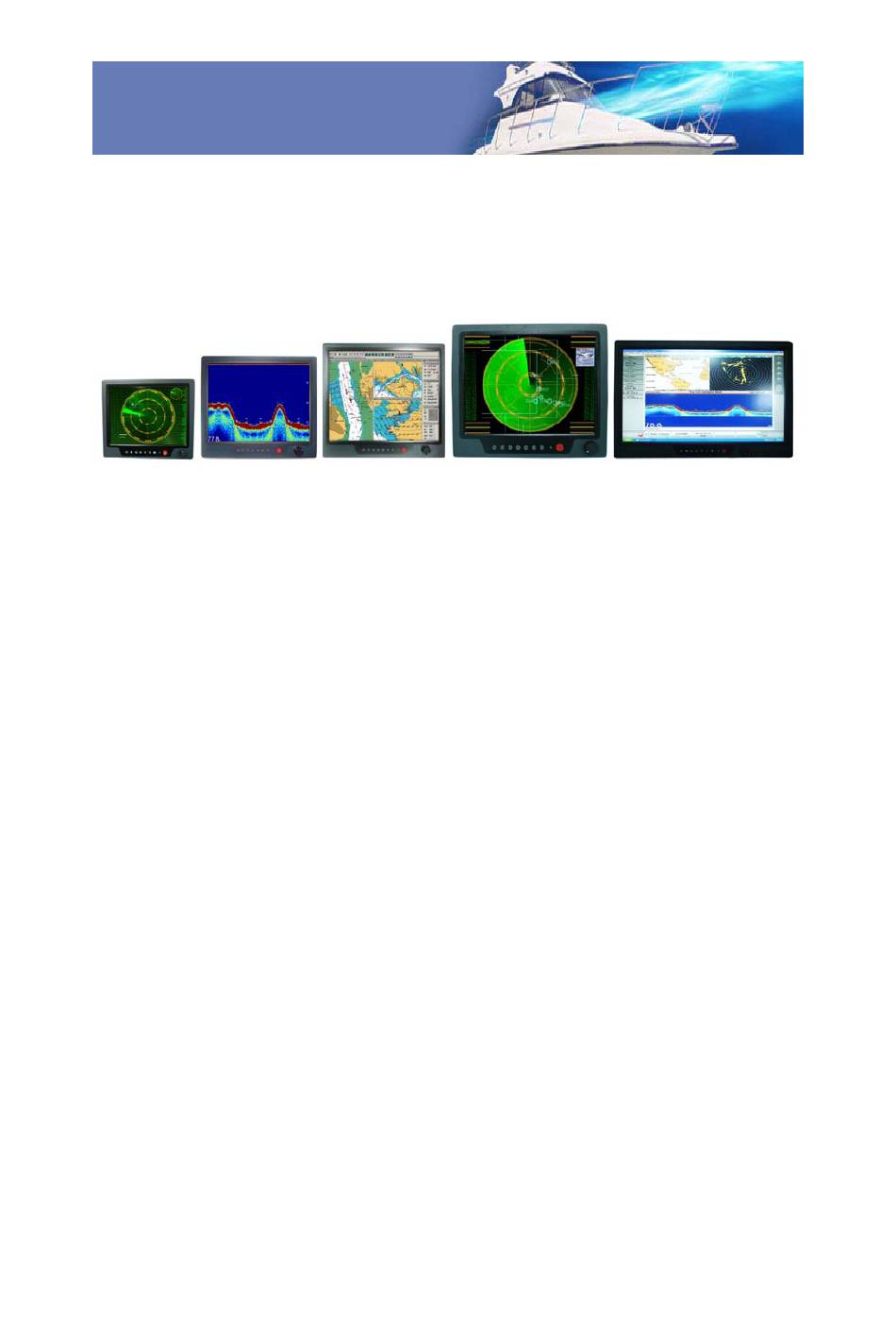

Navpixel™ USER MANUAL
NPD1236-12" IP-65 Marine Display
NDP1555- 15" IP-65 Marine Display
NPD1744- 17" IP-65 Marine Display
NPD1954- 19" IP-65 Marine Display
NPD2115- 21.5" IP-65 Marine Display
(1st Edition 9/15/2010)
All information is subject to change without notice.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPD1236-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Navpixel NPD1236-12

  • Page 1 Navpixel™ USER MANUAL NPD1236-12” IP-65 Marine Display NDP1555- 15” IP-65 Marine Display NPD1744- 17” IP-65 Marine Display NPD1954- 19” IP-65 Marine Display NPD2115- 21.5” IP-65 Marine Display (1st Edition 9/15/2010) All information is subject to change without notice. Page 1...

  • Page 2: Record Of Revision

    RECORD OF REVISION Version and Date Description Remark Sep.15 2009 Preliminary Release Page 2...

  • Page 3: Table Of Contents

    TABLE OF CONTENT RECORD OF REVISION ......................2 TABLE OF CONTENT....................... 3 1.0 INTRODUCTION......................7 2.0 CONTROL AND FEATURES..................... 8 3.0 INSTALLATIONS ......................9 4.0 TOUCH DRIVER INSTALLATIONS.................. 15 5.0 OSD OPERATIONS....................... 35 6.0 TECHNICAL SPECIFICATION..................51 7.0 MAINTENAINCE AND TROUBLESHOOTING..............61 Page 3...
  • Page 4 The Waste Electrical and Electronic Equipment (WEEE) Directive requires the recycling of waste electrical and electronic equipment. Whilst the WEEE Directive does not apply to some of Navpixel’s products, we support its policy and ask you to be aware of how to dispose of this product.
  • Page 5 Packing List Before installation, please ensure the following items have been shipped: 1 x Navpixel Series Marine Display 4 x Mounting bracket lugs and 4 stainless steel threaded studs 1 x Power Cable (5000 mm) 1 x VGA Cable (3000 mm)
  • Page 6 Ordering Information Model Number & Description NPD1236-EGAW-G01 12” Sunlight readable LCD, Optical bonding AR glass, 9~36V DC wide range input power NPD1236-EGAW-G011 12” Sunlight readable LCD, Optical bonding AR glass, 9~36V DC wide range input power, with power adaptor NPD1236-ETAW-G01 12”...

  • Page 7: Introduction

    You will soon become familiar with the quality difference in this bright sunlight readable (0.5 to 1,000 nits) monitor. The range of Navpixel Sunlight Viewable Marine Displays has been developed to be used as part of an integrated marine navigation system or within an entertainment system.

  • Page 8: Control And Features

    2.0 CONTROL AND FEATURES Your Navpixel Sunlight Viewable Marine Display has the following controls and features: Front View Remarks: The PIP function is only available for NPD1744, NPD1954 and NPD2115 model Back View Remarks: Only DVIx1 and VGAx1 for NPD1236 and NPD1555 model...

  • Page 9: Installations

    The Navpixel™ Series Marine Display is designed to be mounted in two configurations: VESA75 / VESA100 MOUNT The Navpixel™ Series Marine Display is designed compatible with VESA75 and VESA100 mount.
  • Page 10 Mounting holes on the Navpixel™ Series Marine Display allow the monitor to be mounted by rear mounted using VESA75 or VESA100 mount PANEL (Flush) MOUNT For installation, there are four tapped mounting holes on the two sides of the unit’s panel.
  • Page 11 Installing the display 1. Carefully insert the monitor into the aperture, ensuring that the gasket on the rear of the fascia lays flat against the aperture edge. IMPORTANT: The gasket must lay flat against the aperture edge to ensure watertight integrity.
  • Page 12 Your Sunlight Viewable display is designed to run on boat’s power systems, with AC/DC adaptor Navpixel series are equipped with 9~36V DC wide range power input. For power connection please make sure the power cable is tightly connected by two screws of the terminal block.
  • Page 13 The power connection to the display should be made at either the output of the battery isolator switch, or at a DC power distribution panel. Navpixel recommends that power is fed directly to the display via its own dedicated cable system and MUST be protected by a thermal circuit breaker or fuse, fitted close to the power connection.
  • Page 14 Typical Installation Diagram Remarks: The real installation diagram above is only for reference and will differ for different kind of customer’s applications Page 14...

  • Page 15: Touch Driver Installations

    4.0 TOUCH DRIVER INSTALLATIONS Both AR glass and Resistive touch screen solutions are used for our products. If you have a customized or tailored product, please check the specifications in this manual or provide us your third-party specifications. Resistive Touch Screen It generally uses a display overlay composed of layers, each with a conductive coating on the interior surface.
  • Page 16 1. Put the TouchKit CD to CD-ROM. 2. Change directory to Win9X_ME 3. Double click the Setup.exe, then windows starts to run the installation program. Notice that do not plug the USB controller on the system before the installation has been finished.
  • Page 17 7. Select the appropriate folder where set-up files will be installed. Then Press [Next >] to continue installation. 8. Then type in the name of program folder for TouchKit or press [Next >] to continue. There will be a default name for it. During driver installation, the setup program will scan COM port for RS232 Touchkit controller.
  • Page 18 10. Setup is complete. After TouchKit installation, the USB device will be found automatically as soon as it was plugged into the computer. Then users can see the new device on the application program window. And, the program will remove the USB Device automatically as soon as it was unplugged.
  • Page 19 Configuration Utility and Right Button Emulator There are five property pages in TouchKit utility, and they are General, Setting, Edge coefficient, Monitors and About. Each property page contains different functions for users to do the adjustments. Therefore, users can easily manage all the TouchKit controllers through TouchKit utility.
  • Page 20 Select the compatible language first or users may not see the normal display of each button. <Add> / <Remove> Please check the touch panel devices (including its controller) are equipped well, then click [Add] button to add all of those RS-232 and PS/2 devices to the Panel List dialogue box.
  • Page 21 But, for hot-swapping USB touch controller, it will be added automatically as soon as it was plugged into the computer. Then users can see the new device on the application program window. And, the program will remove the USB touch controller automatically as soon as it was unplugged.
  • Page 22 <Draw Test> Test the drawing position related to the display screen on panel. Click on the [Draw Test] button. There will be a squared blue display showing. In drawing test window, users can click [Clear] button to clear the window. Also, users can click [Quit] or press mouse right button to quit from the drawing test.
  • Page 23 Touch the blinking symbol on panel until beep or stop blinking. After the calibration, the new record will overwrite the old one. If the selected controller is capacitive type, an extra property page for capacitive setting adjustment shown as below: Please select property size of capacitive screen first, and press [Restart] The capacitive controller will restart, and do not touch the screen before the warning message disappears...
  • Page 24 <No Sound> Users could choose to make no sound while using the touch panel. <Touch Down> The system will make a sound while touching the panel. <Lift Up> The system will not make any sound until finger leaves the touch panel. <Frequency>...
  • Page 25 Change right / left button by clicking the upper small rectangular box of Touch Tray. Blue area expresses what button has been selected. <Shutdown utility> There are five modes in shutdown utility for users convenience. [Standby] to enter standby mode that saves power consumption. [Shutdown] to turn off PC.
  • Page 26 [Click on Touch] Click action is executed as soon as users touch the panel. [Click on Release] Click action will not be executed until finger leaves the panel. <Option> Touchkit provides an option for advanced Mouse Emulation setting. When the Option button is pressed, a setting property sheet will be popped up.
  • Page 27 If users want to cancel the function of TouchKit Hide Cursor, do the steps again and choose the other scheme. The Double Click adjustment provides users to set up the tolerance while double clicking. They are as follows : <Double Click Speed> Double Click Speed is the double click response time for Windows system.
  • Page 28 Top, Bottom, Left, Right, X Axis and Y Axis. In some case, if it is difficult to touch items at the edges of the touch panel, users can set adjustment to reach the edges of the screen image. <Top> If users set the Edge to <Smaller>, TouchKit will reduce the horizontal position of the top edge.
  • Page 29 pixel of Y Axis to bottom. <Edge Compensation Switch> Users can choose Edge compensation Enable / Disable from left bottom corner of Touchkit Utility. Using +10% and -10% button to adjust the smaller or larger of edge. If users press +10% button, the top, bottom, left and right edges will extend 10% of orientation to touch screen, and cursor will be moved 10 pixel of X and Y Axis to right and top.
  • Page 30 Uncheck this box will disable multiple-monitor configuration, and all of the touch panel controllers will be mapped to the primary monitor. The gray shadow area is the monitor mapped the selected controller/panel. The button [Mapping] is used to find the mapping relationships between the monitors and touch panel controllers.
  • Page 31 MONITOR ROTATION SETTING TouchKit driver package for Windows 98/ME/2000/XP provides two easiest ways to rotate the touch panel while the display is rotated. ● Rotating display by way of nVidia or ATI driver ● Rotating display by way of Pivot. 4.1 Rotating display by way of nVidia or ATI driver 1.
  • Page 32 display. 3. After choosing the angle users want to rotate, there will be one blinking symbol showing as the following picture. Touch this blinking symbol until stop blinking, and the touch panel will rotate itself. One touch blinking symbol adjustment 4.
  • Page 33 6. For Windows 95/98/ME OS, The Registry Editor will show as the follow picture. Then go to HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\VxD\TKIT. Right click on the MaxRotation, and choose Modify. Right click on MaxRotation to Modify Value data 7. Choosing the Hexadecimal Base, and replace the value data “4”(default) with “FFFFFFFF”.
  • Page 34 2. TouchKit setup dialog appears, and prepares to uninstall. 3. Confirm dialog, press [OK] to start un-installation; [Cancel] to cancel uninstallation. 4. Start to uninstall TouchKit. If users do not want to uninstall TouchKit at this moment, press [Cancel] to terminate the uninstall process.

  • Page 35: Osd Operations

    To power your monitor ON, just need to press this button and it will delay the power on sequence around 3 seconds. This is Navpixel’s brand new design to well protect your Navpixel Sunlight Viewable display damaged in the surge voltage from the engine.
  • Page 36 BRIGHTNESS Key When you press the BRIGHTNESS Key, the screen will show the following image You can press the UP /DOWN Key to do the screen brightness adjustment. When the brightness achieve 50 and keeping pressing “UP” Key, the dimming will keep the brightness at 50.
  • Page 37 NIGHT MODE KEY When you press the “NIGHT MODE” KEY, the dimming will be down to under 0.5 nit directly. And if you press “BRIGHTNESS” KEY or “VR” knob at this moment, it will be no function until you press the “NIGHT MODE” KEY again to release this restriction. When you press “MENU”, “DISP”, “PIP”...
  • Page 38 PIP KEY (Remarks: PIP KEY is no available for NPD1236 and NPD1555 model) 1. Default main screen shows at RGB1 & RGB2 Press “PIP” KEY Figure 1 2. Default main screen stays at DVI1 & DVI2 Press “PIP” KEY Figure 2 3.
  • Page 39 When you enter the “PIP Port Change” screen, the status bar will remain at “OFF” position if you keep pressing the “DOWN” KEY to the end. At the other hand, the status bar will remain at top item of each menu if you keep pressing the “UP” KEY to the end.
  • Page 40 PAP2 (Side by side full screen window) Picture Page 40...
  • Page 41 MENU KEY When you press “MENU” KEY, the Navpixel OSD main menu screen will appear as below: If you release the “MENU” KEY for 30 seconds without any action, the menu OSD screen will disappear automatically. You can also choose “QUIT” and then press “MENU” KEY to exit this OSD menu screen.
  • Page 42 RGB1 & 2’s setting screen: (Remarks: Only RGBx1 for NPD1236 and NPD1555 model) RGB Setting Item Description: ・ PHASE――― Horizontal Sampling Phase Adjustment。 ・ CONTRAST――― Contrast Adjustment。 ・ H_POSITION―― Horizontal Screen Adjustment。 ・ V_POSITION―― Vertical Screen Adjustment。 ・ R_LEVEL――― Red Color level Adjustment。 ・...
  • Page 43 DVI 1 & 2’s setting screen: (Remarks: Only DVIx1 for NPD1236 and NPD1555 model)   DVI Setting Item Description: ・ CONTRAST―――Contrast Adjustment。 ・ R_LEVEL――― Red Color level Adjustment。 ・ G_LEVEL――― Green Color level Adjustment。 ・ B_LEVEL――― Blue Color level Adjustment。 ・ TEMPERATURE――― Color Temperature Adjustment。 ・ DISP MODE――― FULL―――...
  • Page 44 VIDEO 1 & 2 & 3’ setting screen: VIDEO Setting Item Description: ・ CONTRAST――― Contrast Adjustment。 ・ SHARPNESS――― Horizontal edge sharpness ・ HUE――― Color Adjustment ・ R_LEVEL――― Red Color level Adjustment。 ・ G_LEVEL――― Green Color level Adjustment。 ・ B_LEVEL――― Blue Color level Adjustment。 ・...
  • Page 45 PIP Sub-menu setting screen: (Remarks: PIP function is not available for NPD1236 and NPD1555 model) PIP Setting Item Description: ・ PIP_SIZE――― Picture in Picture Screen Size Adjustment。 ・ CONTRAST――― Contrast Adjustment。 ・ R_LEVEL――― Red Color level Adjustment 。 ・ G_LEVEL――― Green Color level Adjustment 。 ・...
  • Page 46 OSD Setting Main Screen: OSD Setting Item Description: ・ H_POSITION―― Horizontal Screen Adjustment。 ・ V_POSITION―― Vertical Screen Adjustment。 ・ TRANSLUCENT――― Screen background color can be adjusted as transparent as you want (total 10 scales)。 ・ BRIGHTNESS――― Selection between “BRIGHTNESS” key or “VR” Button for brightness adjustment。...
  • Page 47 Programmable OSD Source Tag setting screen: 1. Press the “RIGHT/LEFT” key to selected channel 2. Press the “MENU” key to rename the “RGB1” to any desired source input (ex. Sonar, Radar…etc). You may press “RIGHT/LEFT” key to select from (A~Z, 0~9, “.”, “-“) character.
  • Page 48 3. This is the picture of renaming RGB1 channel to “RADAR” SYSTEM RETURN setting screen: Page 48...
  • Page 49 You may choose “SYSTEM RETURN” selection item on the OSD Screen to restore all of the parameter setting to factory default value. When you press “UP” or “RIGHT” KEY, the parameter will show “YES” and confirm it. Page 49...
  • Page 50 “KEY LOCK” Mode Function setting screen: When you press “MENU” and “BRIGHTNESS” KEY simultaneously for 3 seconds, you will enter the “KEY LOCK” mode. At the same time, the screen will show “KEY LOCK” image as below for 5 seconds and then disappear. In the “KEY LOCK”...

  • Page 51: Technical Specification

    6.0 TECHNICAL SPECIFICATION 6.1 Specification- NPD1236 LCD Display Backlight 12" LED Backlight 245.76x184.32 mm Active Display Area Brightness 1000 cd/m2 * Resolution 1024x768 (XGA) 800:1 Contrast Ratio Pixel Pitch (mm) 0.24(H)x0.24(V) Viewing Angle 140 (H), 140(V) Display Color 262,144 Tr: 6ms, Tf: 17ms Response Time VGAx1, DVIx1, Composite x3, RS232x1 Inputs...
  • Page 52 6.2 Specification- NPD1555 LCD Display Backlight 15" LED Backlight 304.128 x 228.096 mm Active Display Area Brightness 1000 cd/m2 * Resolution 1024x768 (XGA) 700:1 Contrast Ratio Pixel Pitch (mm) 0.297(H) x 0.297 (V) Viewing Angle 160 (H), 160(V) Display Color 16.2M Tr:8ms, Tf:17ms Response Time...
  • Page 53 6.3 Specification- NPD1744 LCD Display Backlight 17" LED Backlight 337.92 x 270.336mm Active Display Area Brightness 1000 cd/m2 * Resolution 1280x1024 (SXGA) 1000:1 Contrast Ratio Pixel Pitch (mm) 0.264 (H) x 0.264(V) Viewing Angle 160 (H), 160(V) Display Color 16.2M Response Time VGAx2, DVIx2, Composite x3, RS232x1 Inputs...
  • Page 54 6.4 Specification- NPD1954 LCD Display Backlight 19" LED Backlight 376.32 x 301.06mm Active Display Area Brightness 1000 cd/m2 * Resolution 1280x1024 (SXGA) 900:1 Contrast Ratio Pixel Pitch (mm) 0.294(H) x 0.294 (V) Viewing Angle 160 (H), 160(V) Display Color 16.2M Response Time VGAx2, DVIx2, Composite x3, RS232x1 Inputs...
  • Page 55 6.4 Specification- NPD2115 LCD Display Backlight 21.5" LED Backlight 476.64 x 268.11mm Active Display Area Brightness 1000 cd/m2 * Resolution 1920x1080 (FHD) 1000:1 Contrast Ratio Pixel Pitch (mm) 0.248(H) x 0.248 (V) Viewing Angle 170 (H), 160(V) Display Color 16.2M Response Time VGAx2, DVIx2, Composite x3, RS232x1 Inputs...
  • Page 56 6.5 ME Drawing- NPD1236 Page 56...
  • Page 57 6.6 ME Drawing- NPD1555 Page 57...
  • Page 58 6.7 ME Drawing- NPD1744 Page 58...
  • Page 59 6.8 ME Drawing- NPD1954 Page 59...
  • Page 60 6.8 ME Drawing- NPD2115 Page 60...

  • Page 61: Maintenaince And Troubleshooting

    7.0 MAINTENAINCE AND TROUBLESHOOTING Precautions To maximize the life and safe use of your unit, always be sure to follow the warnings, precautions and maintenance recommendations in this user’s guide. In a Watercraft or Vehicle: The monitor should be visible to the driver only if it is used for navigation, or system control.
  • Page 62 Troubleshooting All Navpixel products are, prior to packing and shipping, subjected to comprehensive test and quality assurance programs. However, if this unit should develop a fault, please refer to the following table to identify the most likely cause and the corrective action required to restore normal operation.
