WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected
structure may result causing property damage, personal injury, or loss of life.
All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for
other structure construction purposes.

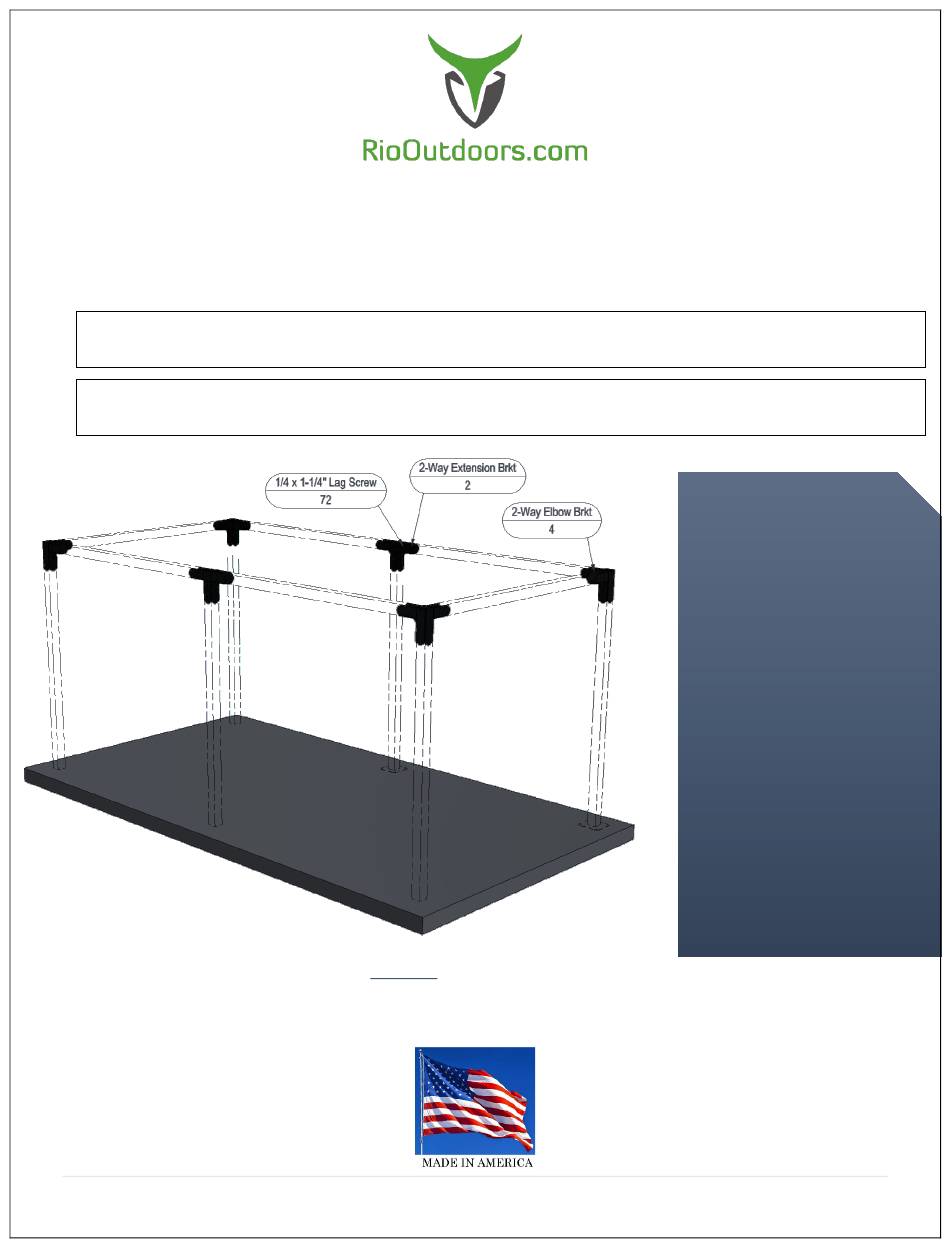

Figure 1: Items included in the kit, (
Items not included in this kit: wood, tools, some hardware.
1 |
P a g e
Installation Instructions
4x4 Post-in-Ground Double Cubic Pergola Kit
Pergola Kits
).
������������������������ ���� �������� ���� ����
������������������������ ���� ����
4P-DC
•
Thoughtfully engineered
Brackets eliminate all wood-
joinery skills requirements.
•
Skills required: footing &
post install, drilling pilot
holes and driving lag
screws into lumber.
•
Easy lift and place U-
channels eliminate need
for lifting equipment.
Super-easy assembly
work.
•
Self-aligning design
squares up structure
automatically.
Estimated Assembly
•
Time is less than 1 hour
(after posts are
installed).
Advertisement
Table of Contents
Related Manuals for RioOutdoors 4P-DC
Summary of Contents for RioOutdoors 4P-DC
- Page 1 WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected structure may result causing property damage, personal injury, or loss of life. All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for other structure construction purposes.
-
Page 2: Table Of Contents
......10 RACKETS INSTALLATION XTENSION RACKET NSTALLATION ........... 4 OOLS REQUIRED ......... 15 EADERS NSTALLATION # 4P-DC ........5 ONTENTS OF ....5 ............18 IST OF MATERIALS THAT YOU WILL SUPPLY ONDITIONS ........6 ............18 POST GROUND YSTEM XCLUSIONS ........ -
Page 3: Safety And Warning Information
GENERAL INFORMATION SAFETY AND WARNING INFORMATION 1.1.1 Building Permit & Inspection Requirements We recommend that you consult with your local building permit office and obtain advice and any required building permits and inspection approvals from the local building inspection department or the local jurisdiction having authority over building codes. 1.1.2 Other Cautions CAUTION: Adhere to all safety requirements. -
Page 4: Tools Required
TOOLS REQUIRED Listed below, are common tools required for pergola projects. These tools are not included in this kit. Your pergola project may not require all tools. Select and acquire the tools for your project from the “Required for” column in this table. Description Tool Purpose Required for... -
Page 5: Contents Of Kit
The contents of this kit are shown in the table, below. Before you begin your project, take an inventory of all items that you received from us. If any items are missing, contact us directly via email at info@RioOutdoors.com. Include your name and shipping address and your order number, if available. -
Page 6: Post-In-Ground System
POST-IN-GROUND SYSTEM 1.5.1 What is a Post-in-Ground anchoring system? As the term indicates, Post-in Ground, means that the vertical posts for a pergola are inserted deep into concrete footings and anchored in that way. The depth of the footing and the length of the post required to be embedded into the footing is determined by the maximum depth of the frost line for a particular area. - Page 7 1.5.2 Study the posts layout requirements. First, study the posts layout requirements. Spend some time planning, yourself, so you are fully familiar with the final size you desire for your poergola.The lengths of the headers will determine the post center locations. Use the table, below, and the general guidelines to determine the post center locations.
- Page 8 1.5.3 Call 811. 811 is the national call-before-you-dig phone number. Anyone who plans to dig should call 811 or go to their state 811 center's website before digging to request that the approximate location of buried utilities be marked with paint or flags so that you don't unintentionally dig into an underground utility line.
-
Page 9: Ide Elevation Diagram
SIDE ELEVATION DIAGRAM Based on the height of the post used, the diagram below provides the side elevation profile for this pergola system. POST HEIGHT DIM A DIM B 92.5 104.5 116.5 128.5 140.5 Dim A, above, is the height of the post used. Dim B is the inner ceiling height of the pergola. Dim B is measured to the bottom surface of the header member. -
Page 10: Ost -Top Brackets Installation
POST-TOP BRACKETS INSTALLATION 1. Slide the 2-way elbow bracket’s tube over the 4x4 post top after aligning the header receiver u-channels in the proper direction. Let gravity work and pull the bracket all the way down on top of the post. 2. - Page 11 3. Wrap a piece of electrical tape around the drill bit, spaced 1-1/4” from the drill bit tip. This will act as a hole depth indicator when you drill each pilot hole. Pilot holes should be drilled at least 1-1/4” deep. A little bit deeper is acceptable but do not drill less than the required 1-1/4”...
- Page 12 5. Drive one ¼ x 1-1/4” Hex Lag Screw through each 5/16” hole into the pilot holes you drilled in step 4, using a 7/16” Socket and Rachet driver. Tighten down each screw. 6. Repeat steps 1 through 5 for each post top bracket. 12 | P a g e...
- Page 13 POST TOP 2-WAY EXTENSION BRACKET INSTALLATION The post-top extension bracket is to be mounted to the top of the middle support post. It will receive two headers running in opposing directions. 1. Orient the post-top 2-way extension bracket’s U-channels in the desired direction and slide the square tube over the top of the center post.
- Page 14 3. Using a 7/16” socket and ratchet driver, drive a ¼” X 1-1/4” Lag Screw through each pilot hole you drilled. 14 | P a g e...
-
Page 15: Headers Installation
4X4 HEADERS INSTALLATION 1. Lift and place one 4x4 header into the U-channels of adjacent post-top brackets. 2. Locate the two 5/16” holes on each vertical face of the U-channels holding the 4x4 header. Drill 3/32” X 1-1/4” deep pilot holes at the center of four 5/16” Holes. Locate pilot holes at the center of each 5/16” hole. 15 | P a g e... - Page 16 3. Drive one ¼ x 1-1/4” Hex Lag Screw through each 5/16” hole into the pilot holes you drilled in step 8, using a 7/16” Socket and Rachet driver. Tighten down each screw. 4. Repeat steps 1-3 for all headers. 16 | P a g e...
- Page 17 Was it easy to do? Did parts fit easily and properly? Do you like the quality of our products and design styles? Is your pergola structure sturdy and strong? Please go to RioOutdoors.com and provide us with your review. Thank you for being a RioOutdoors.com customer.
-
Page 18: Onditions
Warranty protects against defect in manufacture only, unless herein specified otherwise. Any part(s) found to be defective during the warranty period as outlined above will be repaired or replaced at RioOutdoors.com’s option provided that the defective part is returned, if requested by RioOutdoors.com. Alternatively, RioOutdoors.com may at its own discretion fully discharge all its obligations under the warranty by refunding the verified purchase price of the product to the original purchaser. -
Page 19: Imitations Of Liability
Parts where the RioOutdoors.com logo has been altered, deleted, removed, or made illegible will void this warranty. Minor movement, expansion and contraction of the steel parts is normal and is not covered under the terms of this warranty.
