- Page 1 GT02 GPS ANTI-THEFT ALERT SYSTEM (GPS+GSM+SMS/GPRS) Fast Installation Instruction & User Manual In order to install and operate the GPS tracker in right method and properly, please read this Fast Installation Instruction & User Manual before installation, Thank you.
-
Page 2: Table Of Contents
Catalog GT02 Models........................3 Package & Accessories....................3 Functions ..........................3 Technical Parameter ......................4 LED Indication........................4 Device Appearance.......................4 Installation Instructions ....................5 Before Installation......................5 Installation ..........................5 Terminal wiring Instructions ..................6 Terminal Operations......................9 Start-up/Shut-down ......................9 Terminal parameters settings..................9 Cellphone SIM Card Number Binding..............9 ... -
Page 3: Gt02 Models
A. GT02 Models GT02 Normal Version – Real-time Tracking, Vibration Alarms, Movement Alarm; GT02 Upgrade Version – Real-time Tracking, Vibration Alarms, Voice Monitoring Movement Alarm; GT02 Enhanced Version – Real-time Tracking, Vibration Alarms, Cut-off Engine or Oil pump Movement Alarm;... -
Page 4: Technical Parameter

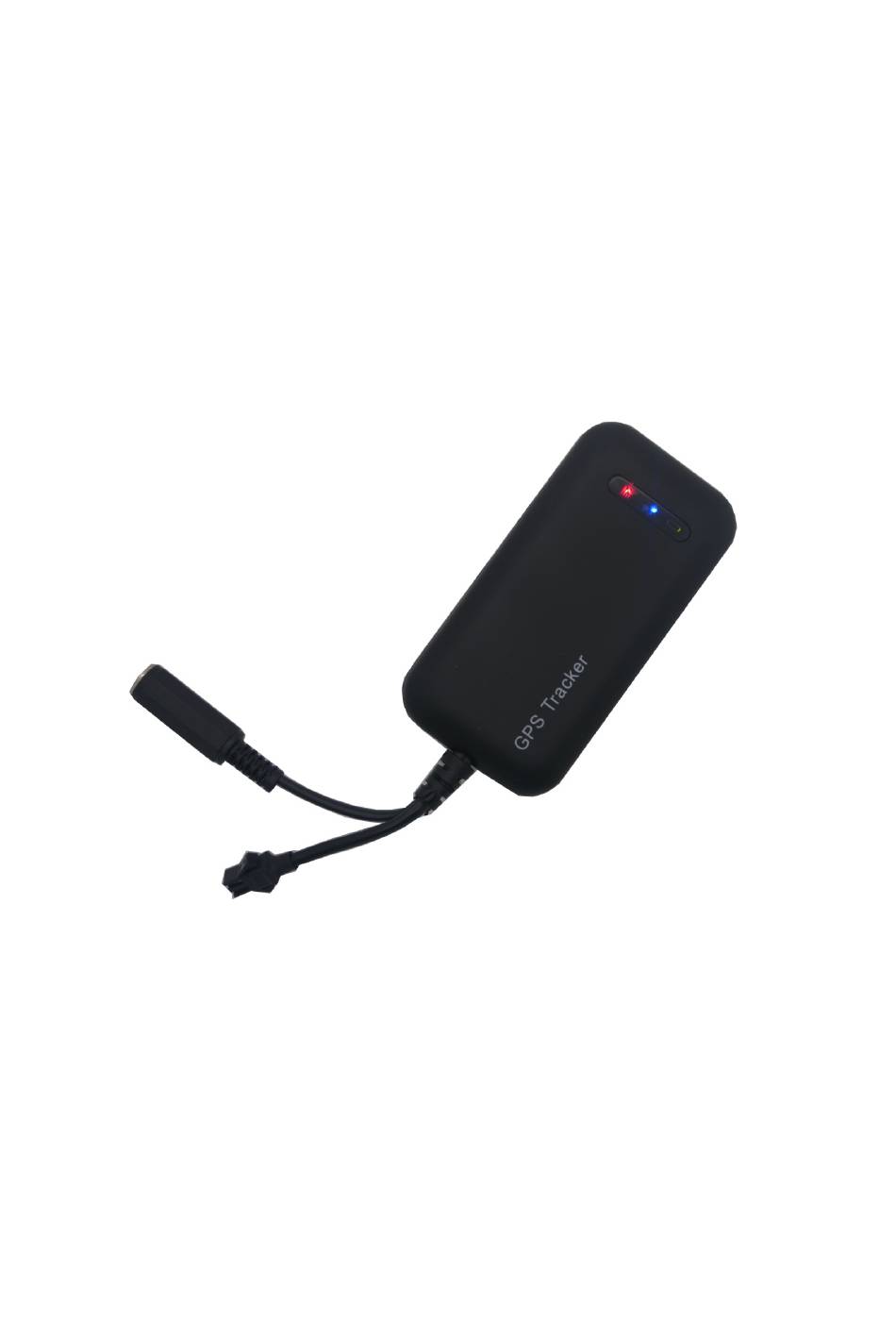

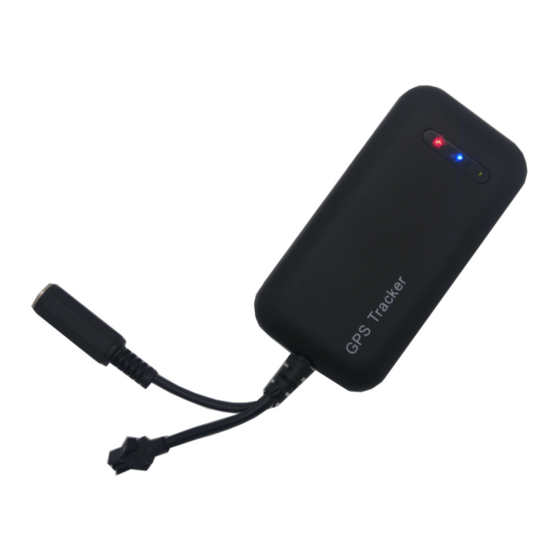

,SIM card balance, and GPRS functions, etc. Blue LED (GPS Indicator): No flash, GPS signal cannot be received, please check that whether anything metal or contain metal block the signal or in the GPS blind zone. F. Device Appearance GT02 GT02-U GT02-E GT02-M... -
Page 5: Installation Instructions
G. Installation Instructions 1. Before Installation Open the package, please look over whether the part number is correct and whether accessories complete, if not, please contact your distributor for further assistance; Choose correct SIM card, a SIM card will be needed to insert into the terminal, please consult distributors options for further use;... -
Page 6: Terminal Wiring Instructions
Within back decorated board under windshield; Please Note: Any metal heat shield layer or heating layer will reduce the signal of GPS, it may cause GPS function failure, please adjust the installation place; H. Terminal wiring Instructions GT02 GT02-U... - Page 7 GT02-E GT02-M...
- Page 8 1. Power wire, ACC detection wire, Engine power or oil control relay wire (7pin) The terminal standard power voltage is 9V-24VDC, please use the original power wire supplied by the original factory, red wire is power source positive end, black wire is the negative end;...
-
Page 9: Terminal Operations
Loudspeaker wire (1 pin) Connect with the external vehicle speaker, with a microphone, it can make 2 ways phone calls, or send voice alarms when theft behavior was detected; MIC wire (1 pin) Connect with external microphone, used in voice monitoring case or phone calls; 2. -
Page 10: Google Address Link
Google Address Link Send SMS: GOOGLE to terminal, it will reply the terminal current geography location link http://maps.google.com/maps/?f=q&hl=en&&q=31.237395,121.390373333333;S= 0;D=2012-5-23 12:00:00;D=0 Please note: the default time is Greenwich time, actual time needs to add your time zone number e.g.: enquiry time is 12:00:00, Chinese time is 20:00:00 (+ 8 hours) ... -
Page 11: Movement Alarm
Movement Alarm Movement Alarm on when the vehicle is at vibration alarm on status. Turn On SMS Command: *MVALMON#000000# Turn Off SMS Command: * MVALMOFF#000000# Condition Set SMS Command: *MVALM#000000#Speed#Vibration Times# E.g. *MVALM#000000#3#10# 3: Speed>=3km/h & 10 time vibration detected, then movement alarm triggered. -
Page 12: Trouble Shooting
K. Trouble Shooting 1. Terminal installed at the first time, and it can’t connect to service platform, platform always shows offline. 3. Is main power correct? Do not connect it with the vehicle internal control wires; 4. SIM card installation right, please check the installation instruction; 5. -
Page 13: Gps Vehicle Tracking Terminal Warranty Card
checking terminal problems, re-power the terminal to work status; GPS VEHICLE TRACKING TERMINAL WARRANTY CARD Please Note: Any upgrade of this products later on , notifications will only be sent to distributors; Any changes on appearance or colour, pictures are only for information, take practicality as standard;...
