Summary of Contents for AlcoSafe KX6000S-4
- Page 1 KX6000S-4 premium digital alcohol breath detector Please read this user manual before use. Result of this unit for reference only. Use ALKALINE batteries only. DO NOT DRINK AND DRIVE! Owner’s Manual...
-
Page 2: Components Diagram

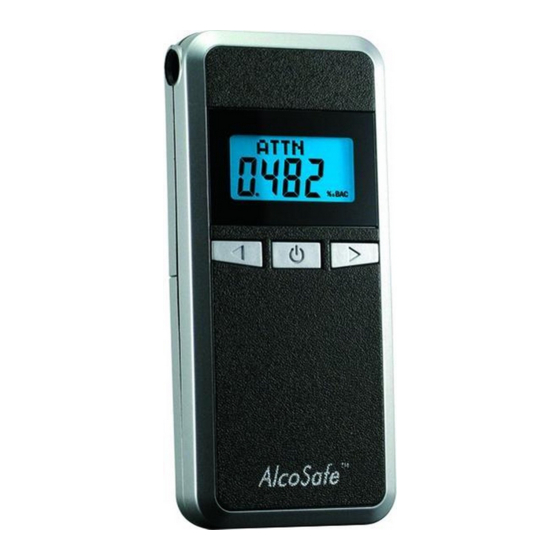

The AlcoSafe KX6000S-4 is a premium grade digital alcohol breath detector that quickly screens for the presence of alcohol in breath. The 4-digit LCD display indicates the Blood Alcohol Content (BAC) up to 3 decimal point of accuracy for the test subject in seconds. -
Page 3: Installing The Batteries
Wait 20 minutes after the subject drinks, smokes or eats before testing. Failure to wait 20 minutes can give inaccurate BAC readings. Insert mouthpiece: Insert the KX6000S-4 mouthpiece firmly Step 1 into the mouthpiece slot on the upper left hand side of the unit. - Page 4 Press Right button to show the last test record. Press Right button again to return to Welcome screen. Note: KX6000S-4 stores a maximum of 64 test records. Refer to ‘Display test result records’ for guidance for retrieving previous test records...
- Page 5 Illustration of BAC result KX6000S-4 detects BAC within the range 0.000 to 4.000 ‰BAC (i.e: 0.000 to 0.400%BAC or 0.000 to 2.000 mg/l). Different system alert messages would be displayed on different measured BAC level as below: ‰BAC (g/l) 0.000 - 0.100 %BAC 0.000 - 0.010...
- Page 6 On Screen Menu - Navigation path On Welcome screen, Press Right button for 2 seconds to enter the menu structure of : - SET (Temperature display format, BAC display format, Alert level, Beep sound, Number of digit display) - REC (Display test result record) - TEST (Display cumulative test count) - CAL (Calibration) SET temperature display format...
-
Page 7: Set Temperature Display Format
Set temperature display format KX6000S-4 displays temperature in format of Celsius °C / Fahrenheit °F. The display format could be set as below: On Welcome screen, press Right button for 2 seconds. SET mode is displayed. Press Power button 1 time to enter SET mode for setting temper- ature display format. - Page 8 ‰BAC. Press Power button to confirm setting. Set beep sound when blowing KX6000S-4 could be configured to give beep sound / no sound when blowing as below: On Welcome screen, press Right button for 2 seconds. SET mode is displayed.
- Page 9 4-digit display: d-4) Press Power button to confirm setting. Display test result records KX6000S-4 stores BAC test results up to 64 records. The stored records could be recalled as below: On Welcome screen, press Right button for 2 seconds. SET mode is displayed.
- Page 10 Display cumulative test count KX6000S-4 stores the number of tests it has performed as a cumulative test count. On Welcome screen, press Right button for 2 seconds. SET mode is displayed. Again press Right button 2 more times to enter the TEST mode.
-
Page 11: Error Messages
This message displays when Low Battery. Install two (2) new AA alkaline batteries. Calibration The KX6000S-4 is calibrated during manufacture using advanced alcohol simula- tion equipment. Known alcohol concentrations are passed through the sensor to set baseline values for testing. During testing, the unit compares users’ breath samples to these baseline values. -
Page 12: Warranty
Two 1.5V AA Alkaline Batteries (Not Included) Battery life Approx. 200 - 300 tests with new batteries Dimensions 114 x 51 x 18 mm Recalibration Recommended every 6-12 months or 300 tests Don’t Risk It, Know Your Limit. Do Not Drink And Drive! KX6000S-4...
