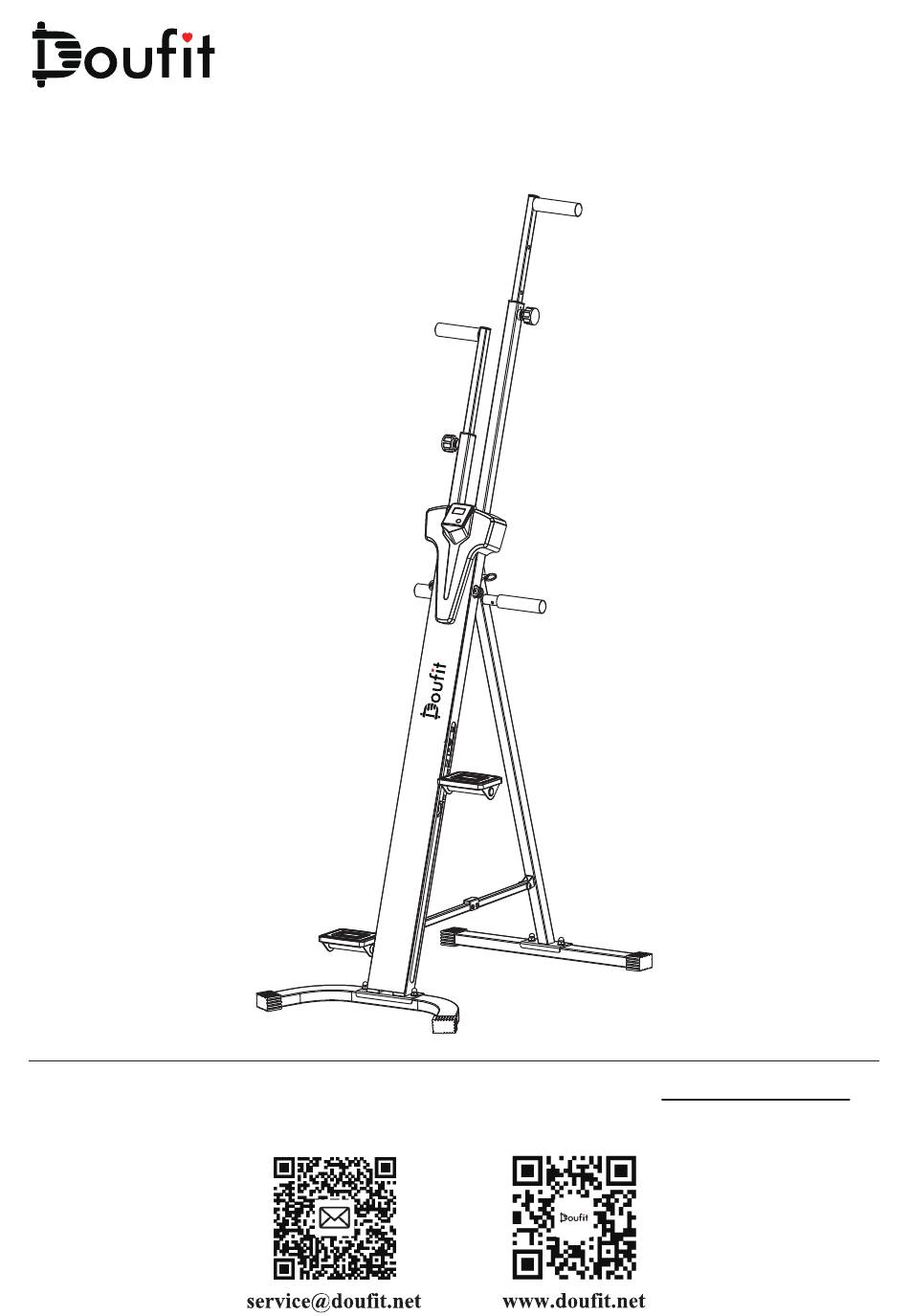

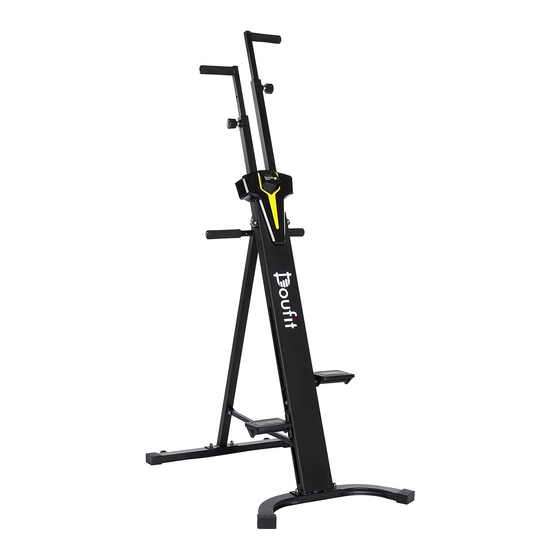

- Page 1 CM-01 Climbing Machine Instruction Manual If the item is damaged or some parts are missing, please contact service@doufit.net with your order number, we will try our best to solve it for you ASAP.
- Page 2 Catalogue Precautions-------------------------------------------------------------------------------------------------------- - - -- Parts List ---------------------------------------------------------------------------------------------------------- - - -- Exploded Diagram ------------------------------------------------------------------------------------------------- - - - 3 Assembly Method ------------------------------------------------------------------------------------------------- - - - 4 Usage Method ------------------------------------------------------------------------------------------------- ------ - - 6 Details of Monitor ------------------------------------------------------------------------------------------------- - - - 7 Precautions *The maximum load bearing is 100 Kg (about 220 Lbs).
- Page 3 Parts List If any part is missing, distorted or broken when you receive the package, please contact service@doufit.net with your order number, we will send the replacement part to you as soon as possible. Component 1.Main frame 2.Monitor 3.Front foot pipe 4.Rear foot pipe...
- Page 4 Exploded Diagram 17 18 17 18 Page 3...
- Page 5 Assembly Method For the assembly video, please visit: www.youtube.com/channel/UCorBKk34KZgI96OyGSkjFdA Step 1: Assemble the folding rod Unfold the main frame(No.1) and insert the detent pin(No.11) to fix. Then screw a M8*30mm Allen bolt (No.22) and M8 lock nut (No.21) to fix the folding rod. 11.Detent pin x 1pcs 21.M8 lock nut 22.M8*30mm...
- Page 6 Step 3: Assemble the pedals For this step, please prepare left pedal(No.5), right pedal(No.6), four M6 hex socket cap bolts(No.15)(the longer kind) and Allen wrench(No.20). Attach two pedals to both sides of the frame. Screw four M6 hex socket cap bolts with the Allen wrench to fix. 5.Left pedal 6.Right pedal 15.M6*20mm hex...
- Page 7 Step 5: Assemble the fixed handles Insert two handles to both sides of the frame. Adjust handles to fix. Usage Method The method to lube Use the oil to lubricate the connection part of the handle and main frame The method to change the battery If the battery is low, please pull out the monitor and then change an AAA battery.
- Page 8 Details of Monitor Parameters TIME 00:00-99:59 COUNT 0-9999 T-COUNT(Total Count) 0-9999 DIS(Distance) 0.00-999.9ML CALORIES 0.0-9999KCAL Operation Turn on/off The monitor will automatically turn on when you start to exercise, and you can also turn on it manually by pressing the button. The monitor will automatically turn off after a while when you stop exercise.
