- Page 1 Manual CT-HDVD-5X1-MINI User Manual...
-
Page 2: Table Of Contents
CT-HDVD-5X1-MINI Manual Safety For optimum performance and safety, please read these instructions carefully before connect- ing, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction

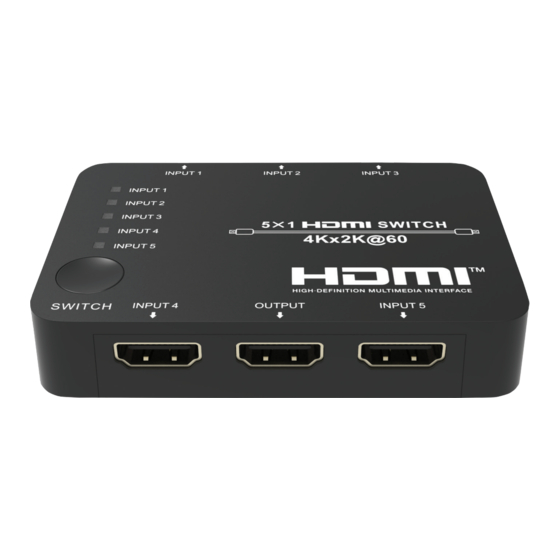

CT-HDVD-5X1-MINI Manual 1.0 Introduction The 4K HDMI 5 Port Switch can switch any of the 5 HDMI sources to 1 HDMI display. Support- ed video resolution up to 4K2K@50/ 60Hz YCbCr 4:4:4. This product supports HDR, HDR10, Dolby Vision and HLG. It supports all 3D video formats. Boasting a low power consumption and small form factor, this device can be controlled via the front panel button or remote control included in the box. -
Page 4: Specifications
CT-HDVD-5X1-MINI Manual 4.0 Specifications Technical HDCP Compliance HDCP 2.2/1.x Video Bandwidth 18Gbps Video Resolution Up to 4k2k@60Hz Color Depth 8-bit (4K60Hz) Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4 PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby HDMI Audio Formats True HD, DTS-HD Master Audio Human body model—±8kV (Air-gap discharge) &... -
Page 5: Operation Controls And Functions
CT-HDVD-5X1-MINI Manual 5.0 Operation Controls and Functions No Name Function Description Connect to HDMI source devices such as DVD or Blu Ray player with an HDMI INPUT (1/2/3/4/5) HDMI cable. The corresponding LED will illuminate when the HDMI input port connects an INPUT 1/2/3/4/5 LED active source device. -
Page 6: Remote Control
CT-HDVD-5X1-MINI Manual 6.0 Remote Control IN1/IN2/IN3/IN4/IN5: Press IN1/IN2/IN3/IN4/IN5 button to switch HDMI source signal to output display, and the corresponding LED will illuminate. Press this button to cyclically select input source to output display. -
Page 7: Application Example
CT-HDVD-5X1-MINI Manual 7.0 Application Example... -
Page 8: Warranty
CT-HDVD-5X1-MINI Manual 8.0 CableTronix 1-Year Limited Warranty CABLETRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. - Page 9 CT-HDVD-5X1-MINI Manual The Company shall not be liable to you for loss of data, loss of profits, lost savings, special, inci- dental, consequential, indirect, or other similar damages arising from breach of warranty, breach of contract, negligence, or other legal action even if the Company or its agent has been ad- vised of the possibility of such damages, or for any claim brought against your by another party.
