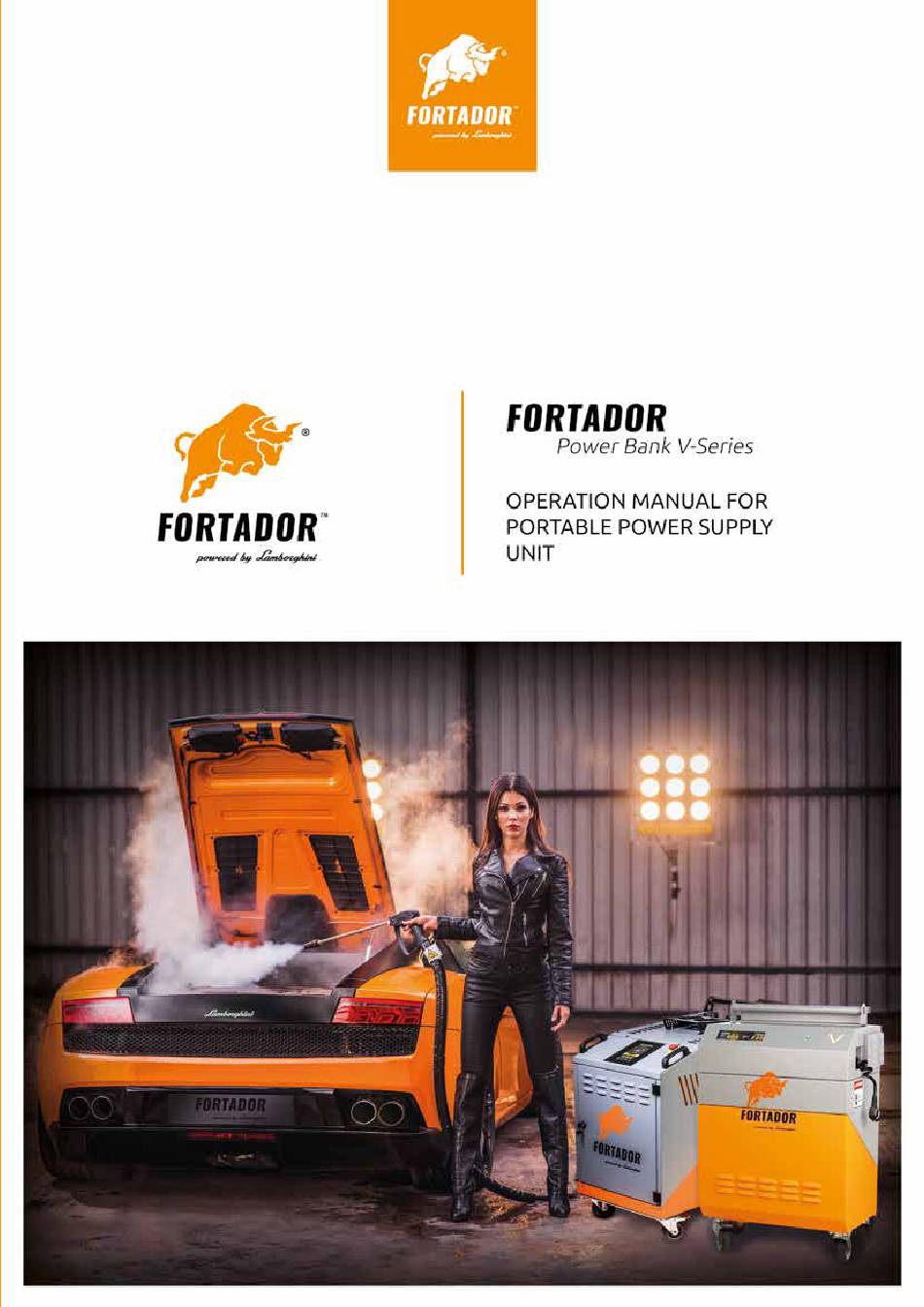

Summary of Contents for Fortador Power Bank V Series
-
Page 2: Note
NOTE Read the operating instructions carefully before starting up to avoid incorrect use or dangerous situations for people, animals or objects. The manufacturer is not responsible and excludes the application of the warranty conditions in cases of: improper use or use in improper conditions, damage resulting from normal wear and tear or aging, misuse, negligence, improper operation or storage, exposure to moisture, self-modification or repair, improper installation, use of improper power source, operator errors, failure to follow instructions or other events which... -
Page 3: Table Of Contents
TABLE OF CONTENTS Note ....................................Table of Contents ............................... Introduction................................. Technical specification .............................. Device characteristics ..............................Safety information ..............................Unpacking ..................................Before each start-up ............................... How to use and install the device for the first time ..................Washing ..................................Control panel functions ............................ -
Page 4: Introduction
Fortador Power Bank V Series is an alternative to fuel or gas powered generators. It generates no annoying sound or fumes, so it can be used in HACCAP conditions, healthcare or rooms with limited ventilation. -
Page 5: Technical Specification
Technical data is shown on the nameplate mounted on the rear panel of the housing. Always quote the serial number on the rating plate when contacting the service department. Manufacturer: Fortador Europe Model: Fortador Power Bank V-Series Voltage (IN): 230V AC 50-60 Hz Voltage (OUT): 230V AC+-1%(ACU)+-8%AVR Power: 2500 VA /1800 W / <1A... -
Page 6: Device Characteristics
2. Grip/holder for Pro+/ProS device 3. On/off switch 4. Power cord 5. On/off switch. vacuum cleaner. socket number 7 6. Charging on/off switch 7. Electric socket with a “Soft start” function for connecting a vacuum cleaner 8. Power socket for Fortador devices... -
Page 7: Safety Information
SAFETY INFORMATION The V-Series Industrial Portable Power Bank should not be handled by anyone unaware of the hazards involved. The information and recommendations in these instructions must be properly understood and followed if the correct and safe operation of the device is to be achieved. As with most mechanical equipment, proper safety precautions must be observed when operating and handling this device. - Page 8 • Do not use a damaged machine or one in which the power cord shows signs of damage. If the machine is not working as it should, has fallen, been damaged, been left outside, or has been flooded, contact service: help@fortador.com. • Do not pull or lift by the power cord.
-
Page 9: Unpacking
UNPACKING 1. Gently remove the machine from the packaging. 2. Inspect the unit for any damage that may have occurred during delivery. 3. We recommend that you keep the packaging. Packaging dimensions... -
Page 10: Before Each Start-Up
BEFORE EACH START-UP Start/stop button The procedure should be carried out before starting the machine to ensure proper and safe operation. 1. Make sure that the electrical cord, electrical outlets are not damaged. 2. Check that the case is closed. 3. -
Page 11: How To Use And Install The Device For The First Time
Battery charge level If the batteries are discharged, follow the instructions Charging the Power Bank. If the unit shows the maximum battery charge - follow the instructions - Connecting the Fortador car wash to a portable power source Power Bank V series. - Page 12 DESCRIPTION OF THE POWER BANK DISPLAY FUNCTIONS Device connected to exter- Charging exceeds the nal power supply - AVR. rated power of the device. The device uses battery Battery charge level power supply - AC information. The temperature is too Battery bar showing batte- high, the unit shuts off the ry capacity.
-
Page 13: Washing
Start the Power Bank according to the Power Bank Startup procedure. Check that the device shows the correct battery level on the display. Connect the Fortador device to outlet number 8 Power socket for Fortador devices (number 8) When connecting the Pro+ device, you must first connect the unit’s vacuum cleaner to socket number 7 on the Power Bank. - Page 14 Fortador Pro+ is connected). On/off switch - vacuum cleaner - socket number 7 After completing the steps of connecting the Fortador to the portable Power Bank, depending on the model of the unit, start the Fortador and begin operation.
- Page 15 CHARGING THE POWER BANK DEVICE If the unit is discharged, the display will indicate that the unit is out of power, in the form of a single dash on the battery meter. Battery bar showing battery capacity Connect the unit to an external power source using the power cord.
-
Page 16: Control Panel Functions
SWITCH OFF PROCEDURE Disconnect all devices connected to the Power Bank device, sockets number 7 and 8. Disconnect the device from the external power supply. Power cord Hold down the start/stop button for 5 seconds until a beep sounds. Start/stop button... - Page 17 CE DECLARATION Fortador K.A. Traczyńscy Sp.J. Manufacturer Aleja Krakowska 108 05-090 Sękocin Stary, Poland Product designation Portable power suply unit Brand Fortador Model Power Bank V-Series Directive No. 89 / 336 / EEC Voltage during test AC 230 V / 50 Hz...
-
Page 18: Shutdown Procedure
TRANSPORT The device can be transported by any means of transport, provided that it is properly immobilised (e.g. with belts) and protected against damage in the original box delivered with the machine. Make sure that the wheels of the machine are properly locked and the belts are properly tightened to prevent the machine from moving. -
Page 19: Final Remarks
FINAL REMARKS Properly maintained and serviced, FORTADOR Power Bank devices ensure a long period of reliable operation. Problems that may occur while using the unit should be resolved before proceeding. When operating any machine, it is essential to have knowledge of the normal operation of the machine so that incorrect operation can be recognized. -
Page 20: Inspection Schedule
www.fortador.com...
