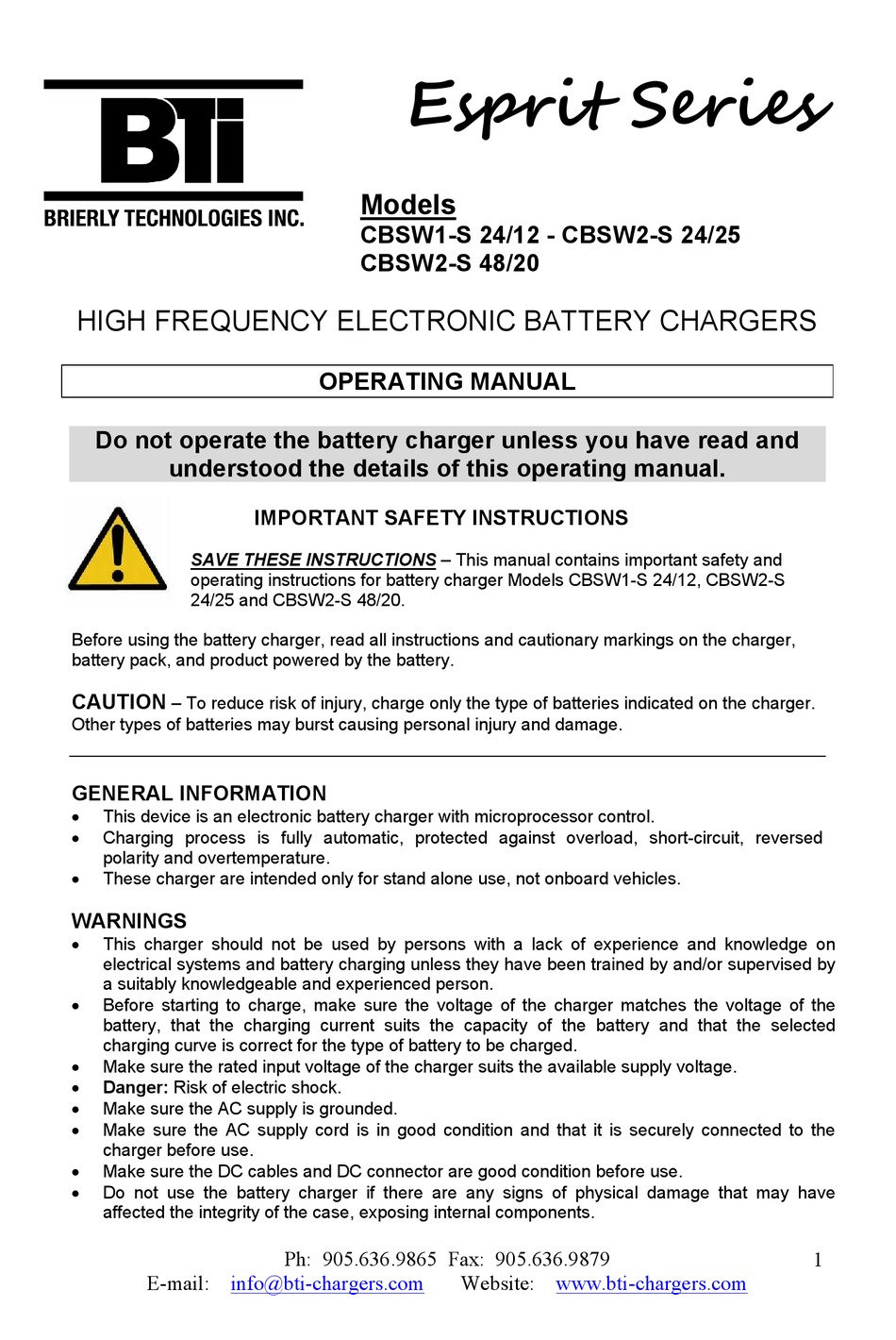

HIGH FREQUENCY ELECTRONIC BATTERY CHARGERS
Do not operate the battery charger unless you have read and
understood the details of this operating manual.
SAVE THESE INSTRUCTIONS – This manual contains important safety and
operating instructions for battery charger Models CBSW1-S 24/12, CBSW2-S
24/25 and CBSW2-S 48/20.
Before using the battery charger, read all instructions and cautionary markings on the charger,
battery pack, and product powered by the battery.
CAUTION
– To reduce risk of injury, charge only the type of batteries indicated on the charger.
Other types of batteries may burst causing personal injury and damage.

GENERAL INFORMATION

This device is an electronic battery charger with microprocessor control.
Charging process is fully automatic, protected against overload, short-circuit, reversed
polarity and overtemperature.
These charger are intended only for stand alone use, not onboard vehicles.

WARNINGS

This charger should not be used by persons with a lack of experience and knowledge on
electrical systems and battery charging unless they have been trained by and/or supervised by
a suitably knowledgeable and experienced person.
Before starting to charge, make sure the voltage of the charger matches the voltage of the
battery, that the charging current suits the capacity of the battery and that the selected
charging curve is correct for the type of battery to be charged.
Make sure the rated input voltage of the charger suits the available supply voltage.
Danger: Risk of electric shock.
Make sure the AC supply is grounded.
Make sure the AC supply cord is in good condition and that it is securely connected to the
charger before use.
Make sure the DC cables and DC connector are good condition before use.
Do not use the battery charger if there are any signs of physical damage that may have
affected the integrity of the case, exposing internal components.
E-mail:
info@bti-chargers.com
Esprit Series
Models
CBSW1-S 24/12 - CBSW2-S 24/25
CBSW2-S 48/20
OPERATING MANUAL

IMPORTANT SAFETY INSTRUCTIONS

Ph: 905.636.9865 Fax: 905.636.9879
Website:
www.bti-chargers.com
1
